Pressure Regulating Solenoid: Locations

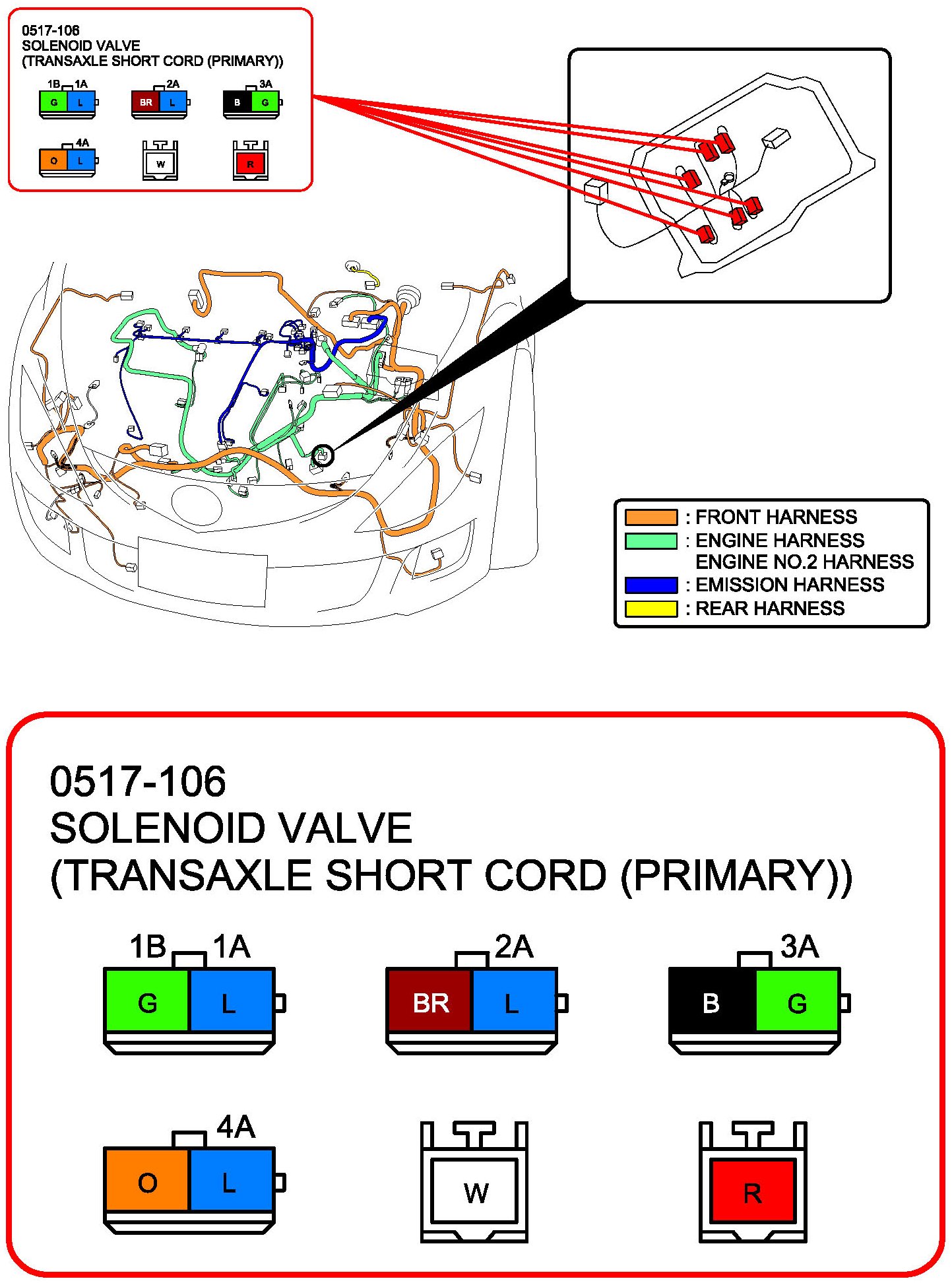

Solenoid Valve (Transaxle Short Cord (Primary)):

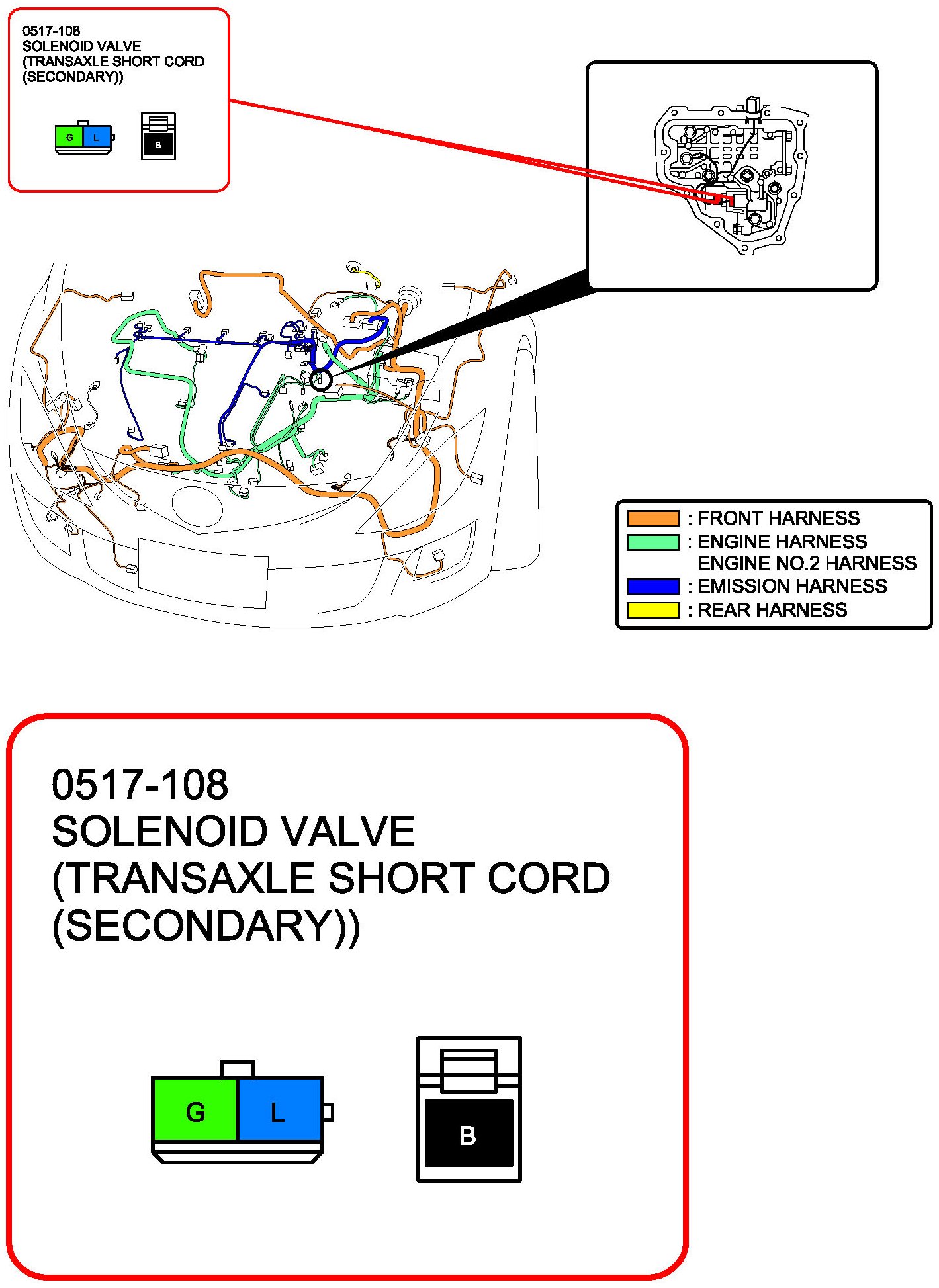

Solenoid Valve (Transaxle Short Cord (Secondary)):
