Cruise Control Module: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

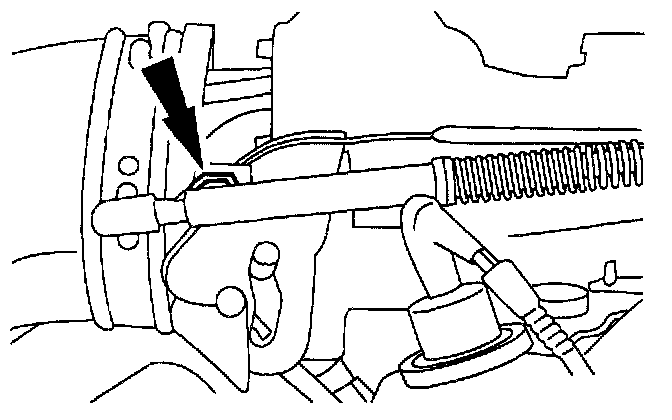

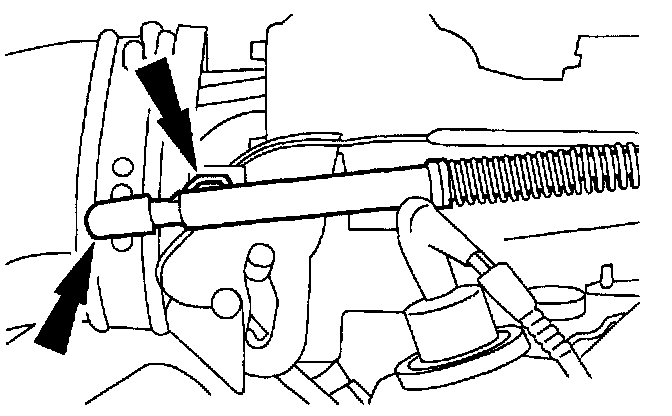

2. Remove the speed control actuator cable from the throttle body.
- Lift the clip to release the cable.
3. Remove the LH wheel and tire.

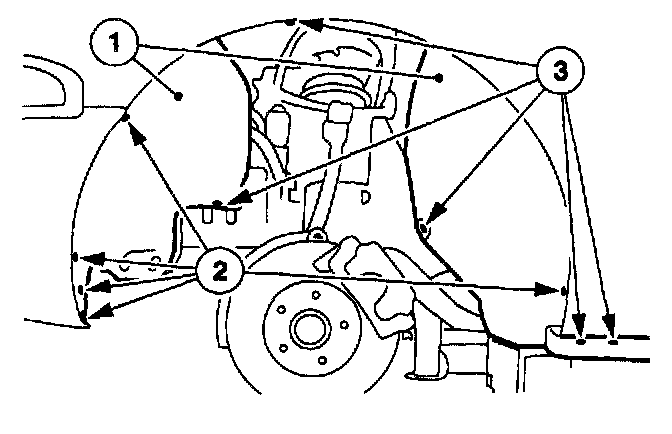

4. Remove the LH front fender splash shield.
1 Remove the pushpins.
2 Remove the retaining screws.
3 Remove the LH front fender splash shield.

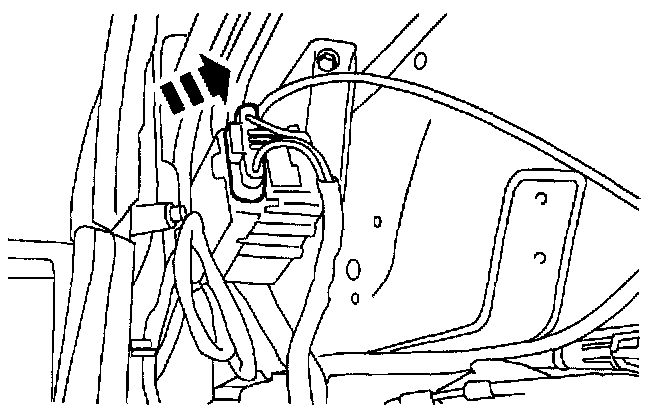

5. Disconnect the speed control servo electrical connector.

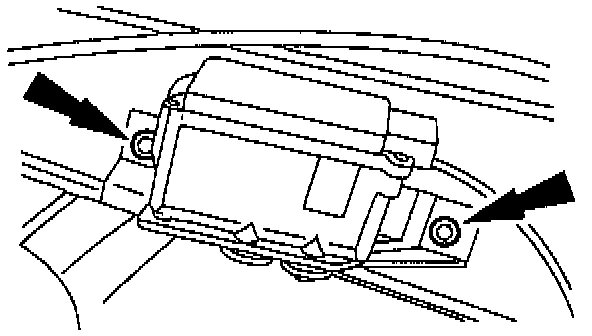

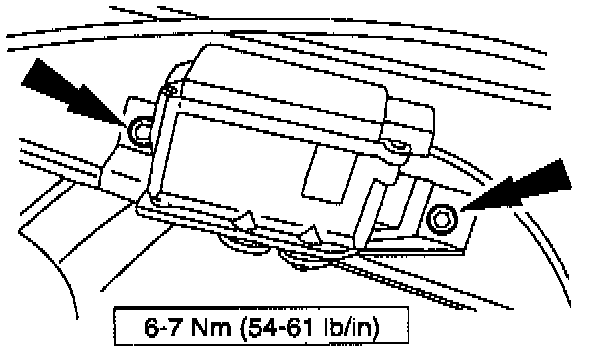

6. Lower the speed control servo.
- Remove the bolts.

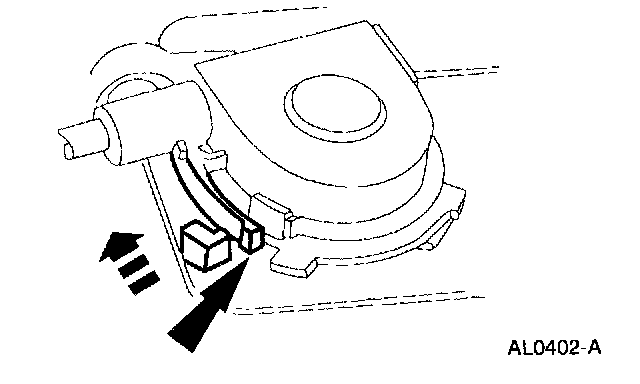

7. Depress the locking tab and rotate the speed control actuator cable cap to remove.

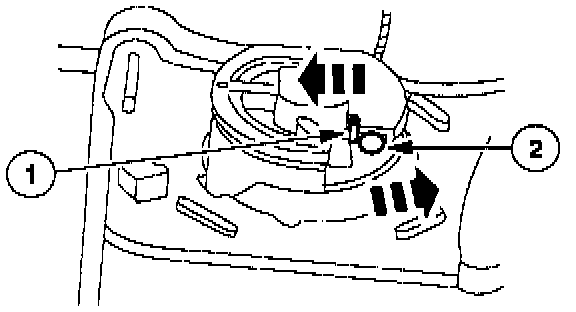

8. Disconnect the speed control actuator cable from the speed control servo pulley to remove the speed control servo.
1 Gently push the retaining spring.
2 Remove the speed control cable slug.

INSTALLATION

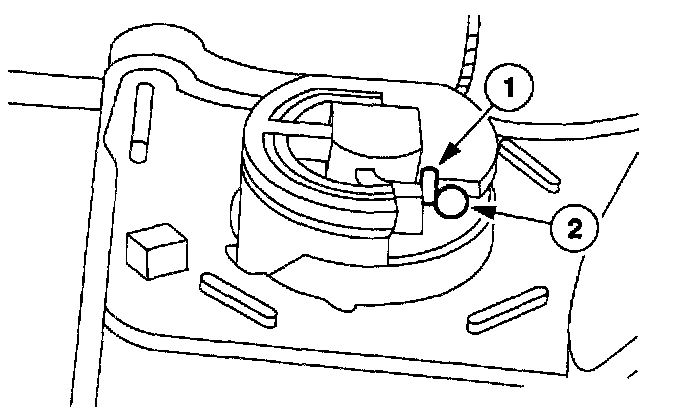

1. Insert the speed control cable slug into the speed control servo pulley slot.
1 Gently push the retaining spring.
2 Insert the speed control cable slug into the speed control servo pulley slot.







2. Release the compressed spring while aligning the speed control actuator cable cap tabs with the slots in the speed control servo housing.

NOTE:
- Ensure the rubber seal is fully seated onto the speed control actuator cable cap.
- Incorrect wrapping of the speed control actuator cable around the speed control servo pulley may result in a high idle condition.







3. Rotate the speed control actuator cable cap until the locking arm engages.







4. Install the speed control servo.

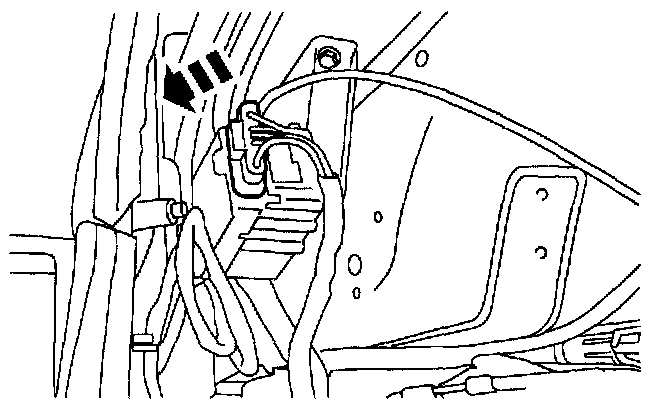

5. Connect the speed control servo electrical connector.

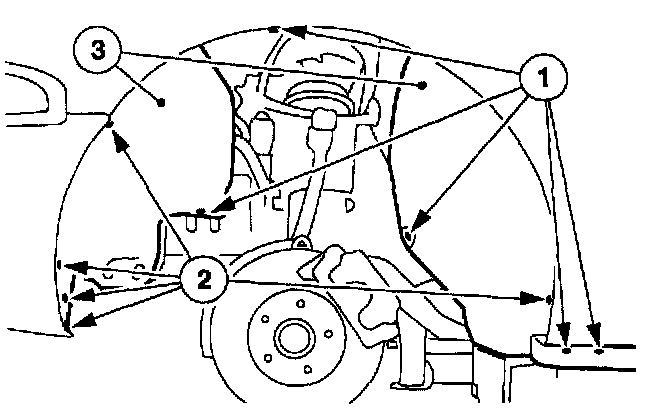

6. Install the LH front fender splash shield.
1 Install the splash shield.
2 Install the screws.
3 Install the pushpins.
7. Install the LH wheel and tire.







8. Install the speed control actuator cable to the throttle body.







9. Reconnect the battery ground cable.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
