Home >> Kia Truck >> 2007 >> Sportage 4WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case

Transfer Case

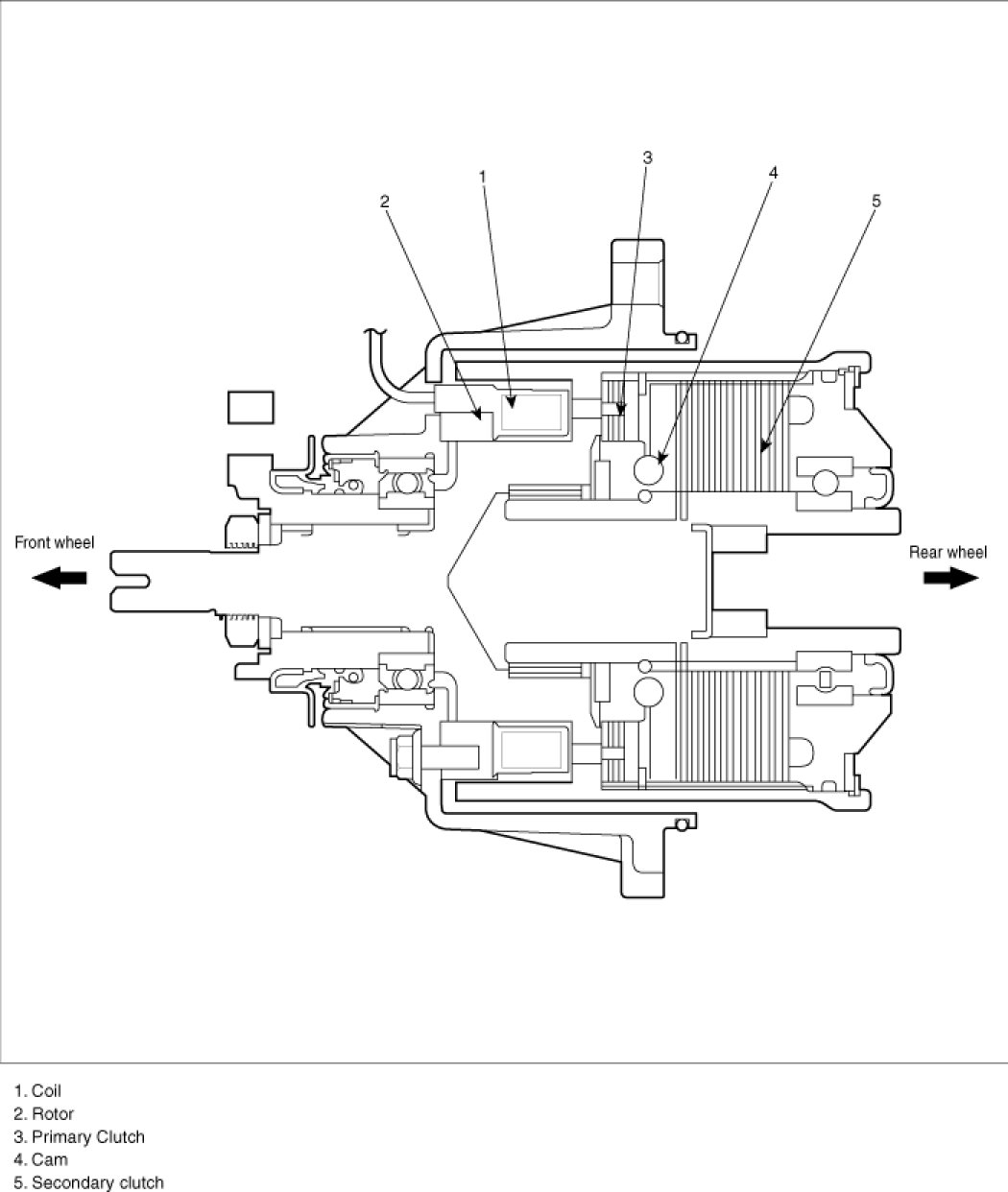

COMPONENTS(1)

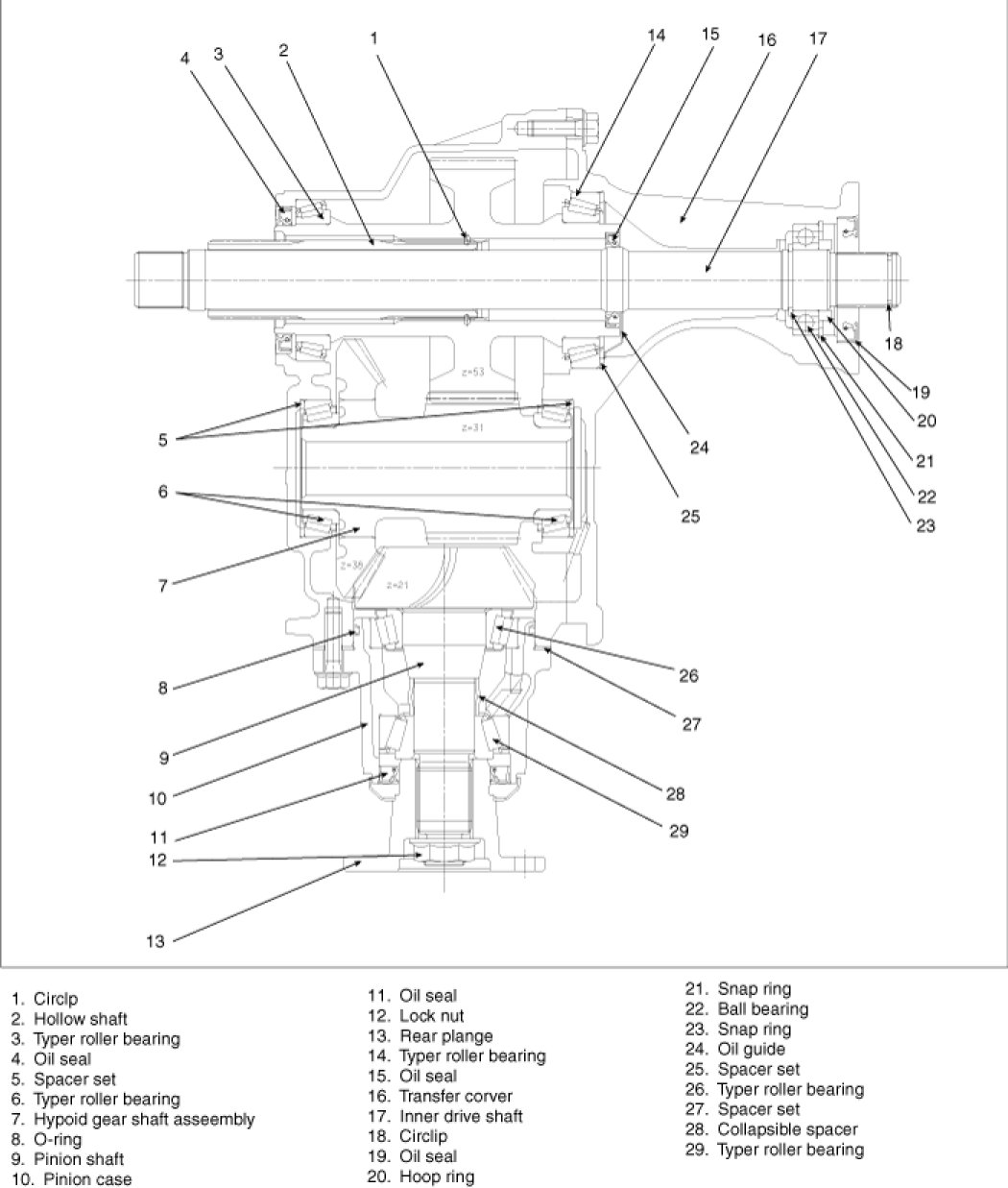

COMPONENTS(2)
