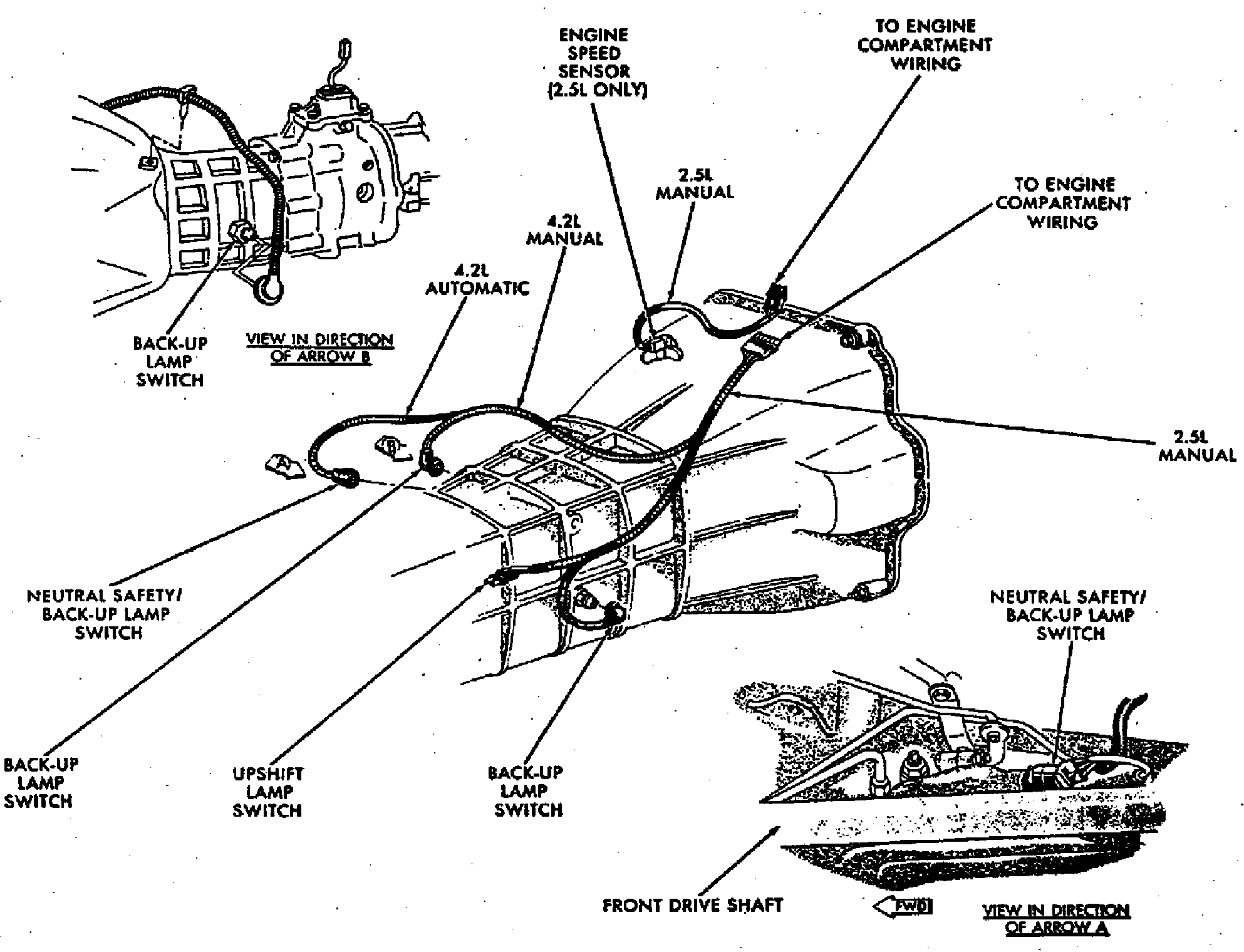

Engine Speed Sensor: Locations

Transmission Components:

Lower LH Side Of Engine

Engine Components.:

Lower LH Side Of Engine

Applicable to: 4-150/2.5L Engine
