Variable Valve Timing Solenoid: Diagrams

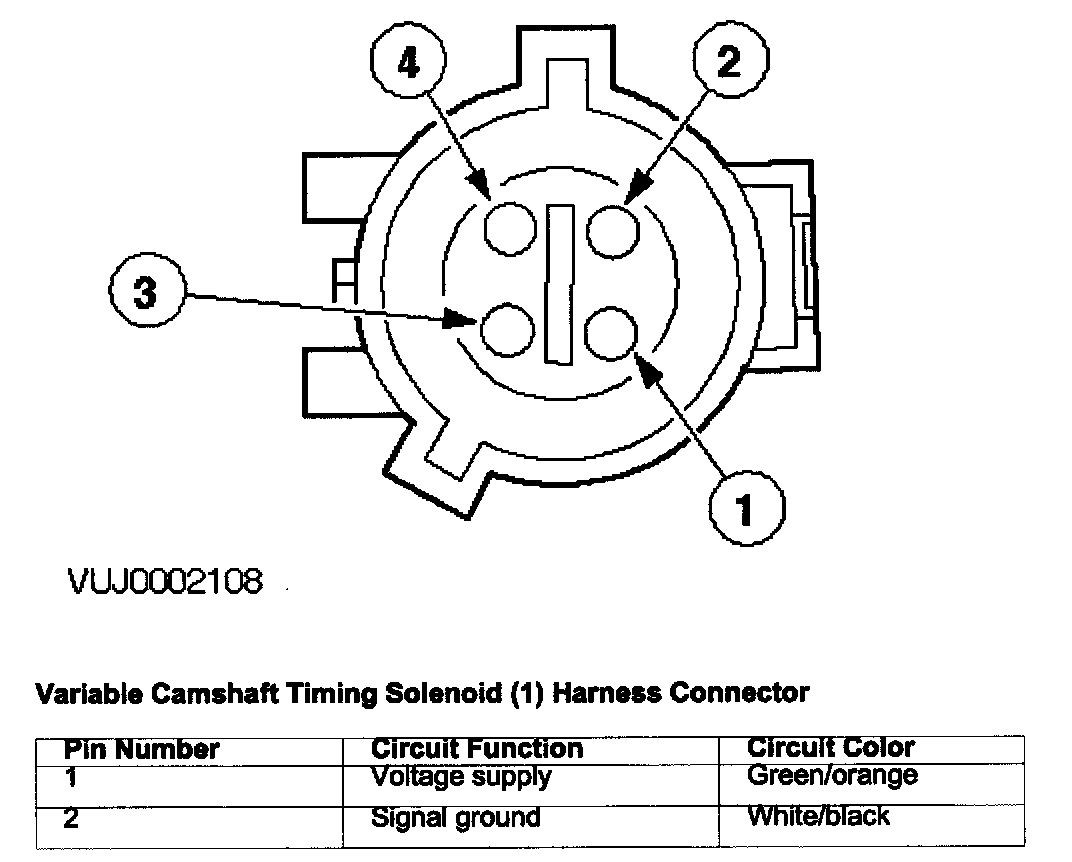

Variable Camshaft Timing Solenoid 1 Harness Connector:

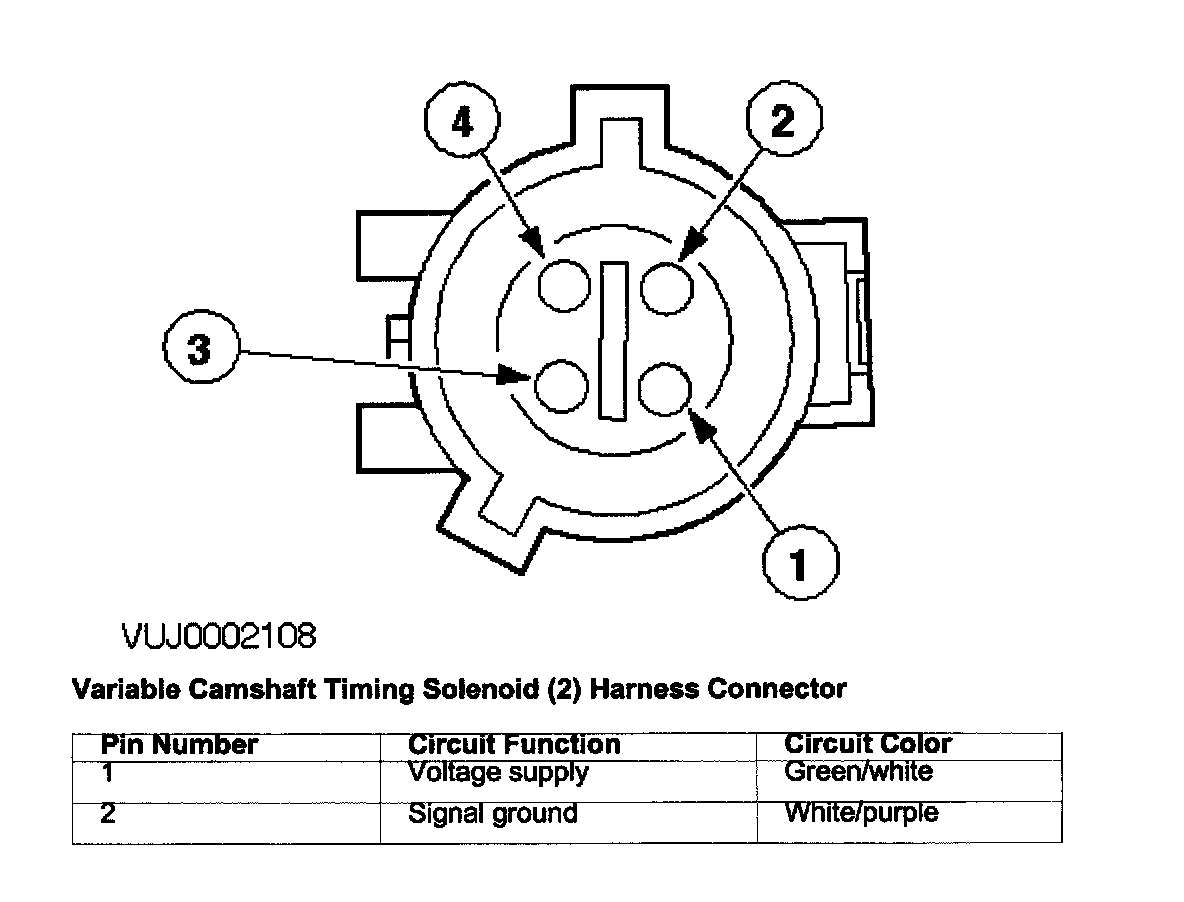

Variable Camshaft Timing Solenoid 2 Harness Connector:
