Service Data and Specifications

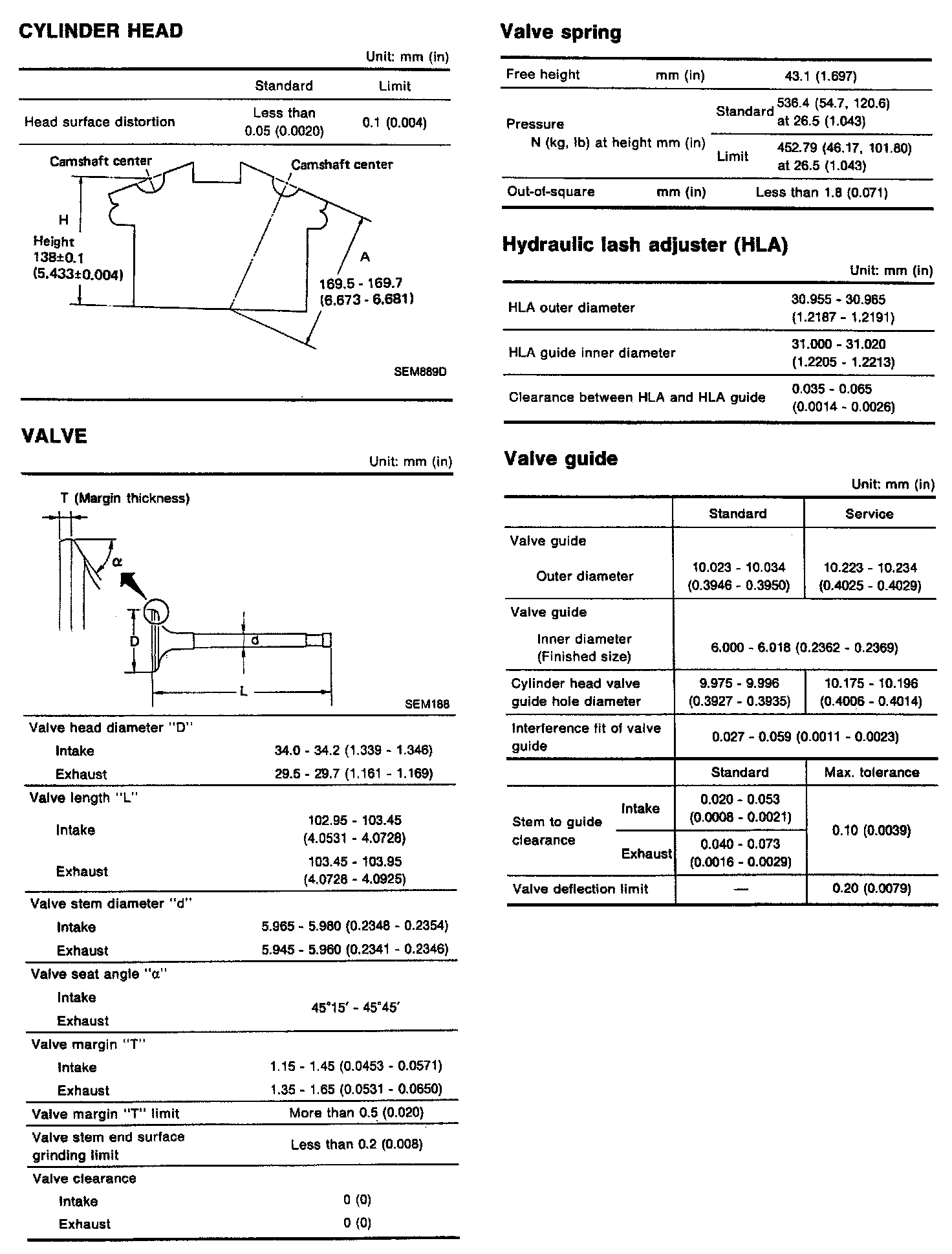

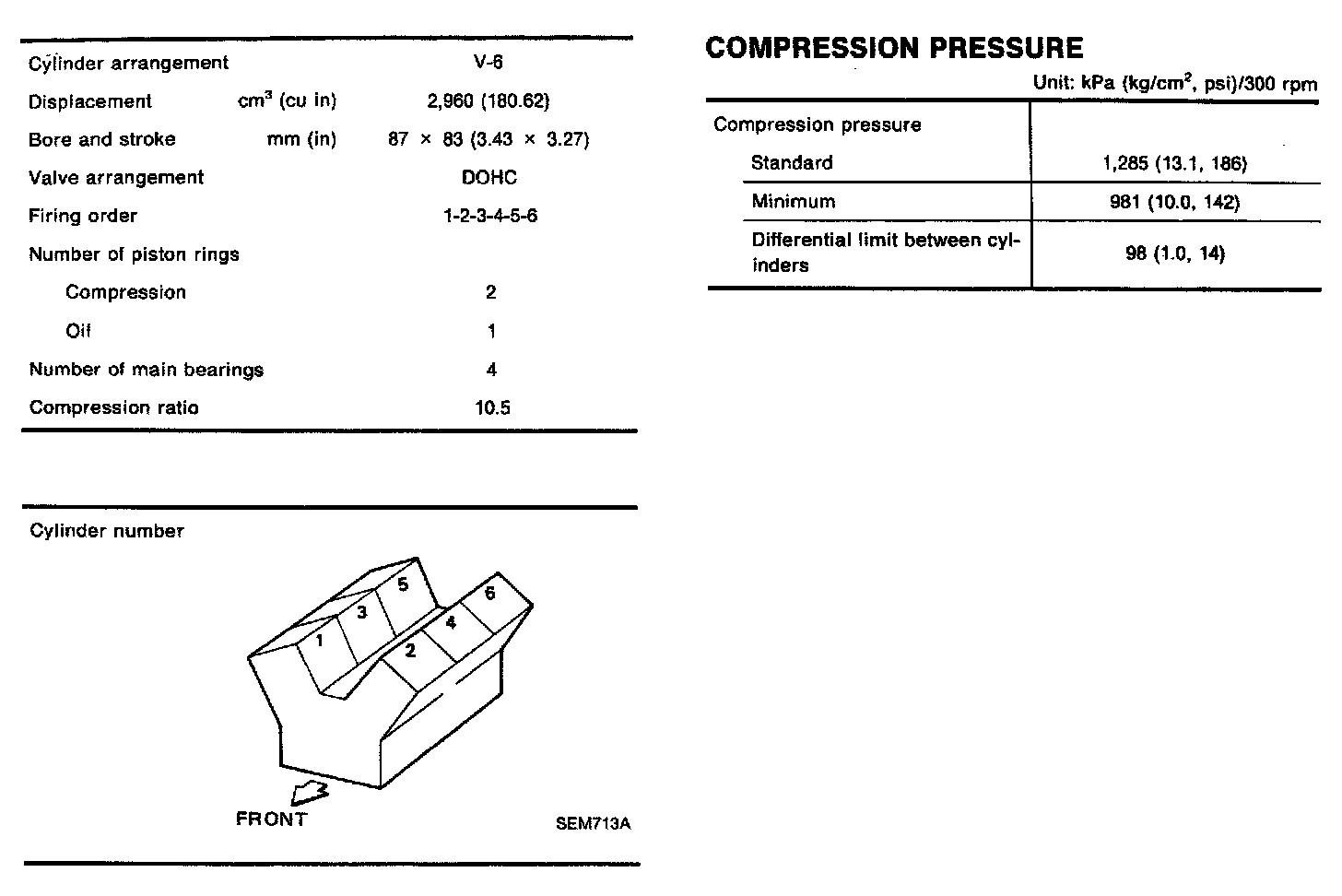

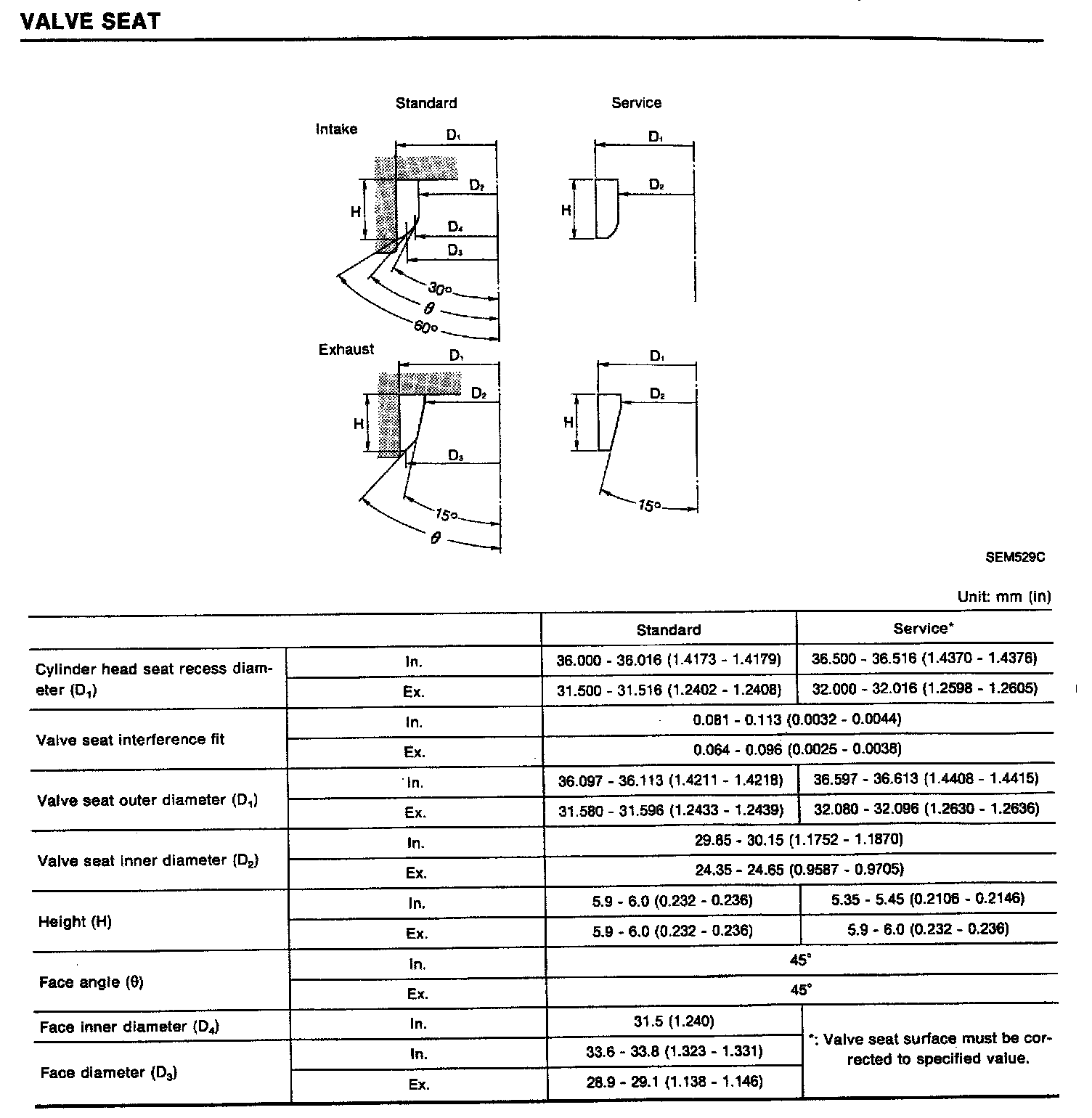

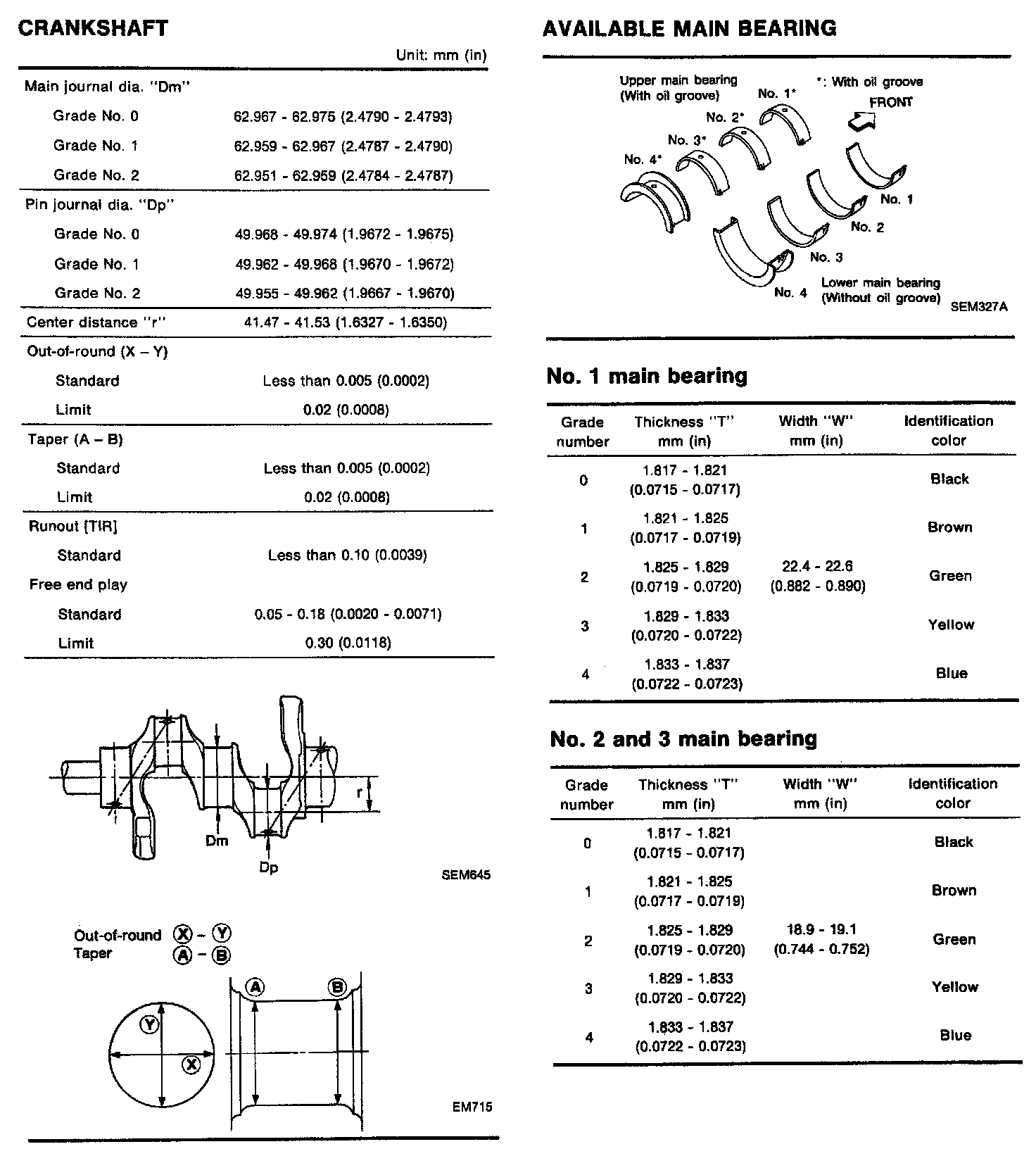

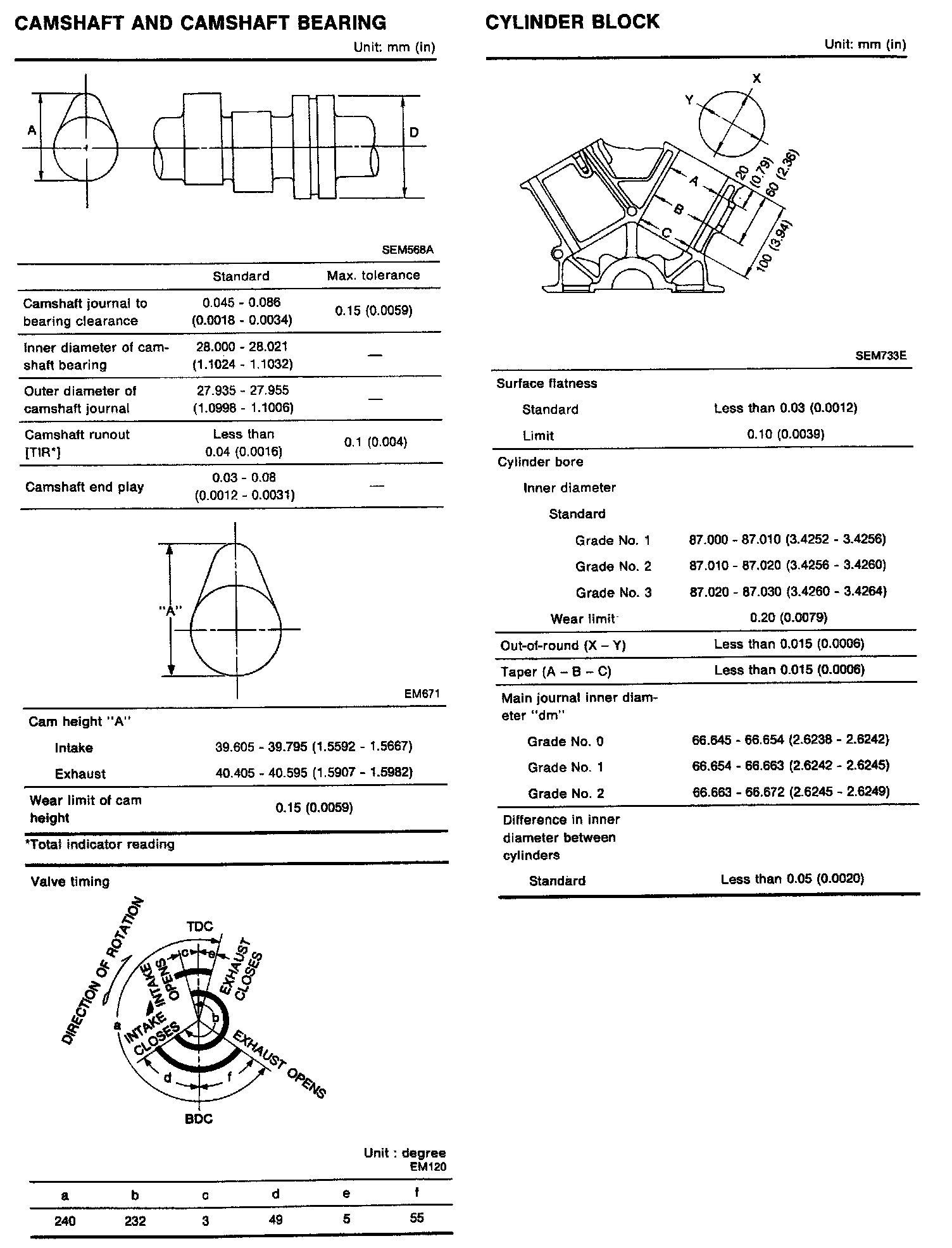

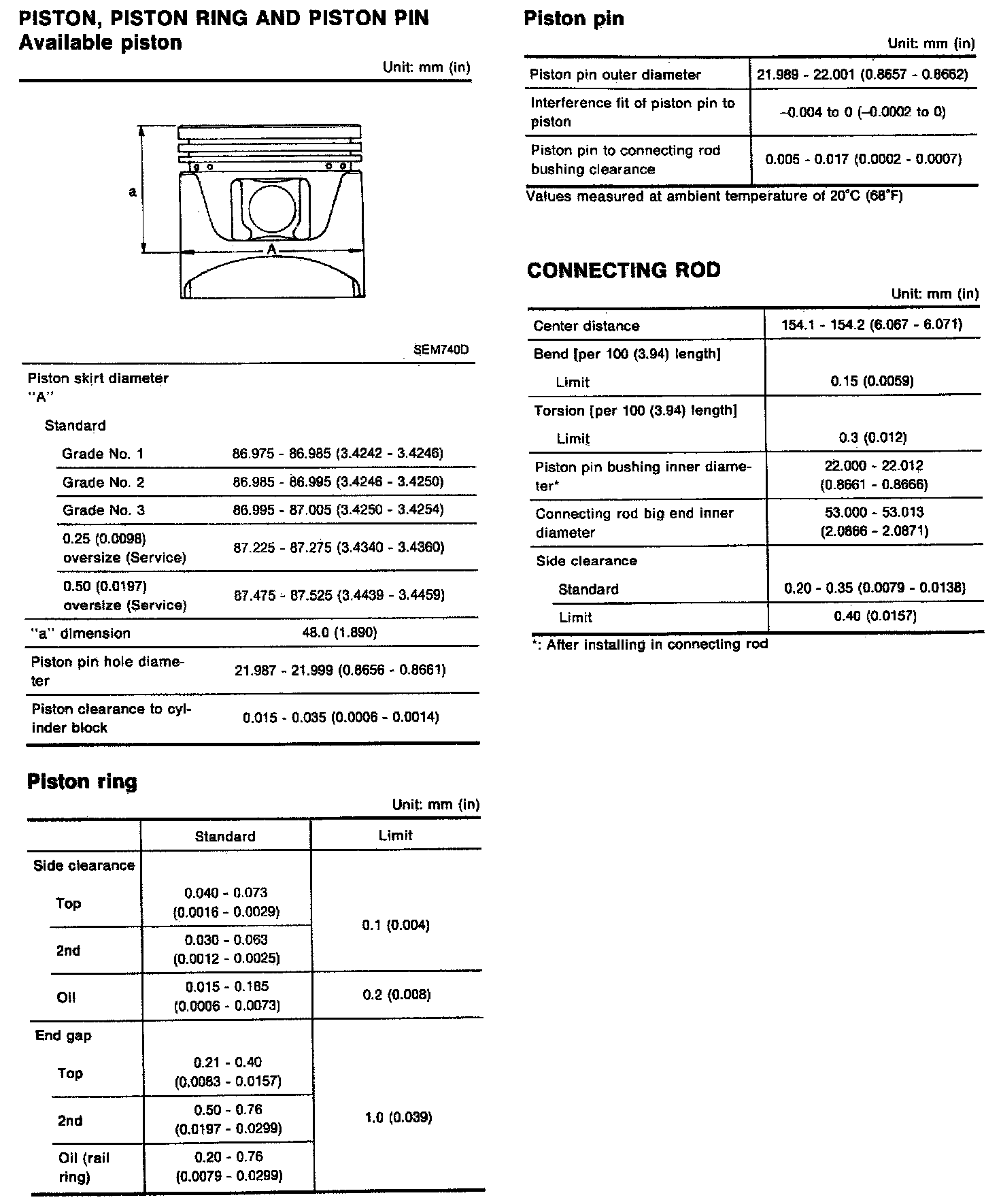

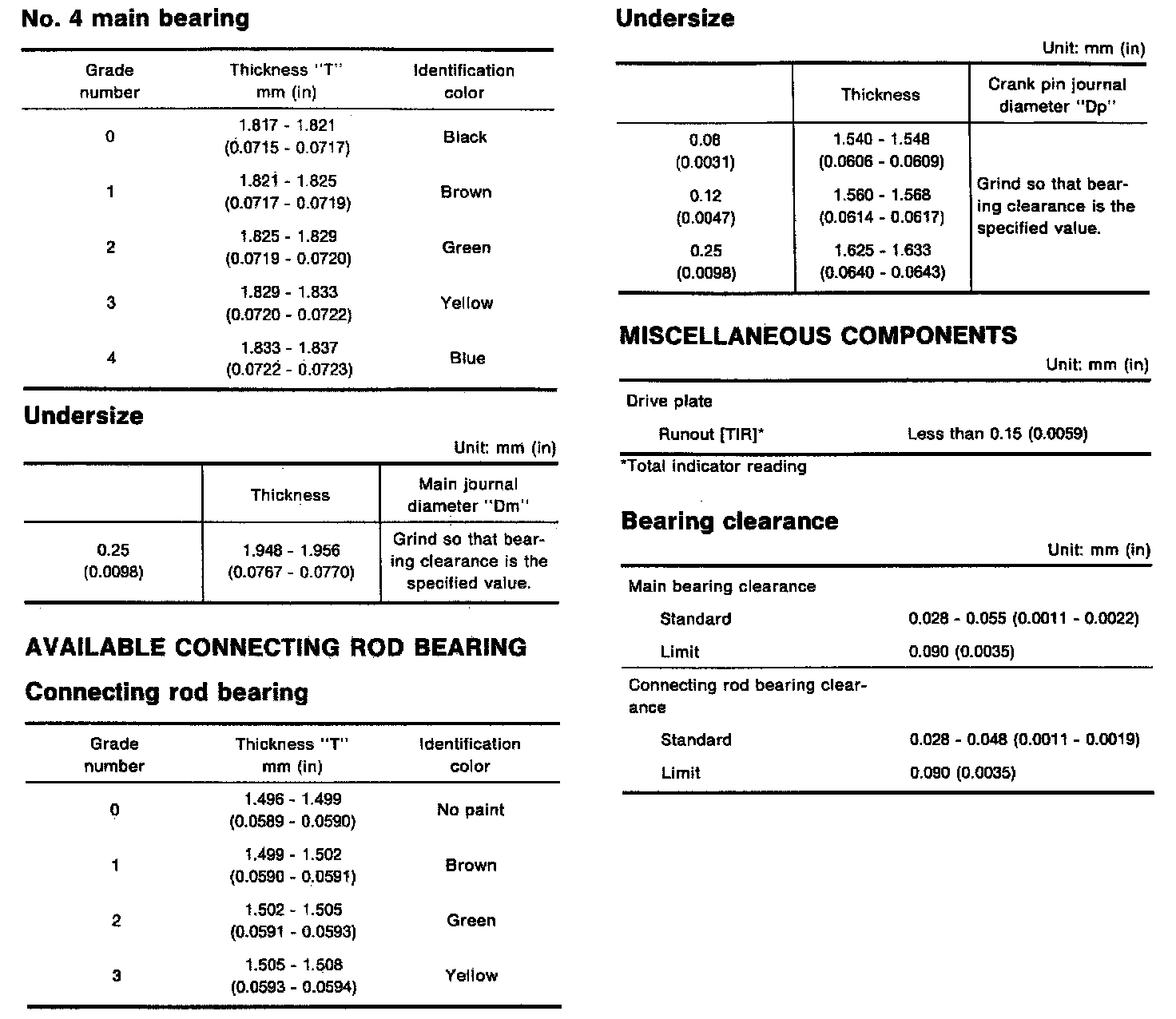

ENGINE SPECIFICATIONS

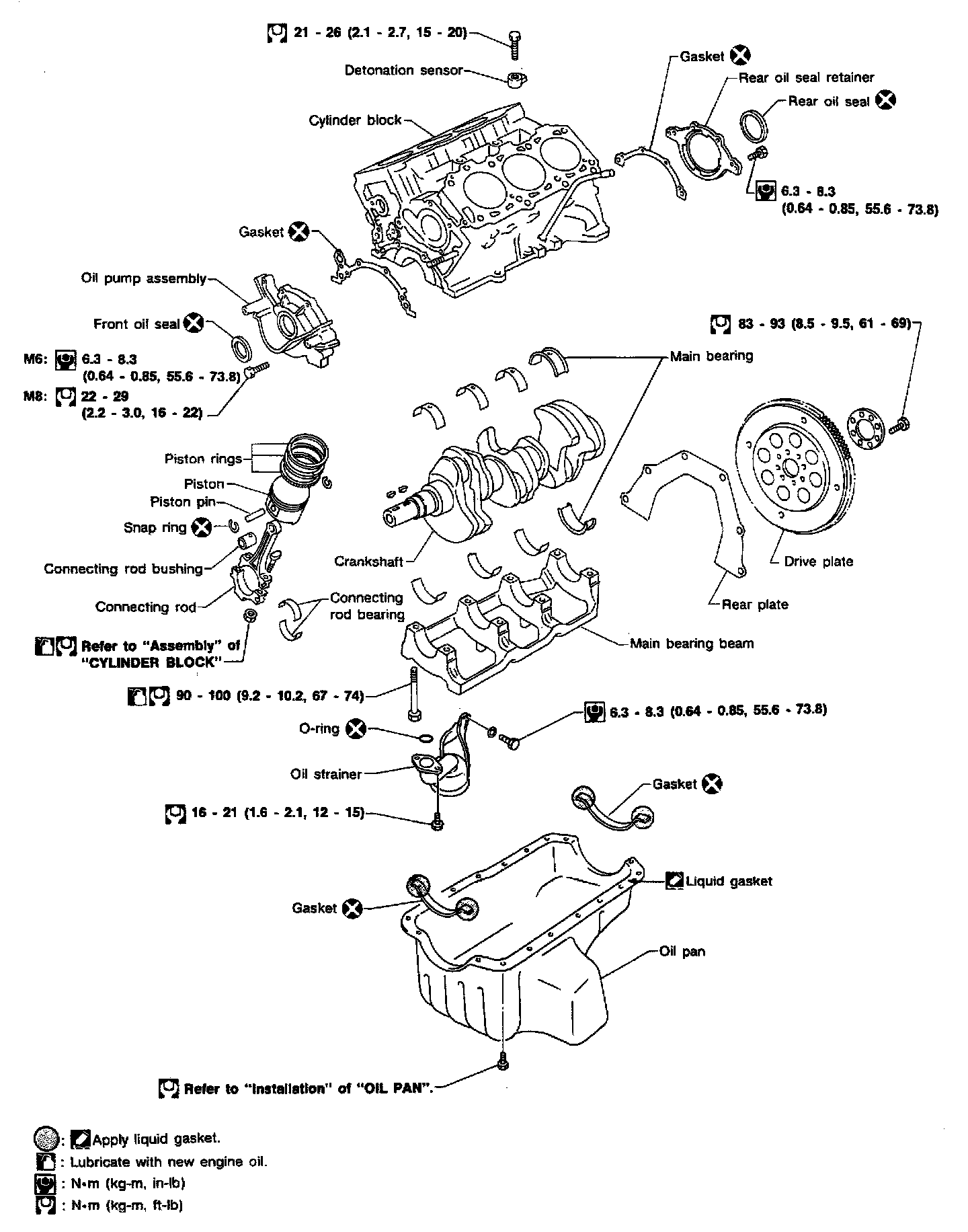

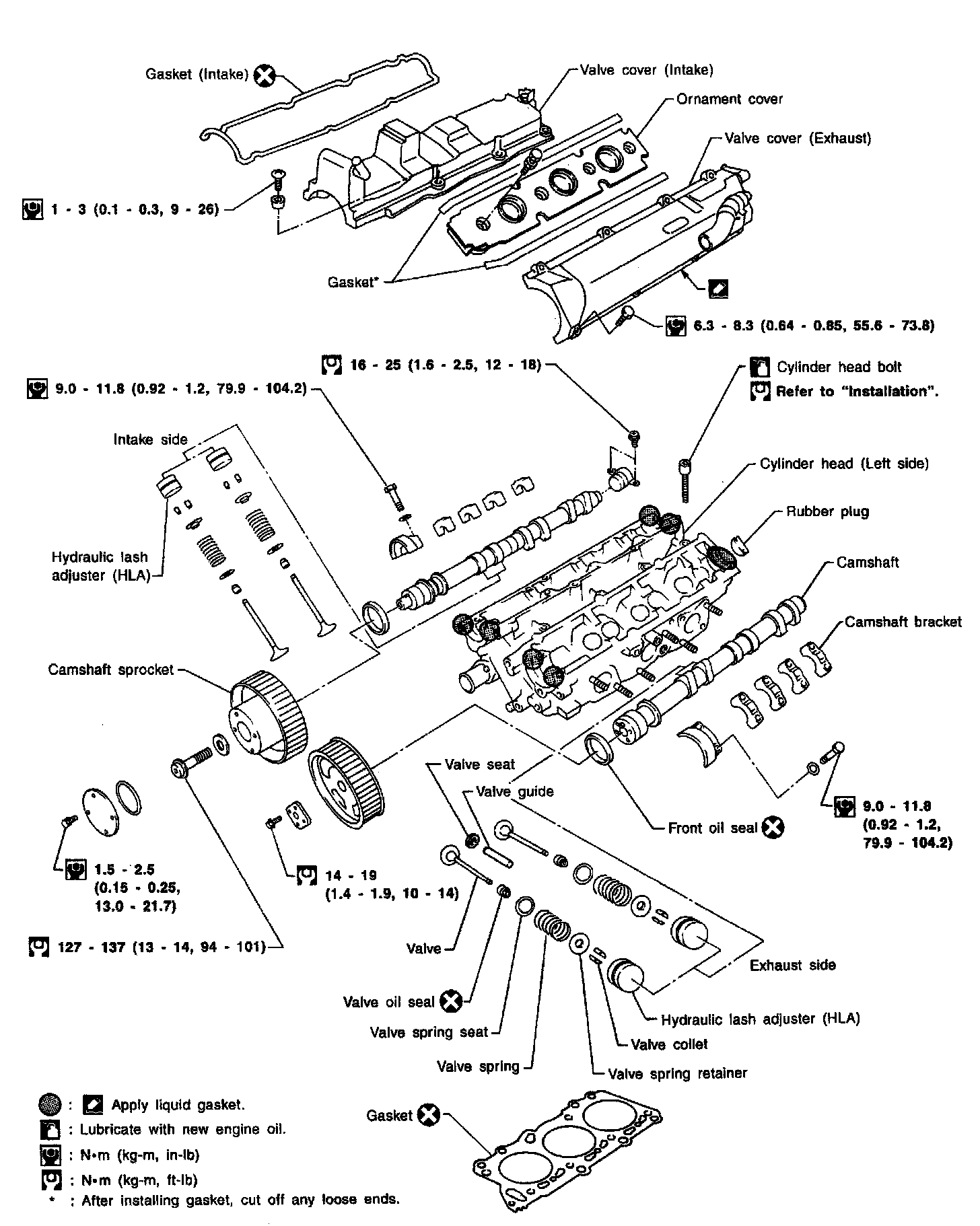

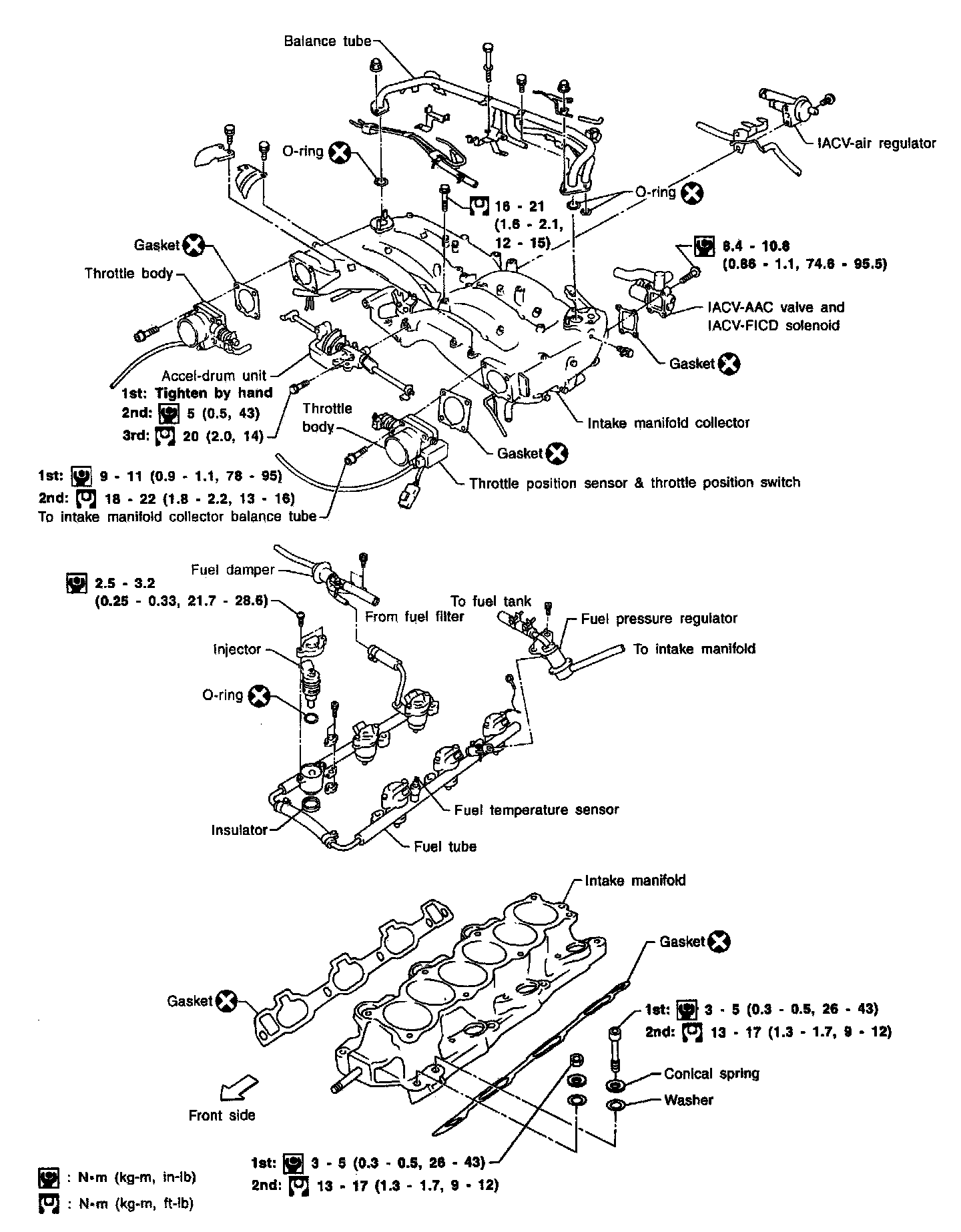

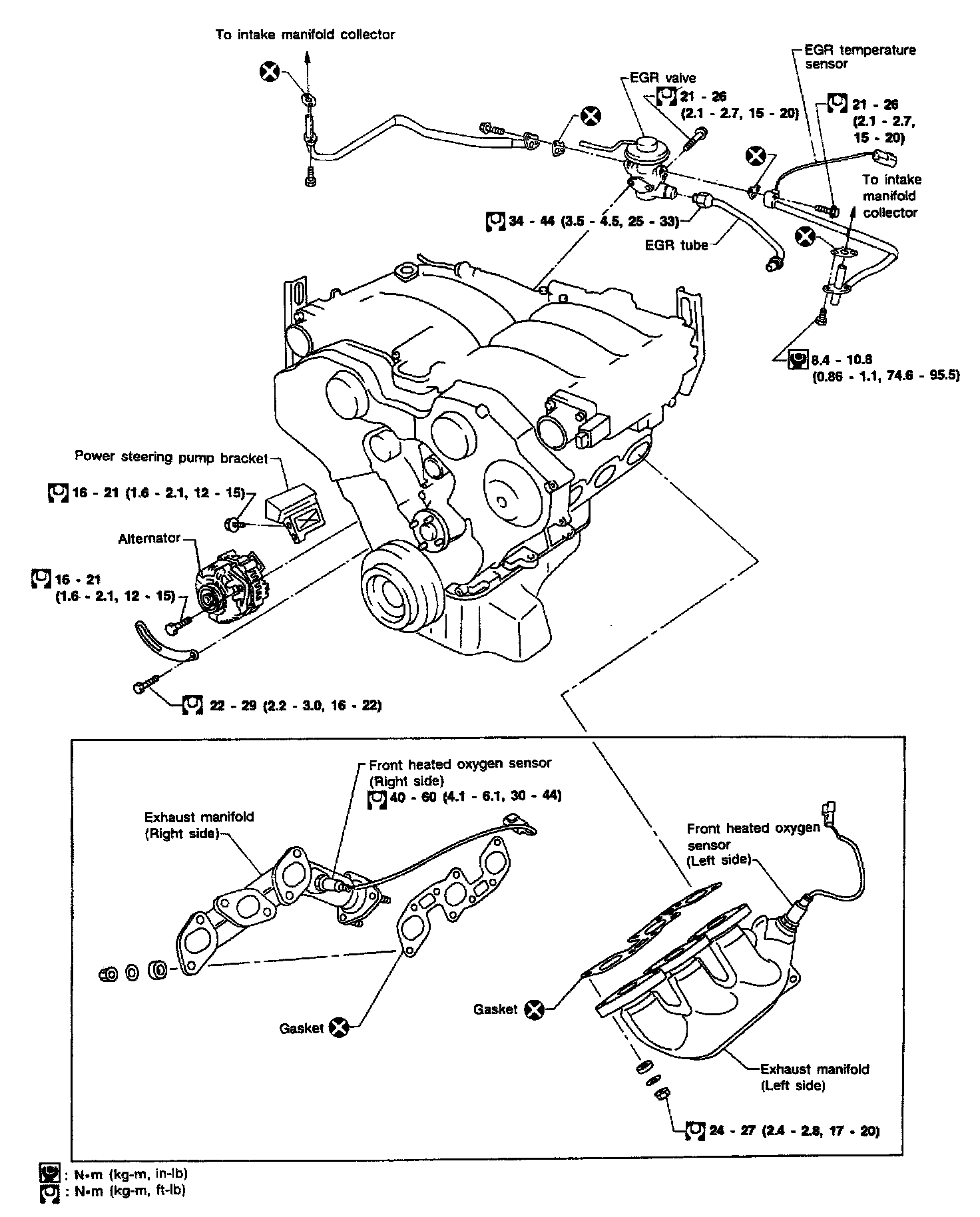

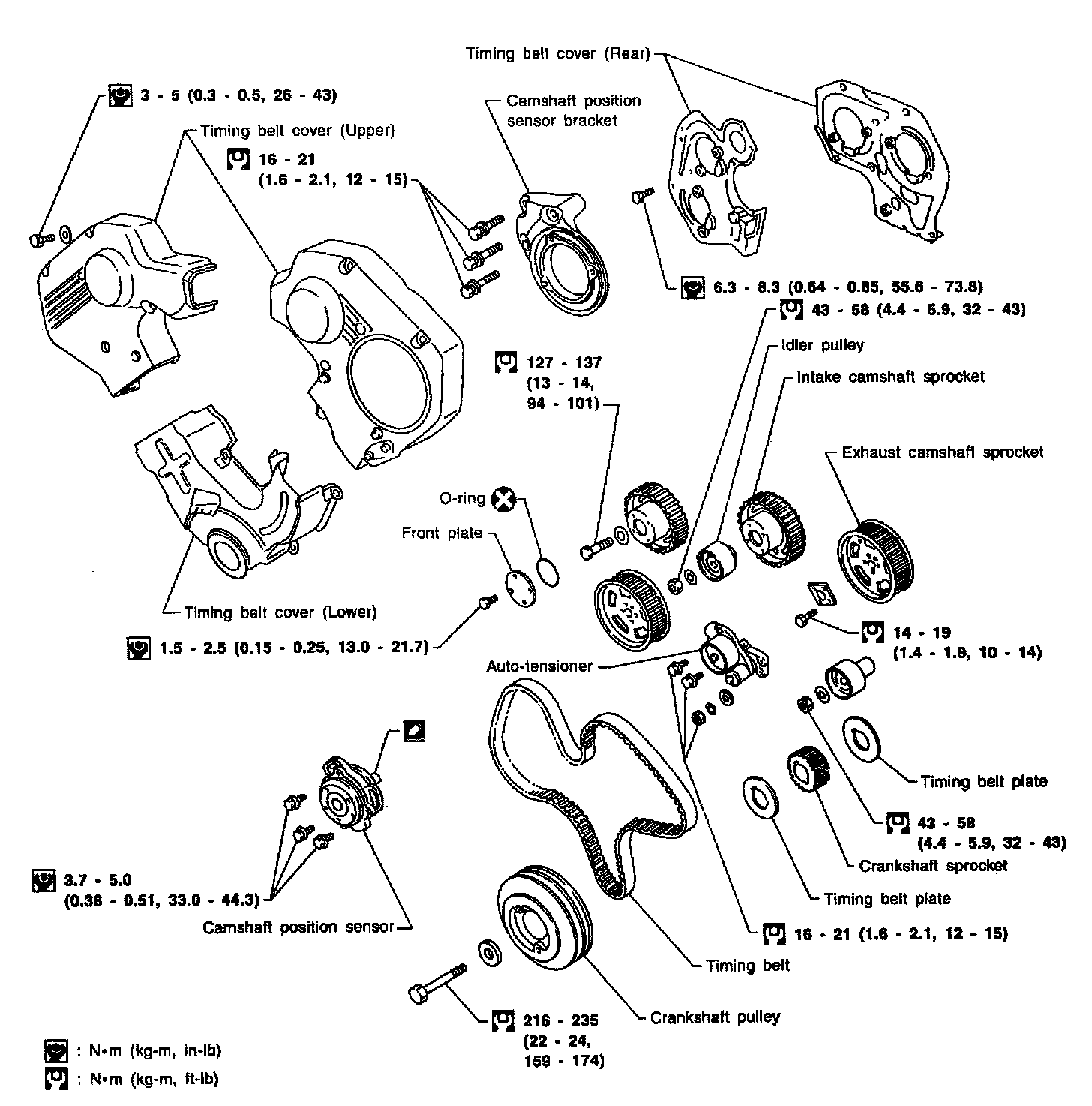

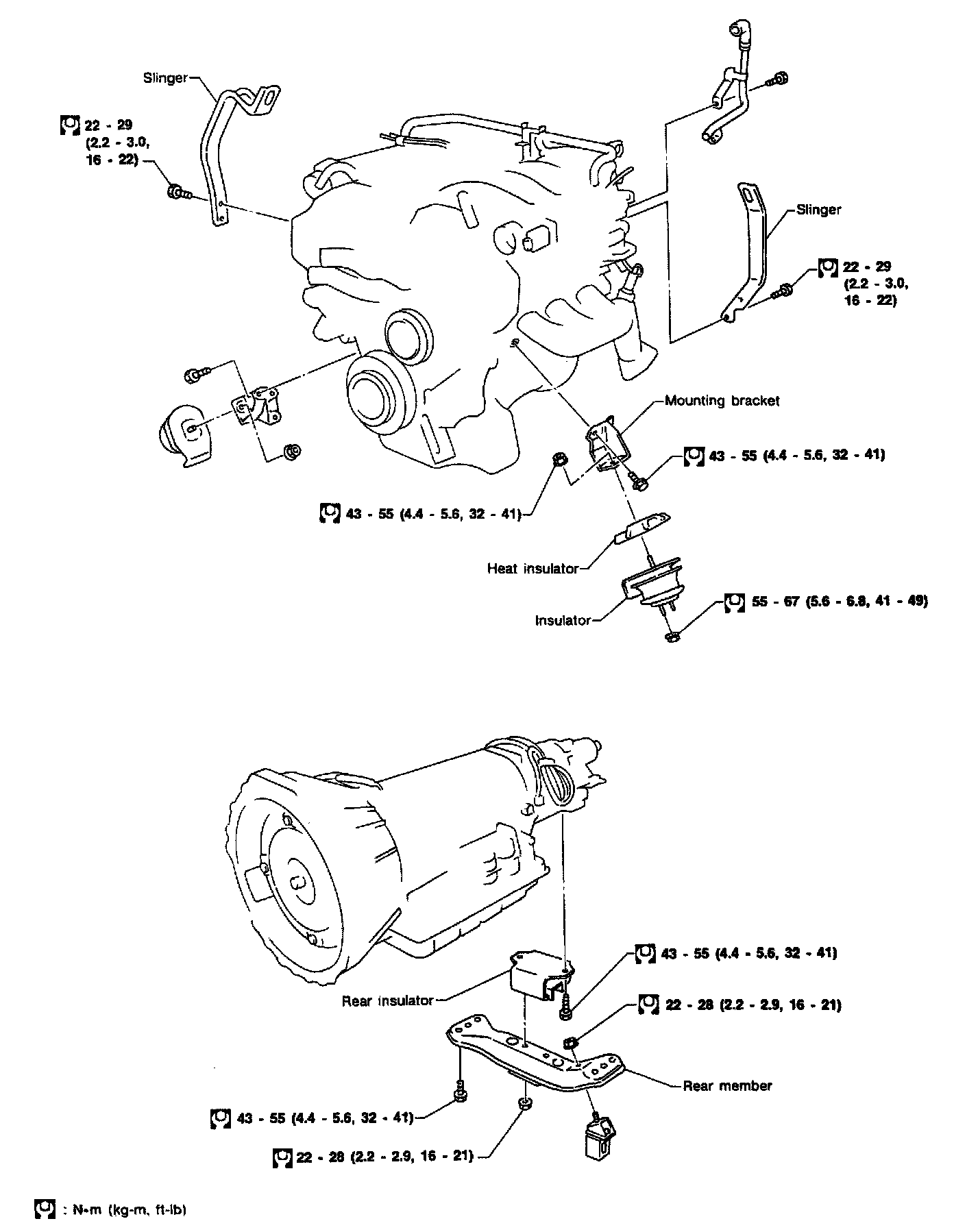

TIGHTENING SPECIFICATIONS

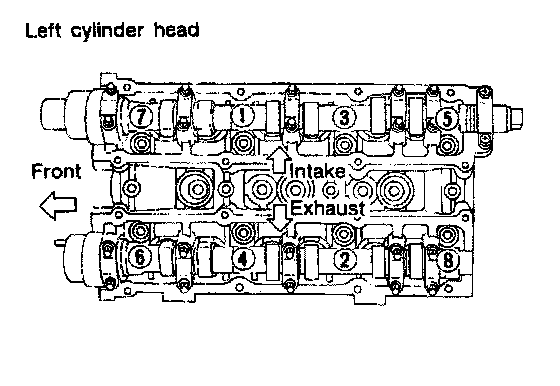

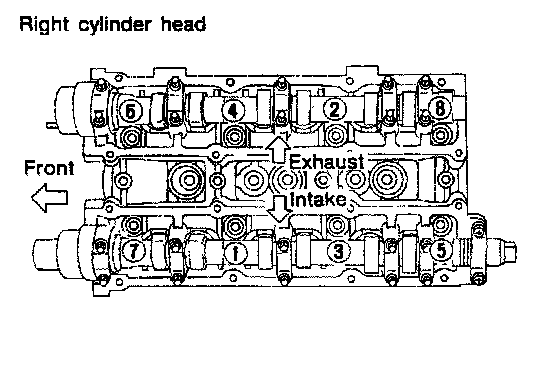

CAMSHAFT TIGHTENING SEQUENCE

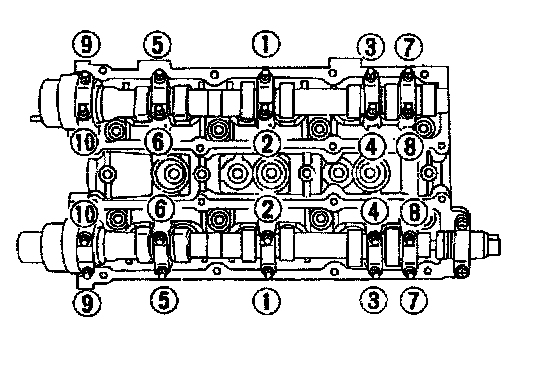

CYLINDER HEAD TIGHTENING SEQUENCE

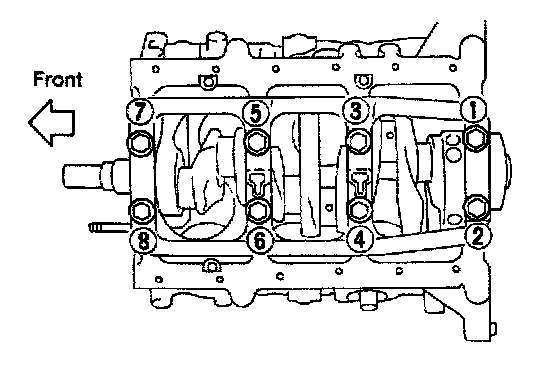

MAIN BEARING TIGHTENING SEQUENCE

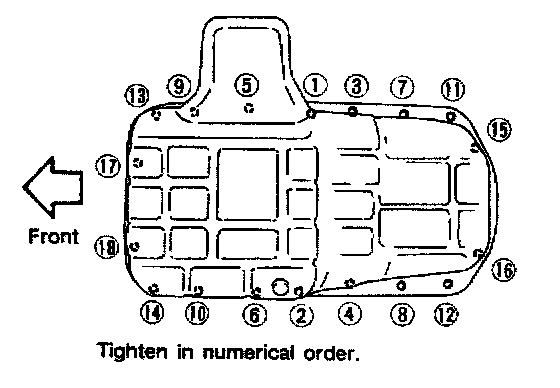

OIL PAN TIGHTENING SEQUENCE
