Time Control System

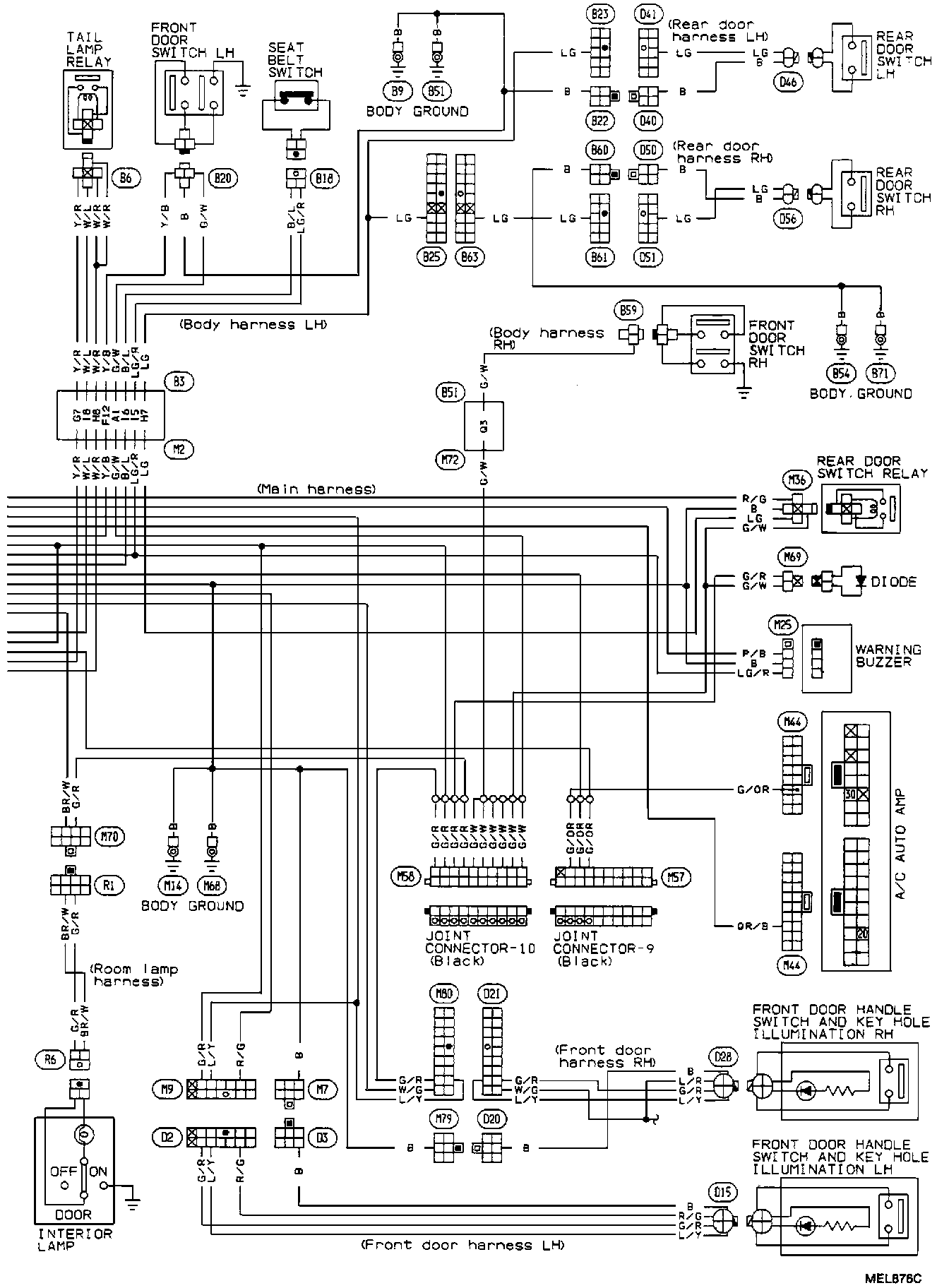

Time Control System-Wiring Diagram (Part 1 Of 2):

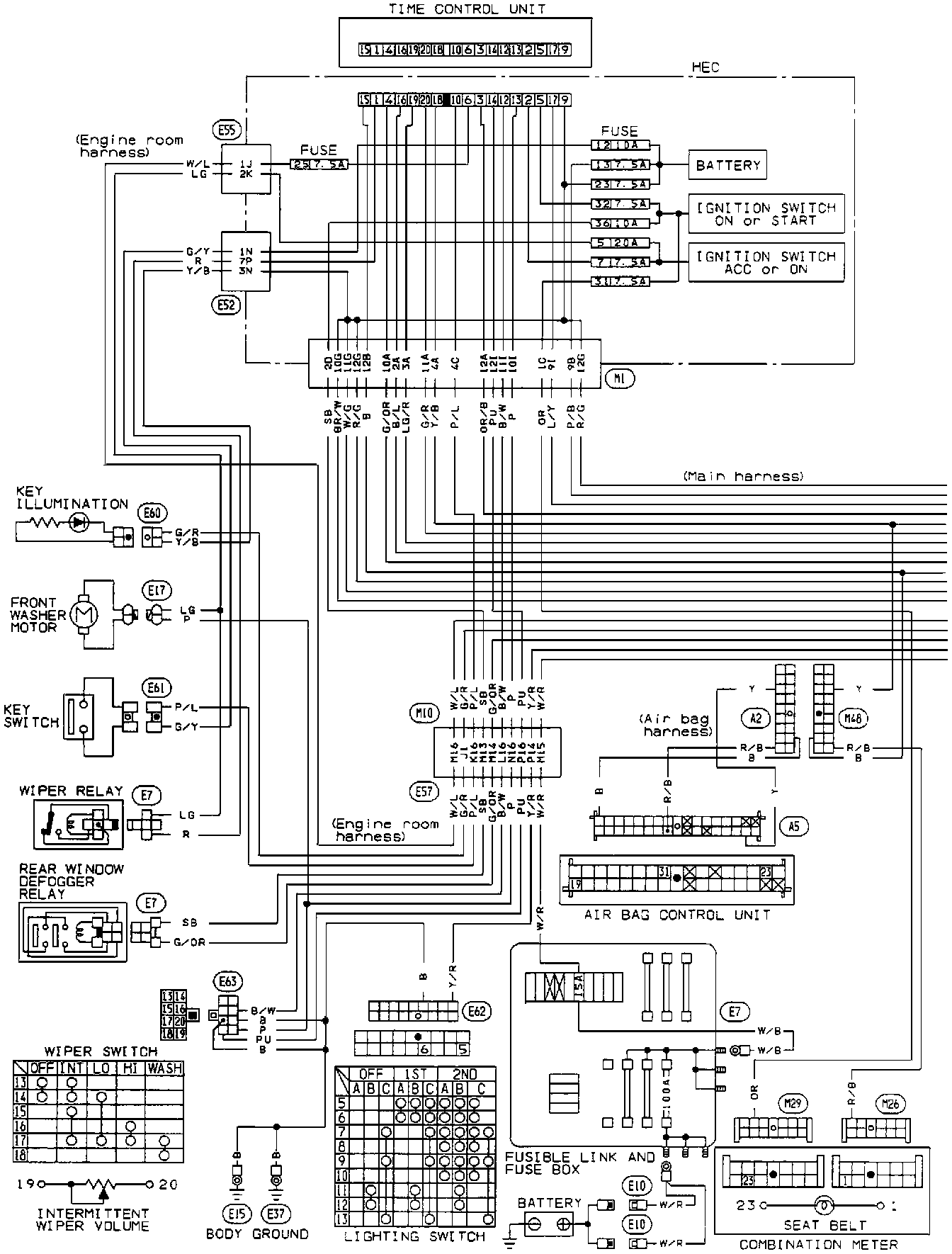

Time Control System-Wiring Diagram (Part 2 Of 2):
