Ignition Coil
>>
Testing and Inspection
>>
Harness Inspection
Harness Inspection

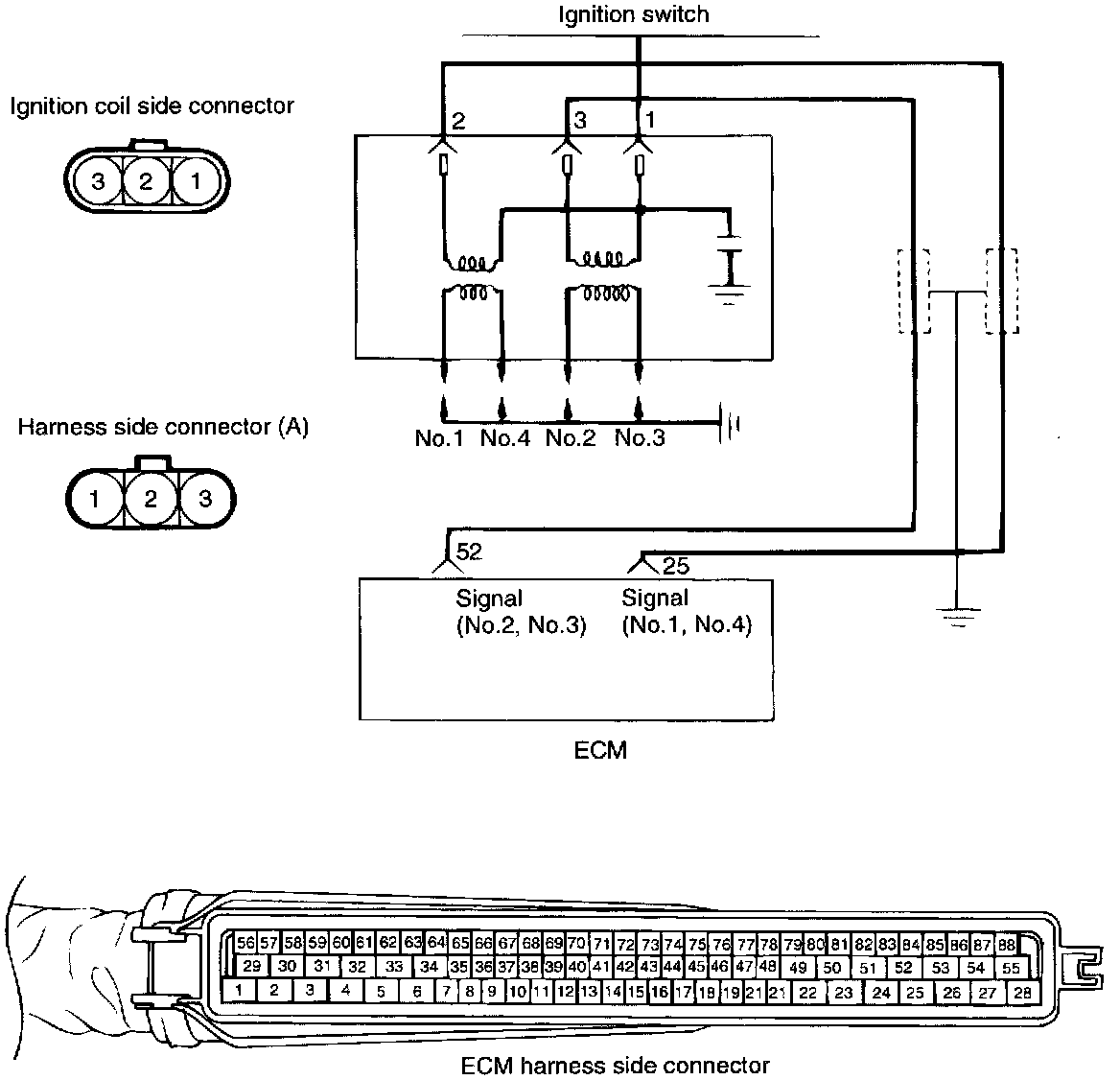

CIRCUIT DIAGRAM

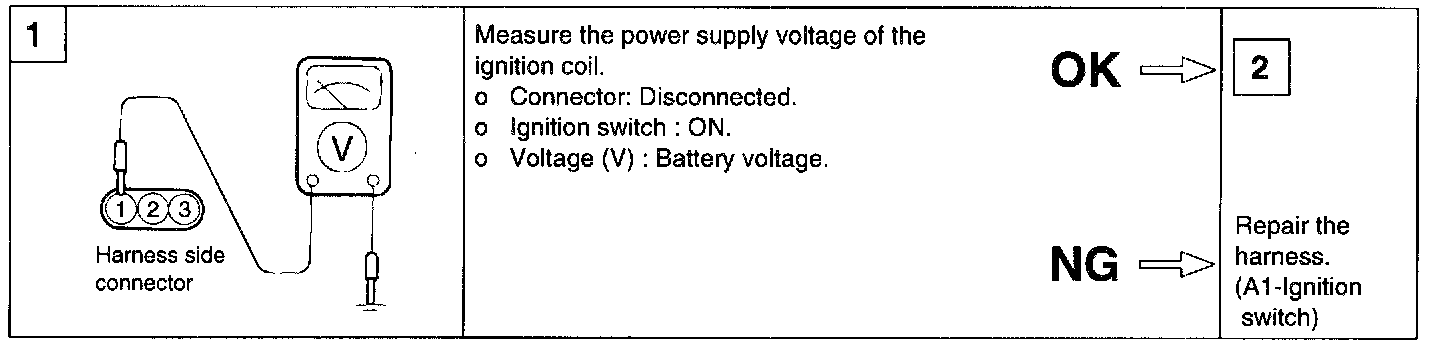

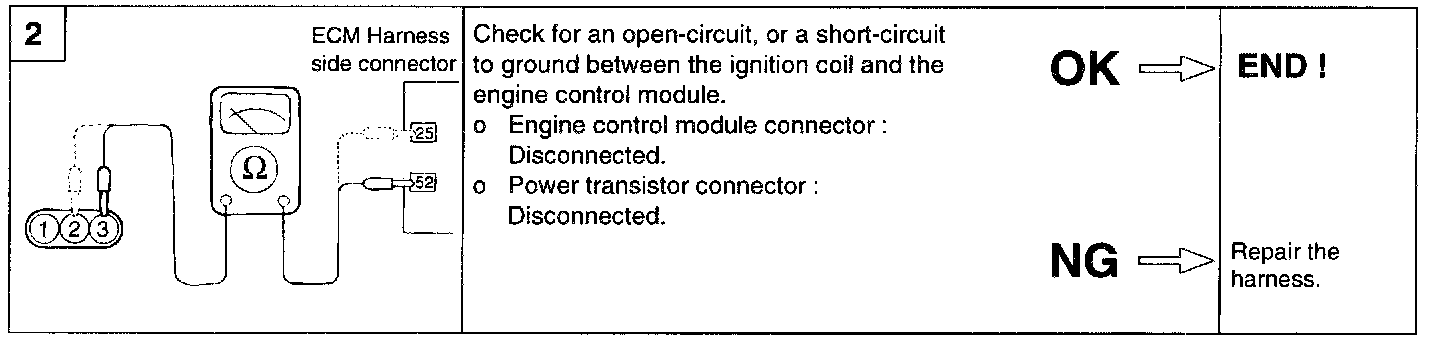

HARNESS INSPECTION PROCESS
