Honda Truck
>>
2002
>>
Passport LX 4WD V6-3165cc 3.2L DOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

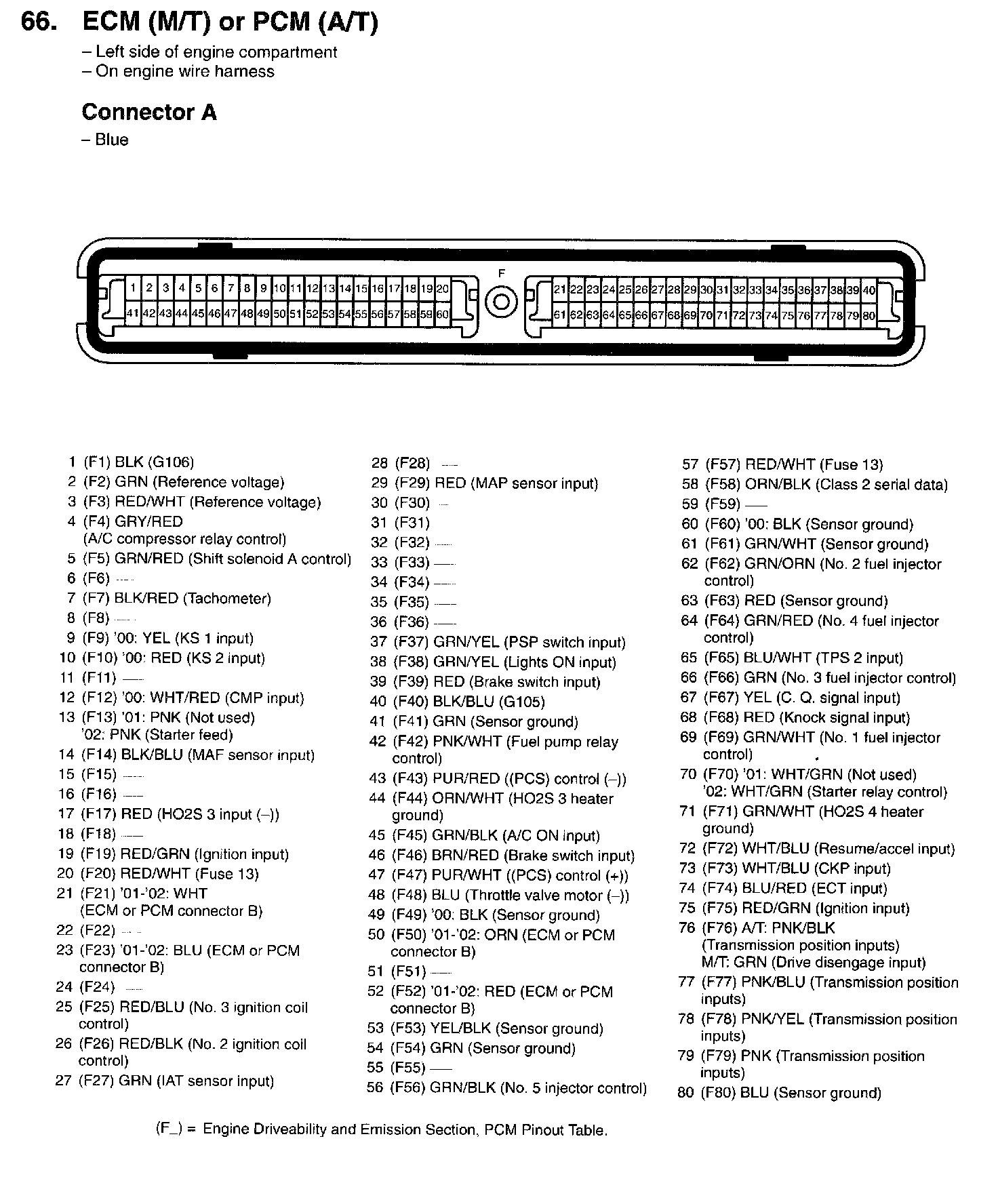

66. ECM (M/T) Or PCM (A/T) Connector A:

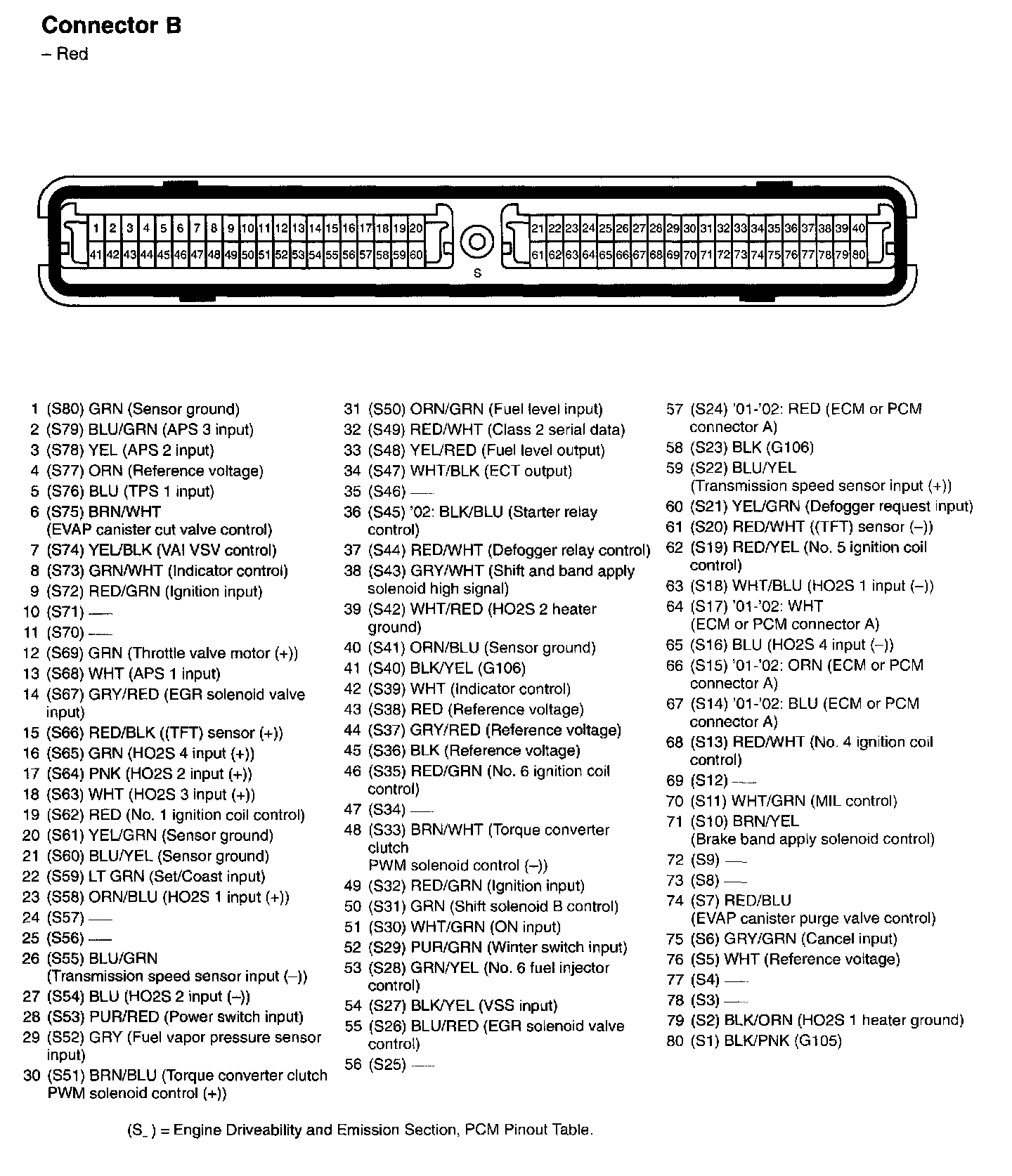

66. ECM (M/T) Or PCM (A/T) Connector B:
