Connector Views
Connector Views

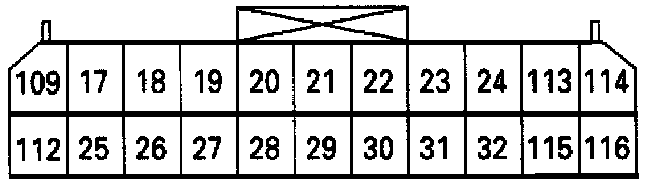

26 Pin ECM Connector View:

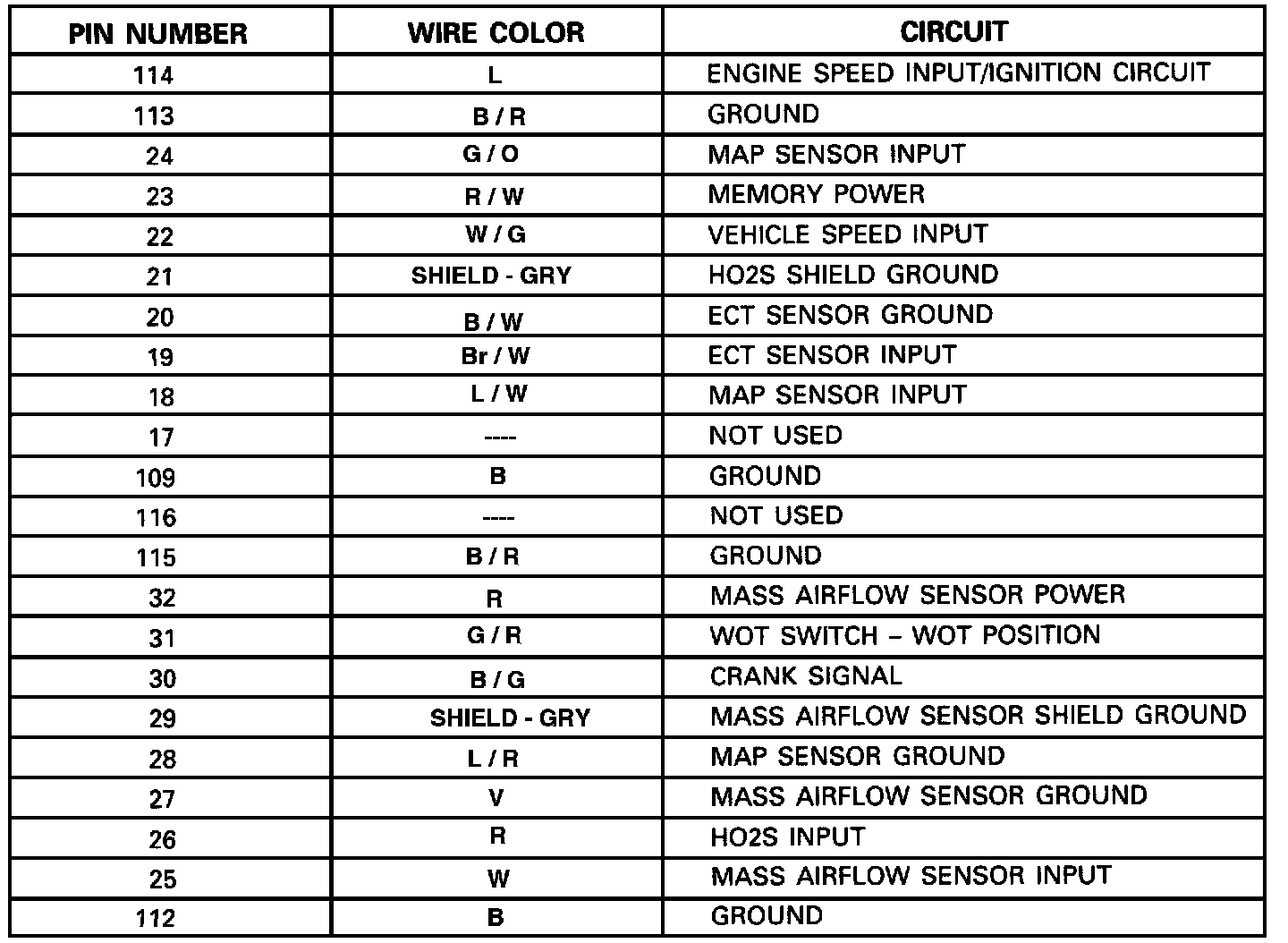

26 Pin ECM Connector Wiring Detail:

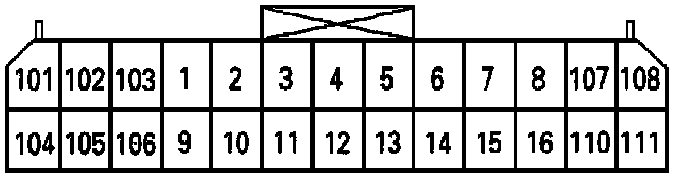

22 Pin ECM Connector View:

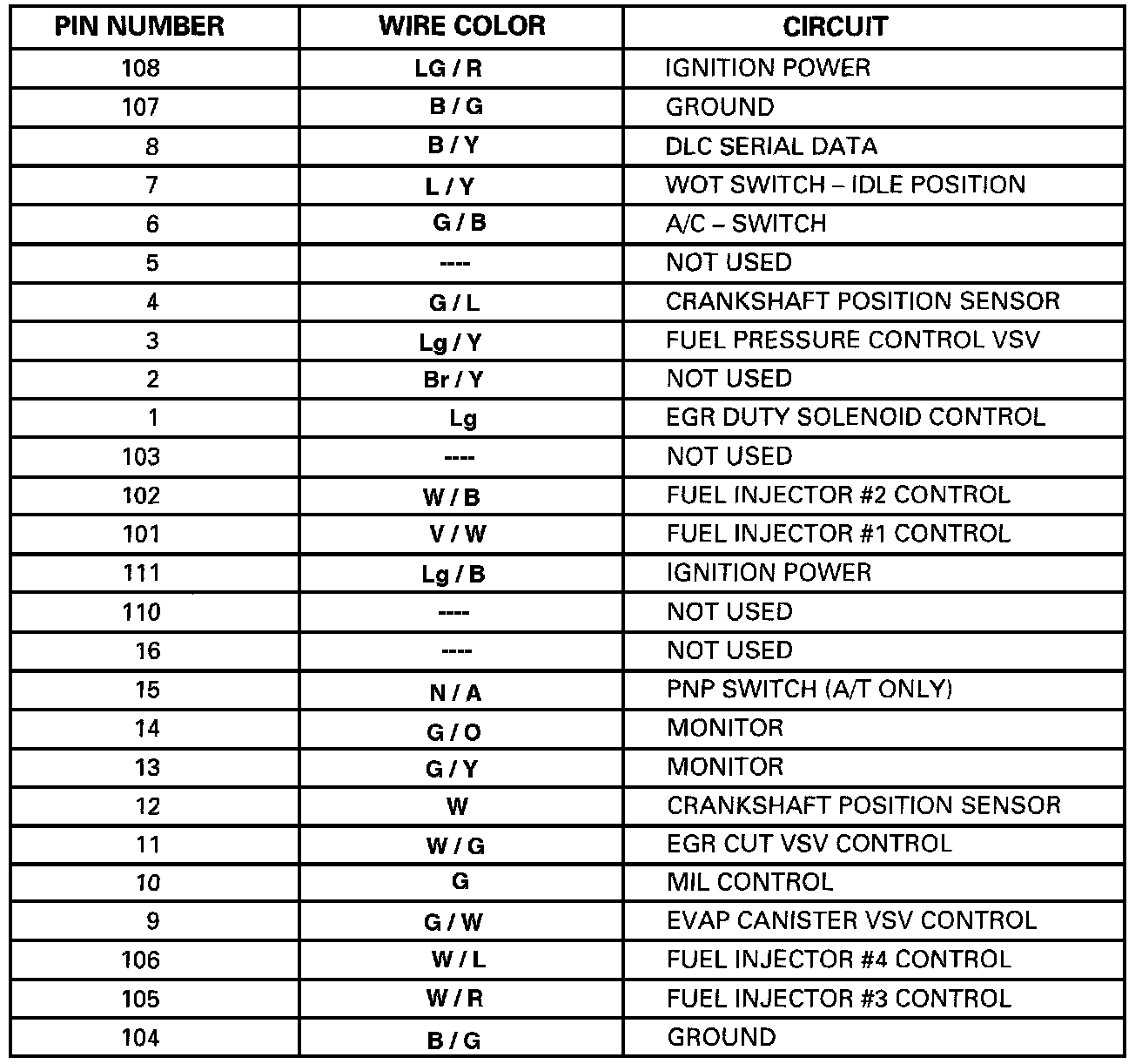

22 Pin ECM Connector Wiring Detail:
