Scantool Data Values

Normal Condition:
- Diagnostic Trouble Code (DTC) will display.
- The memory cleared by Main Fuse.

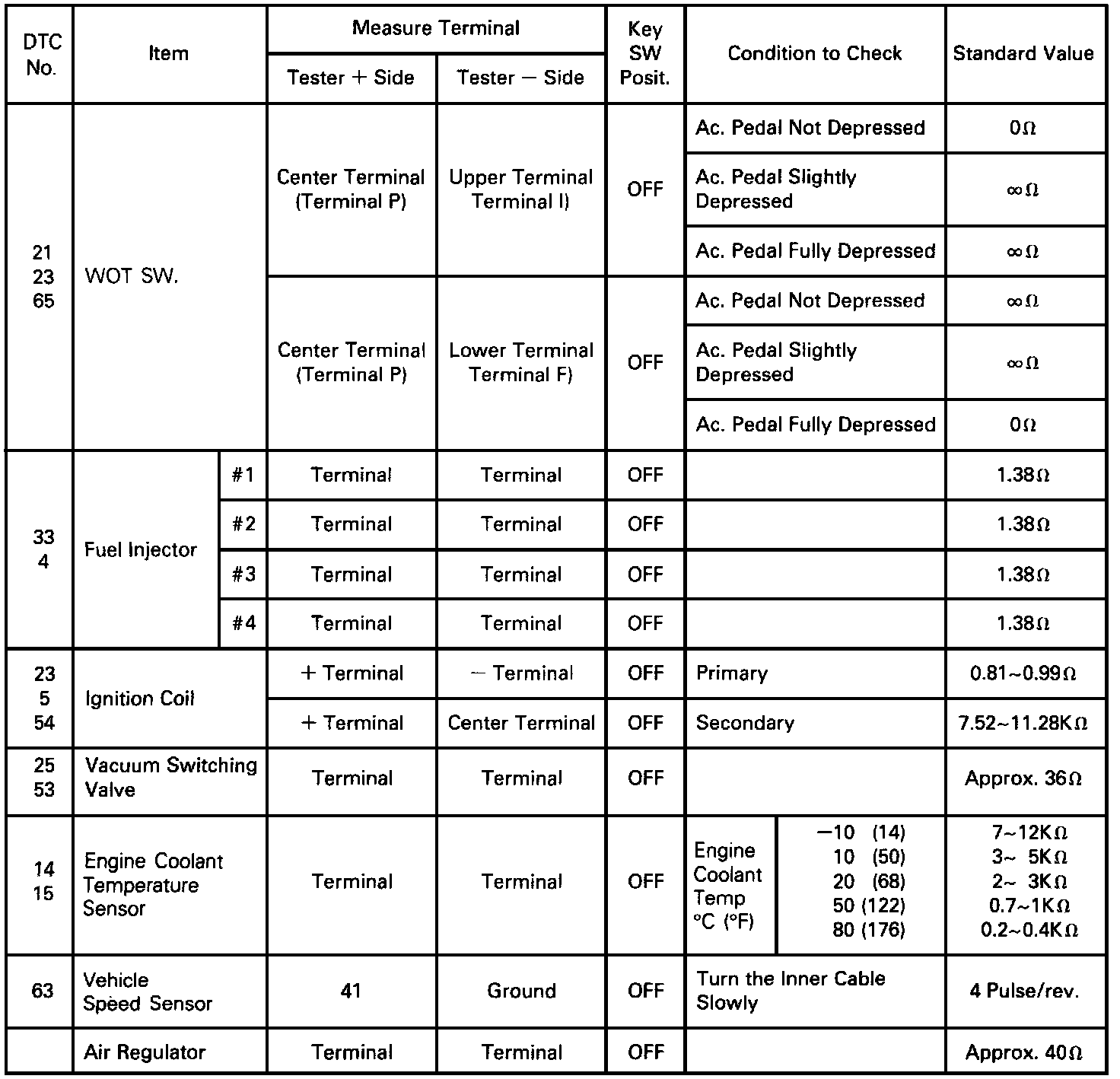

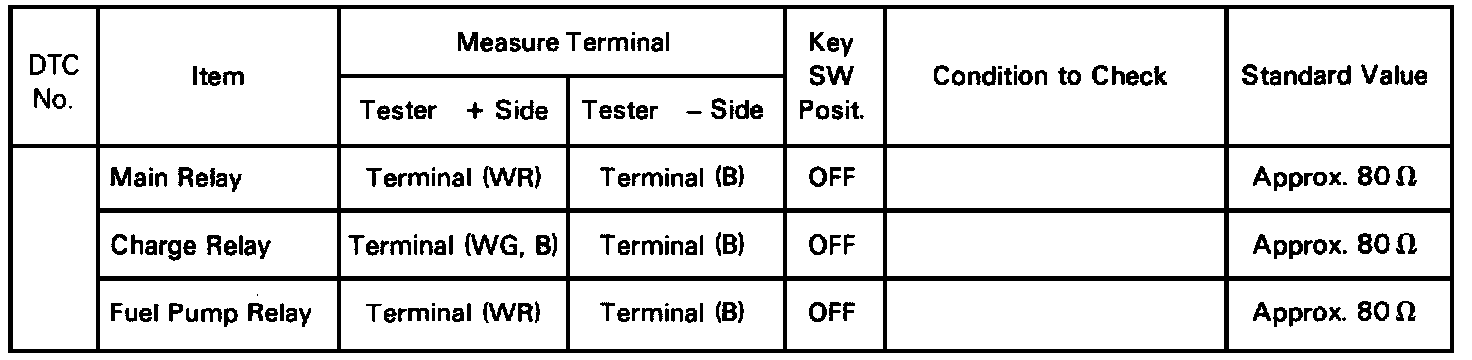

I. Disconnect the Sensor or Actuator Wiring Connector (when checking the part component independently).

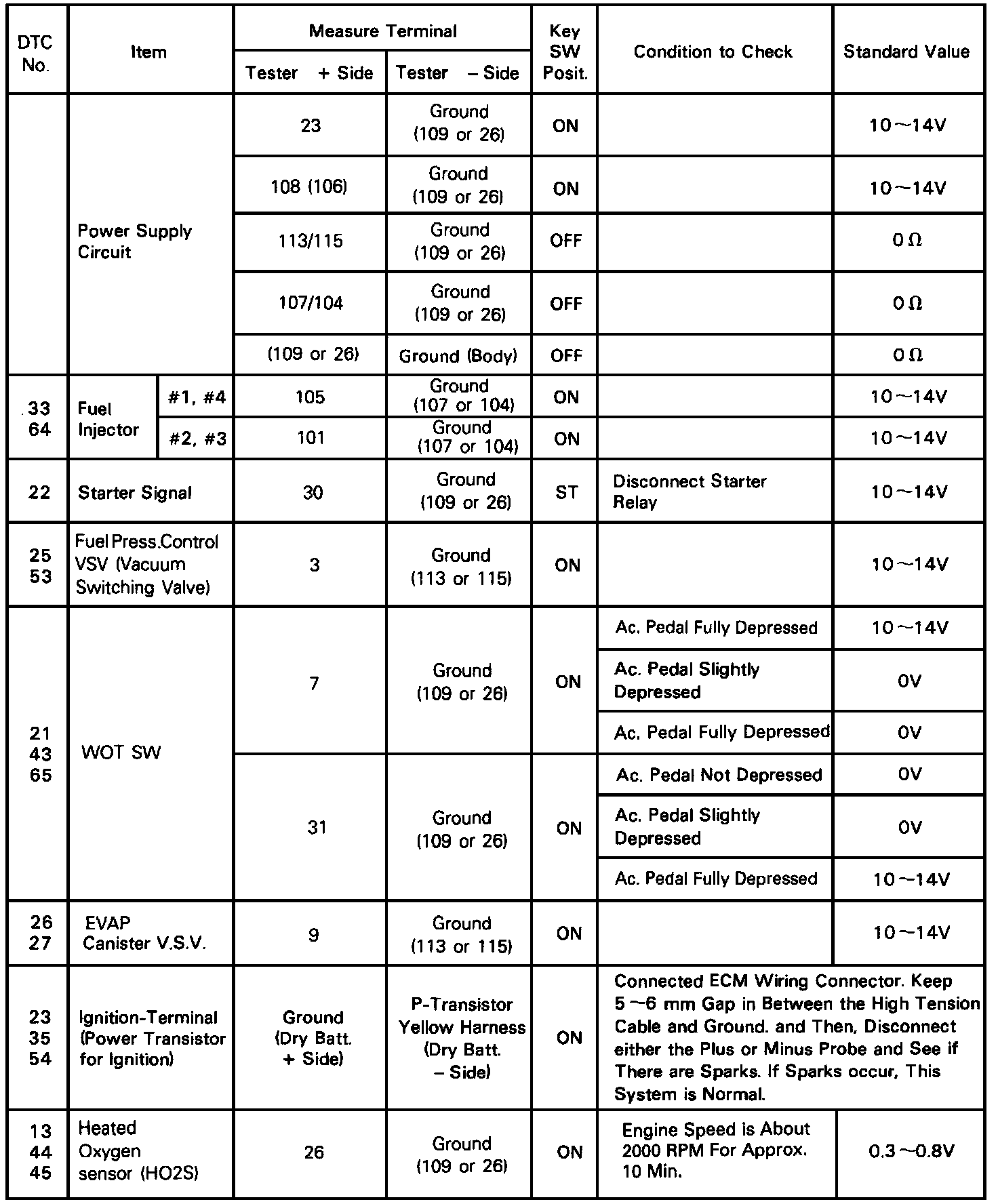

II. Disconnect the Engine Control Module (ECM) Wiring Connectors.
