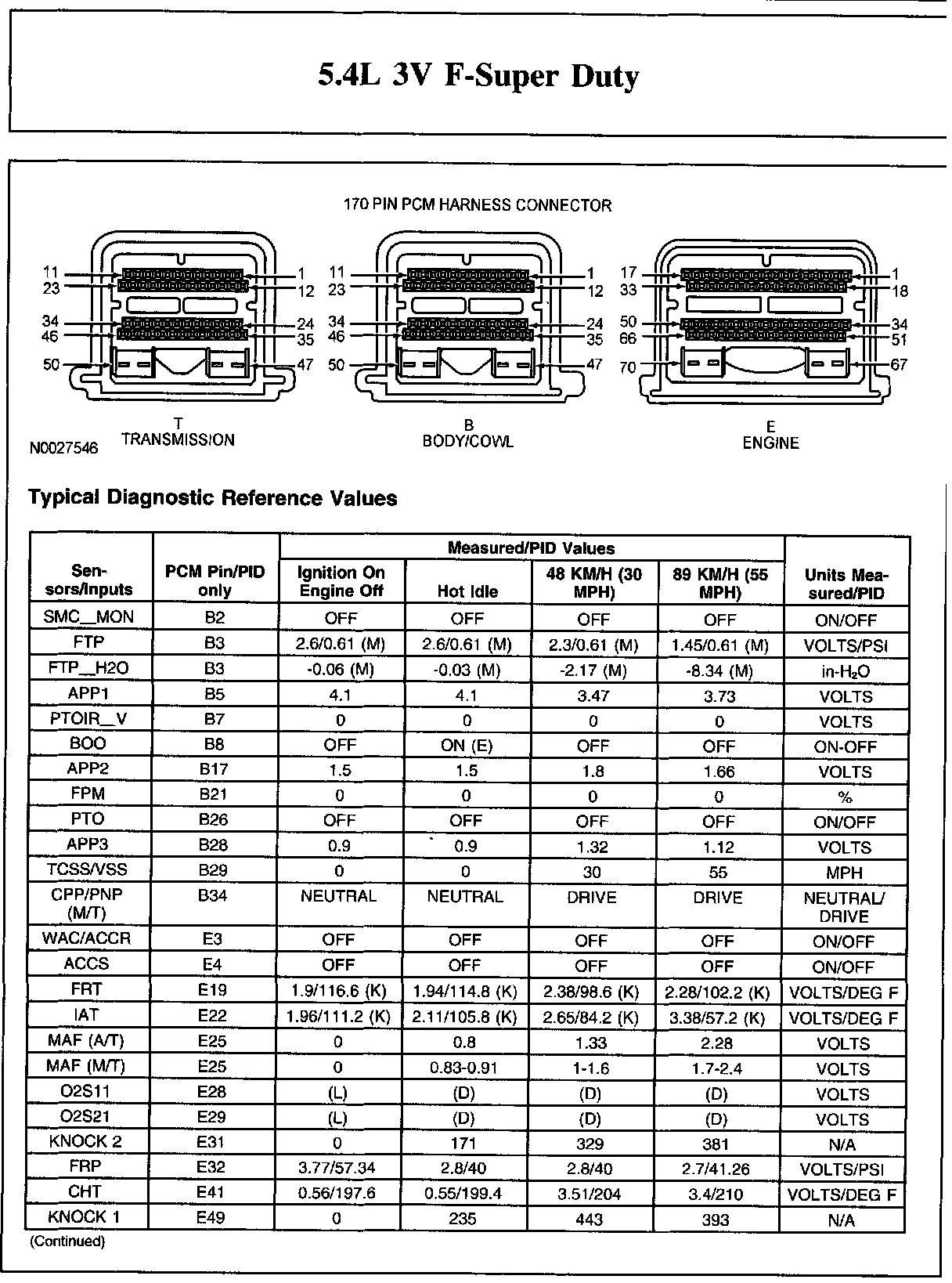

Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):

Typical Diagnostic Reference Values Notes (Part 2):

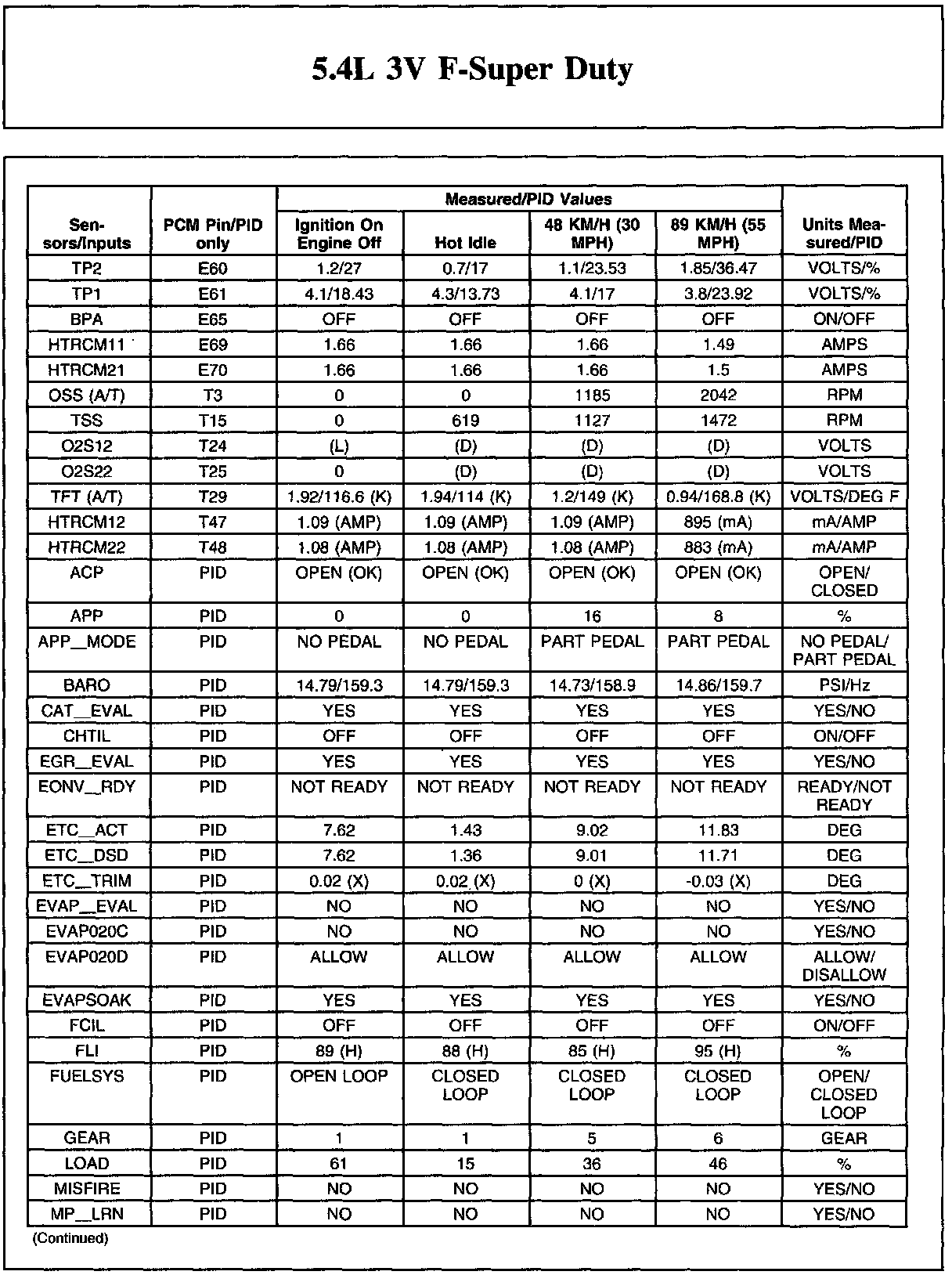

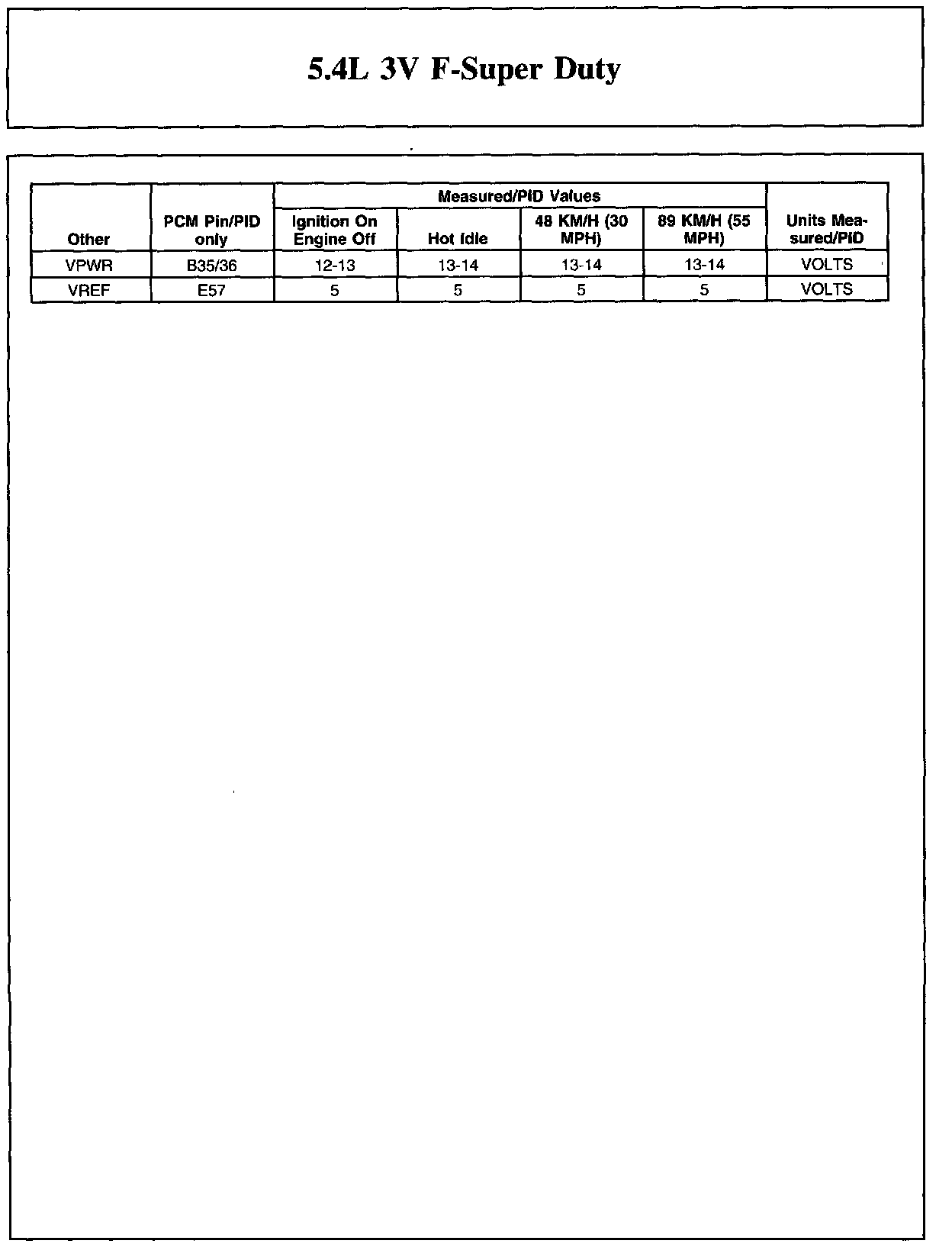

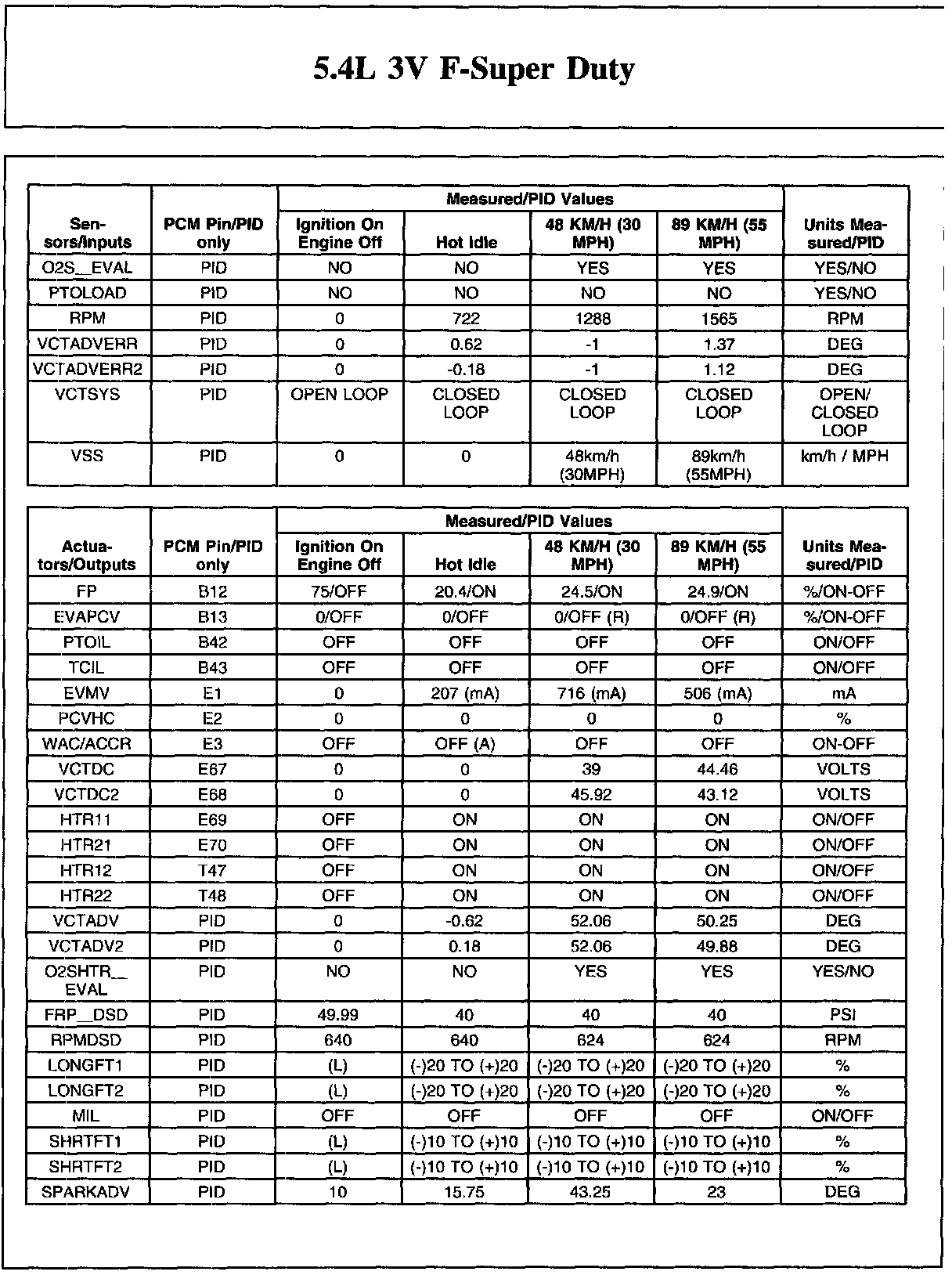

5.4L 3V F-Super Duty (Part 1):

5.4L 3V F-Super Duty (Part 2):

5.4L 3V F-Super Duty (Part 3):

5.4L 3V F-Super Duty (Part 4):
