Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

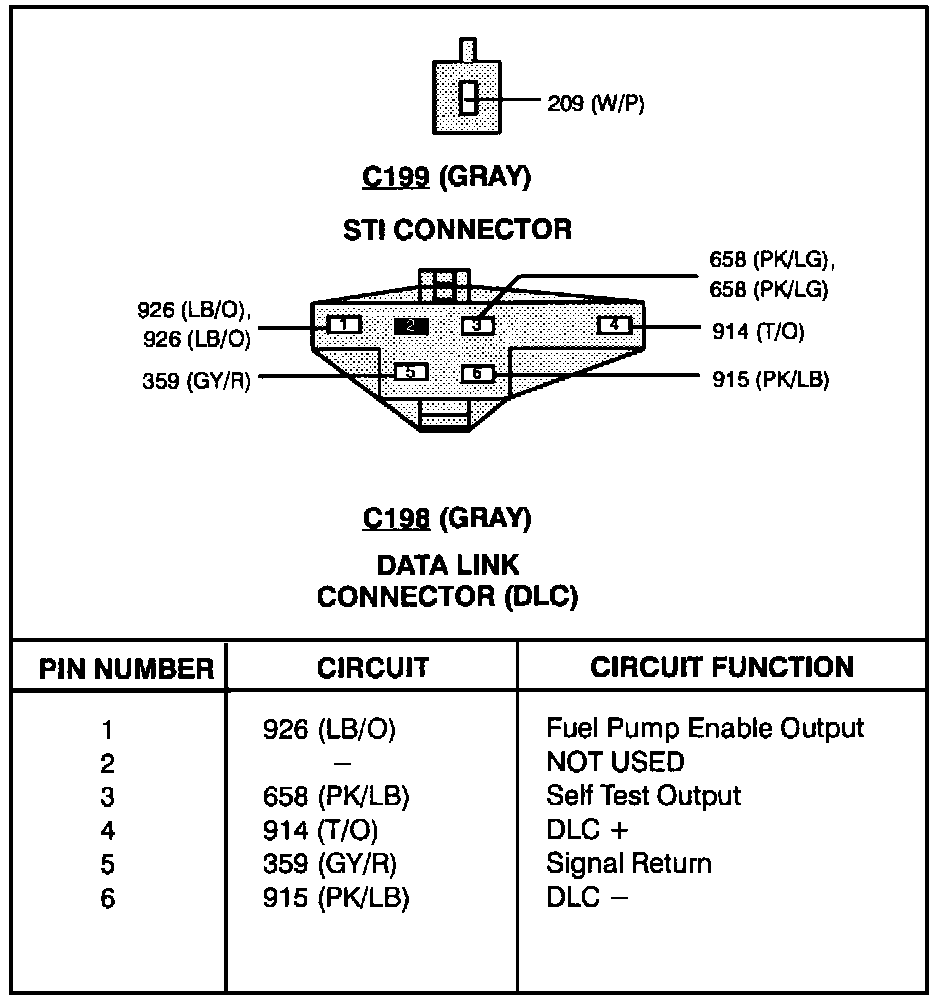

Self Test Input Connector/Data Link Connector:
