Connector Views

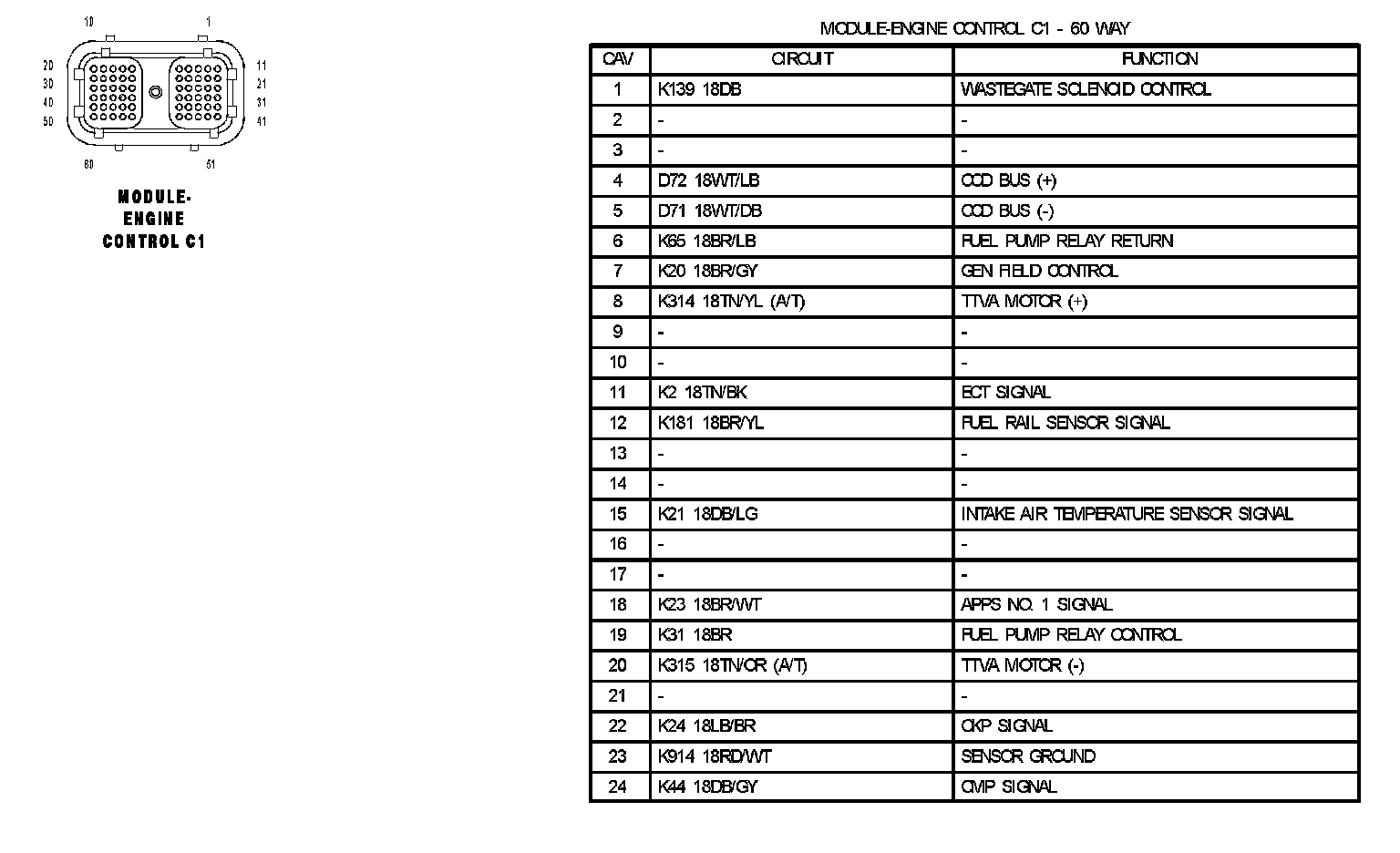

Module-Engine Control C1 Part 1 Of 3:

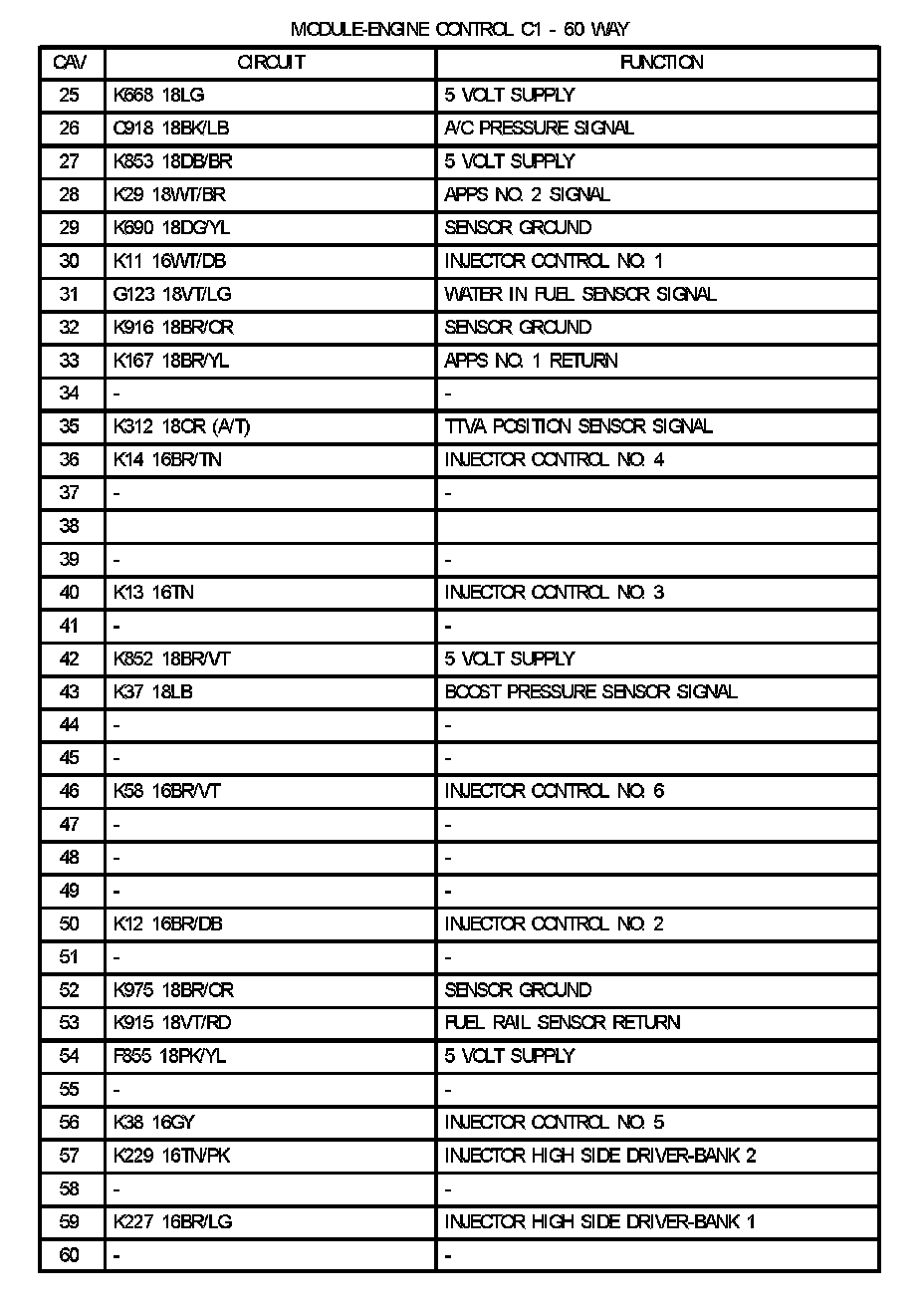

Module-Engine Control C1 Part 2 Of 3:

Module-Engine Control C1 Part 3 Of 3:

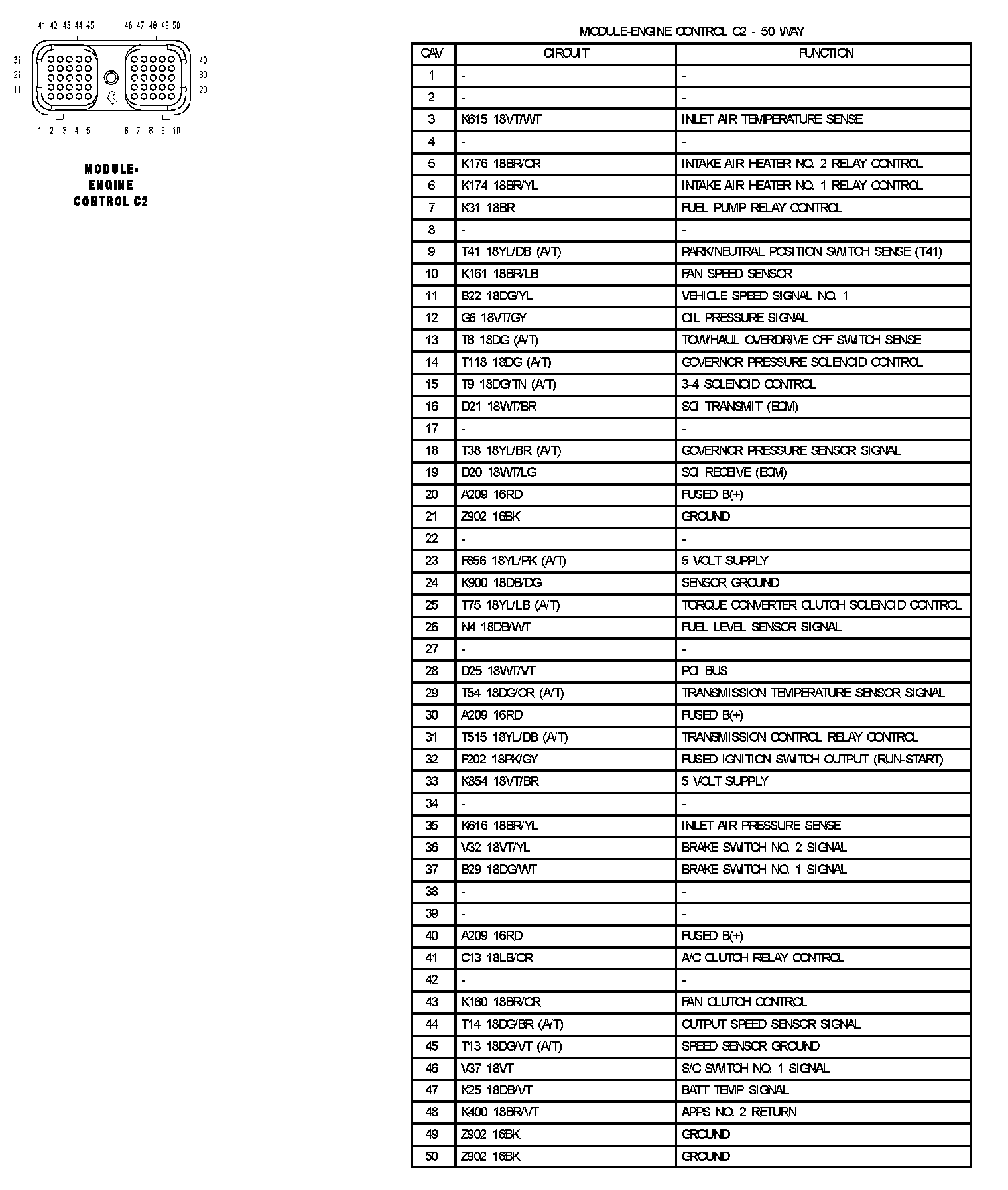

Module-Engine Control C2:

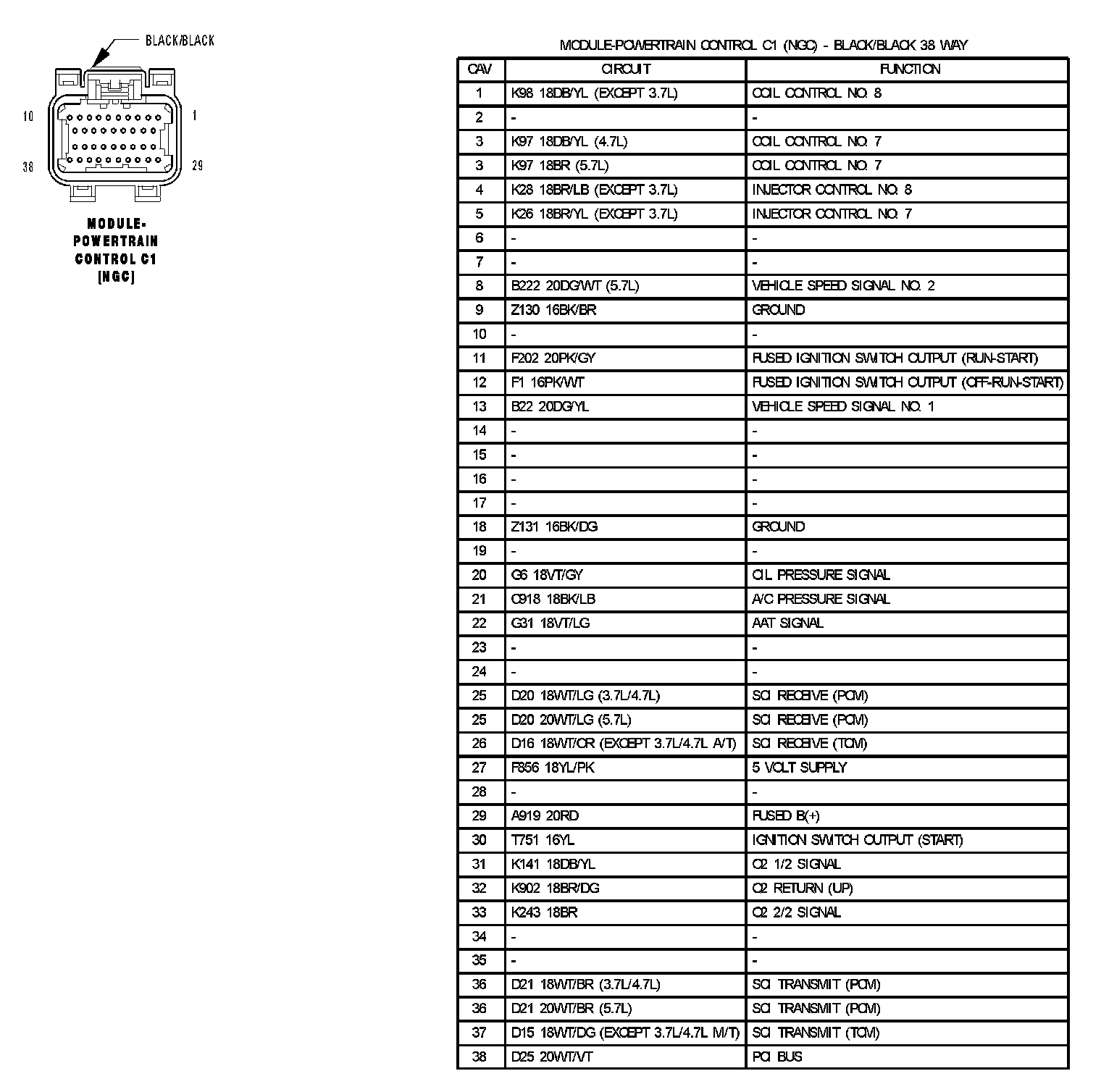

Module-Powertrain Control C1 (NGC):

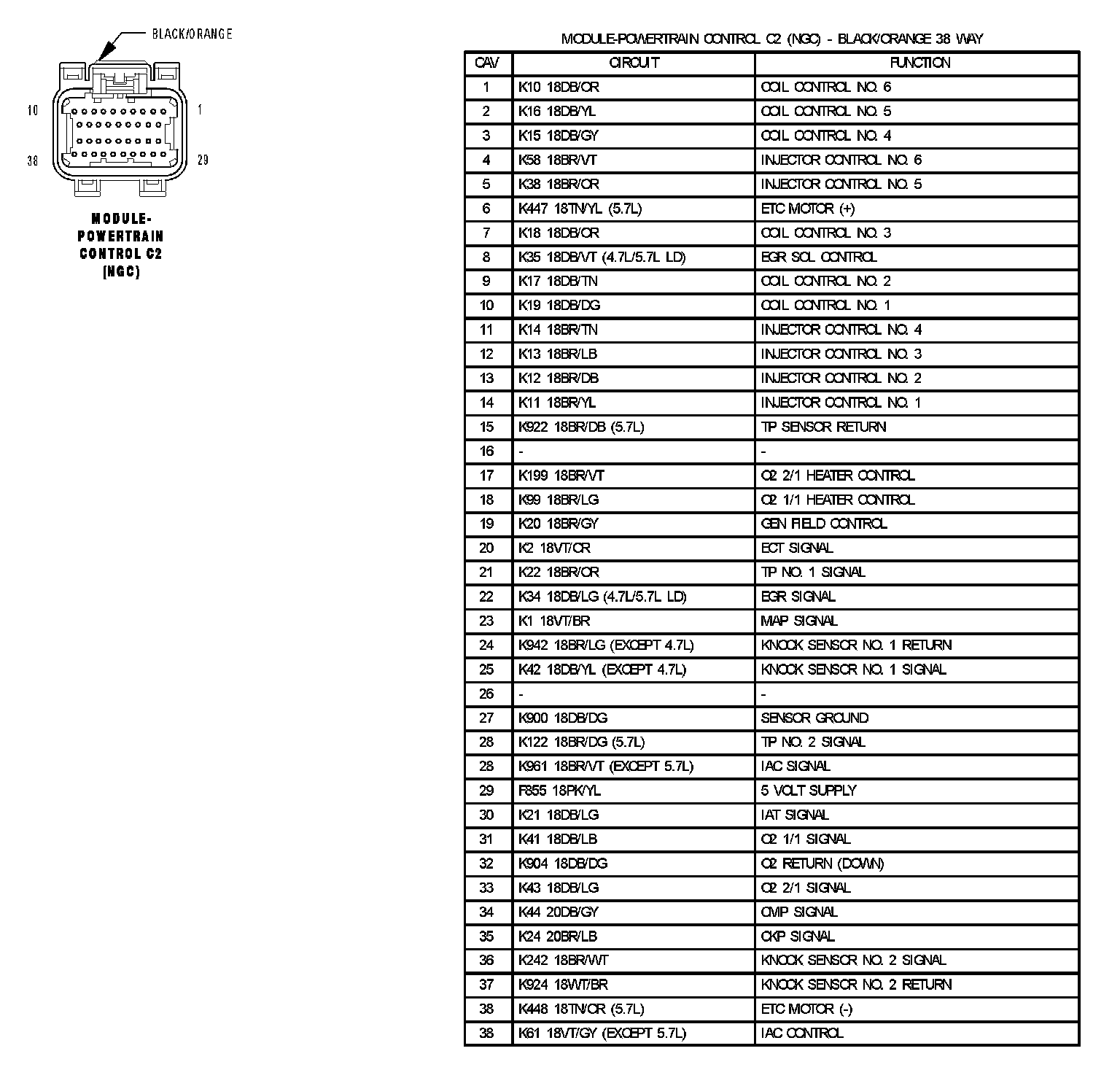

Module-Powertrain Control C2 (NGC):

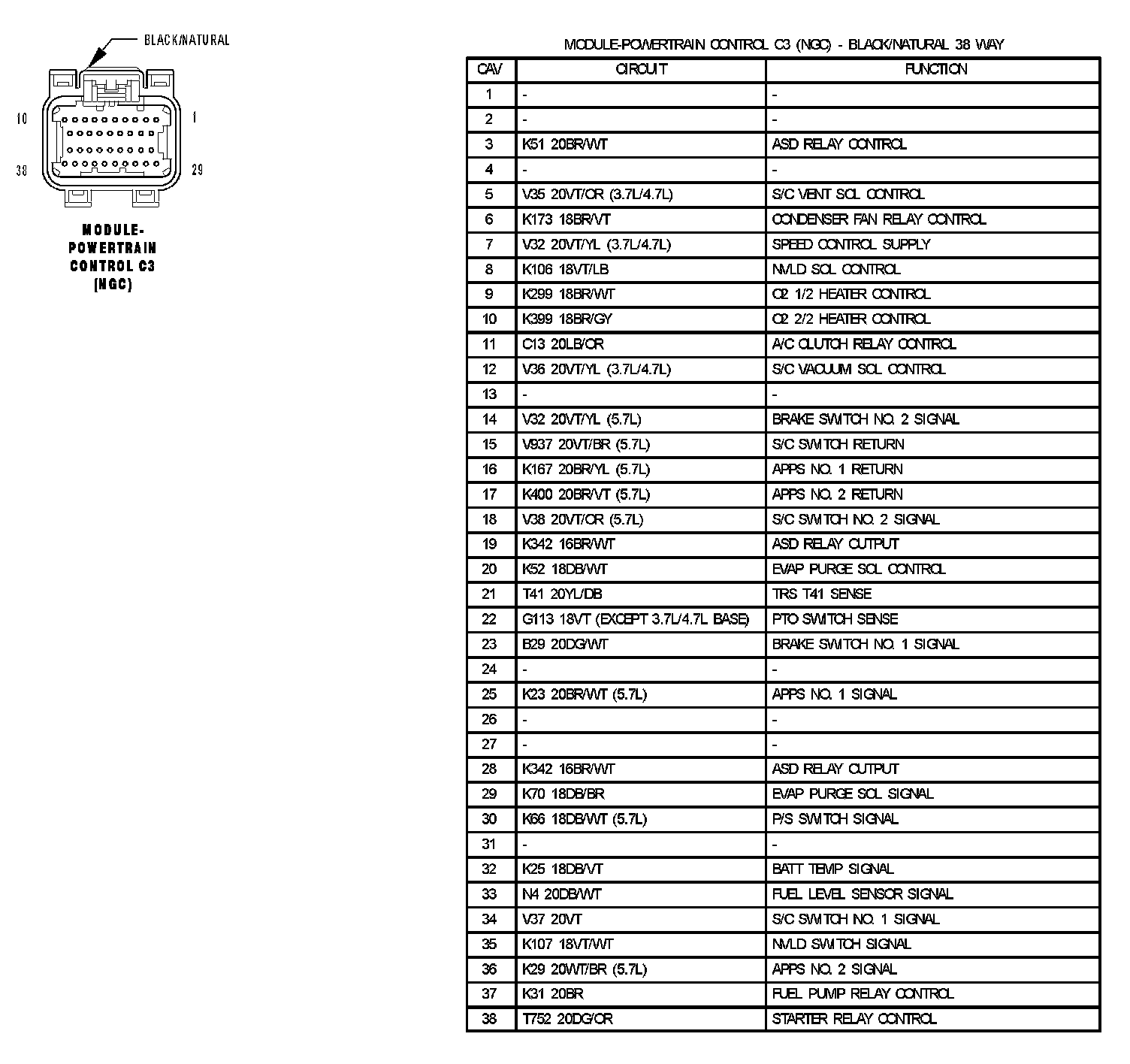

Module-Powertrain Control C3 (NGC):

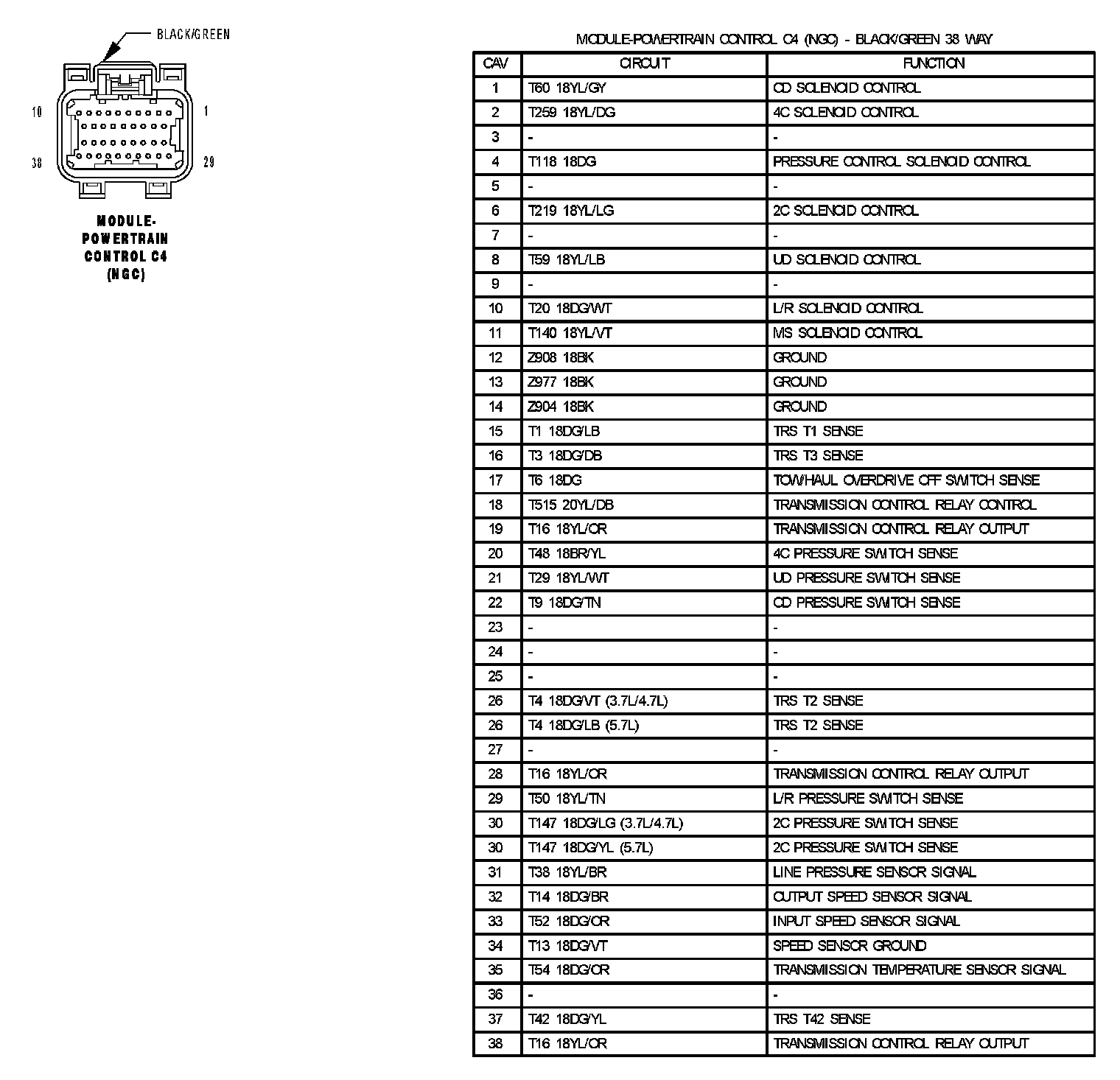

Module-Powertrain Control C4 (NGC):
