Front Control Module (FCM)

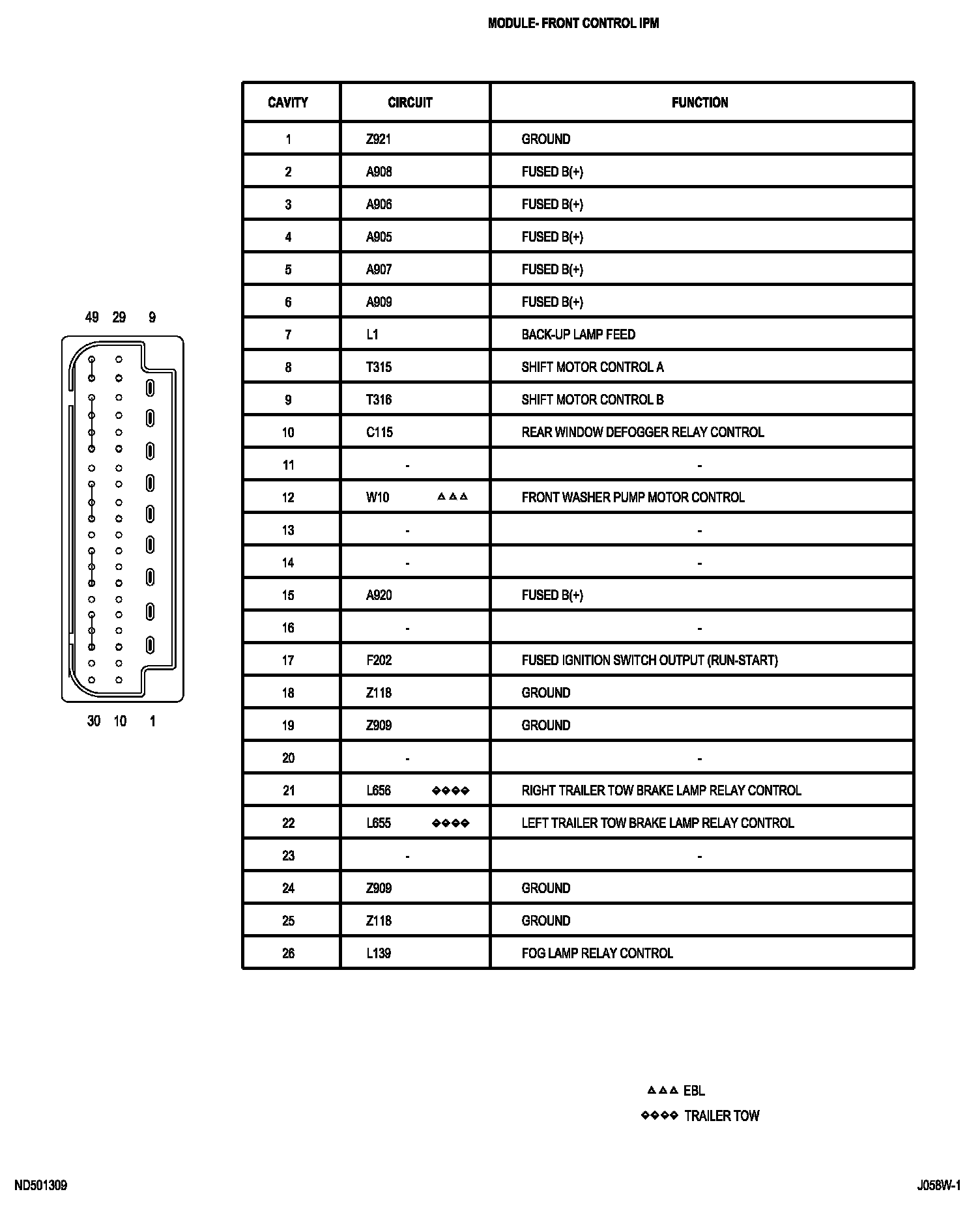

Module- Front Control IPM Part 1:

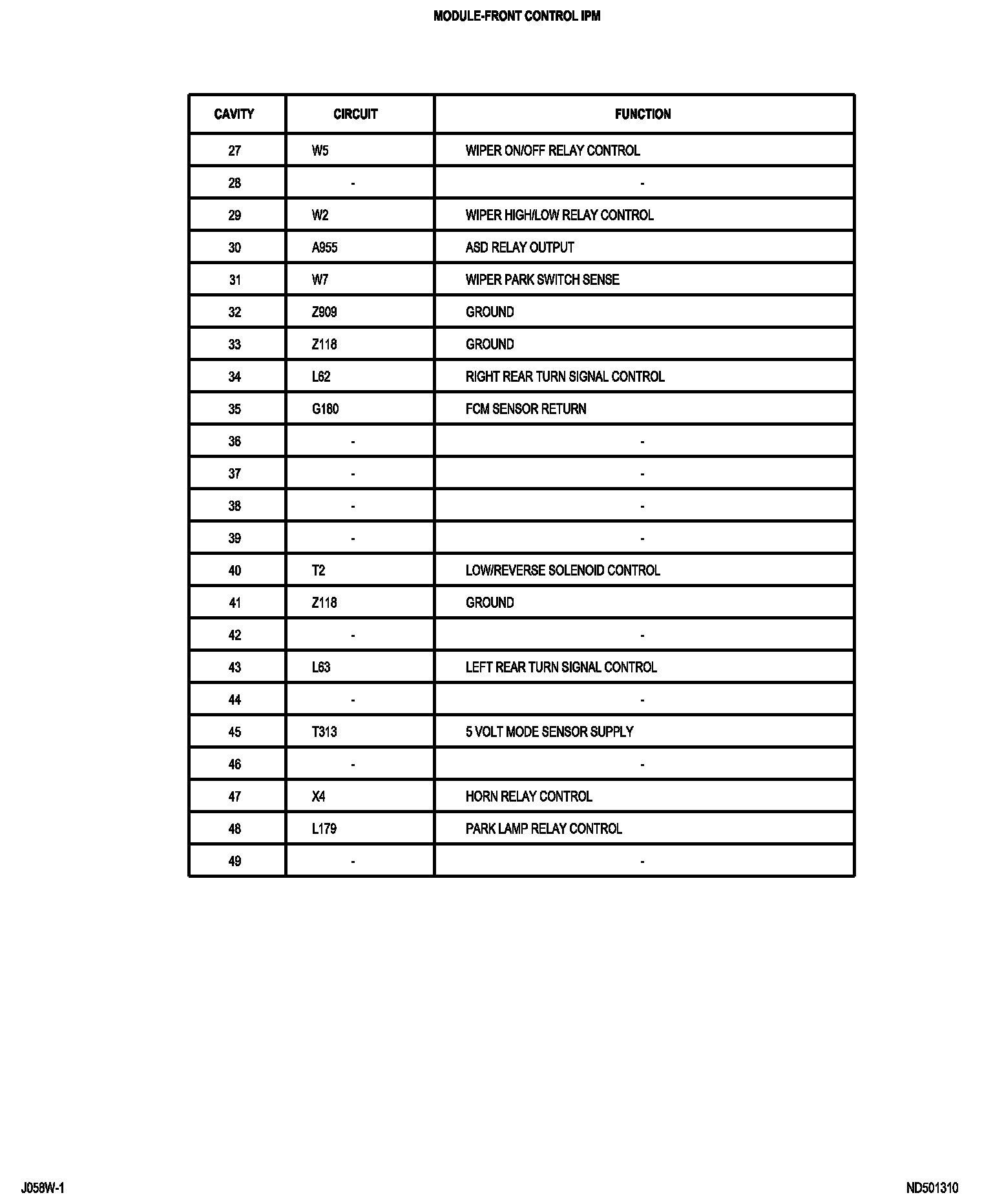

Module- Front Control IPM Part 2:

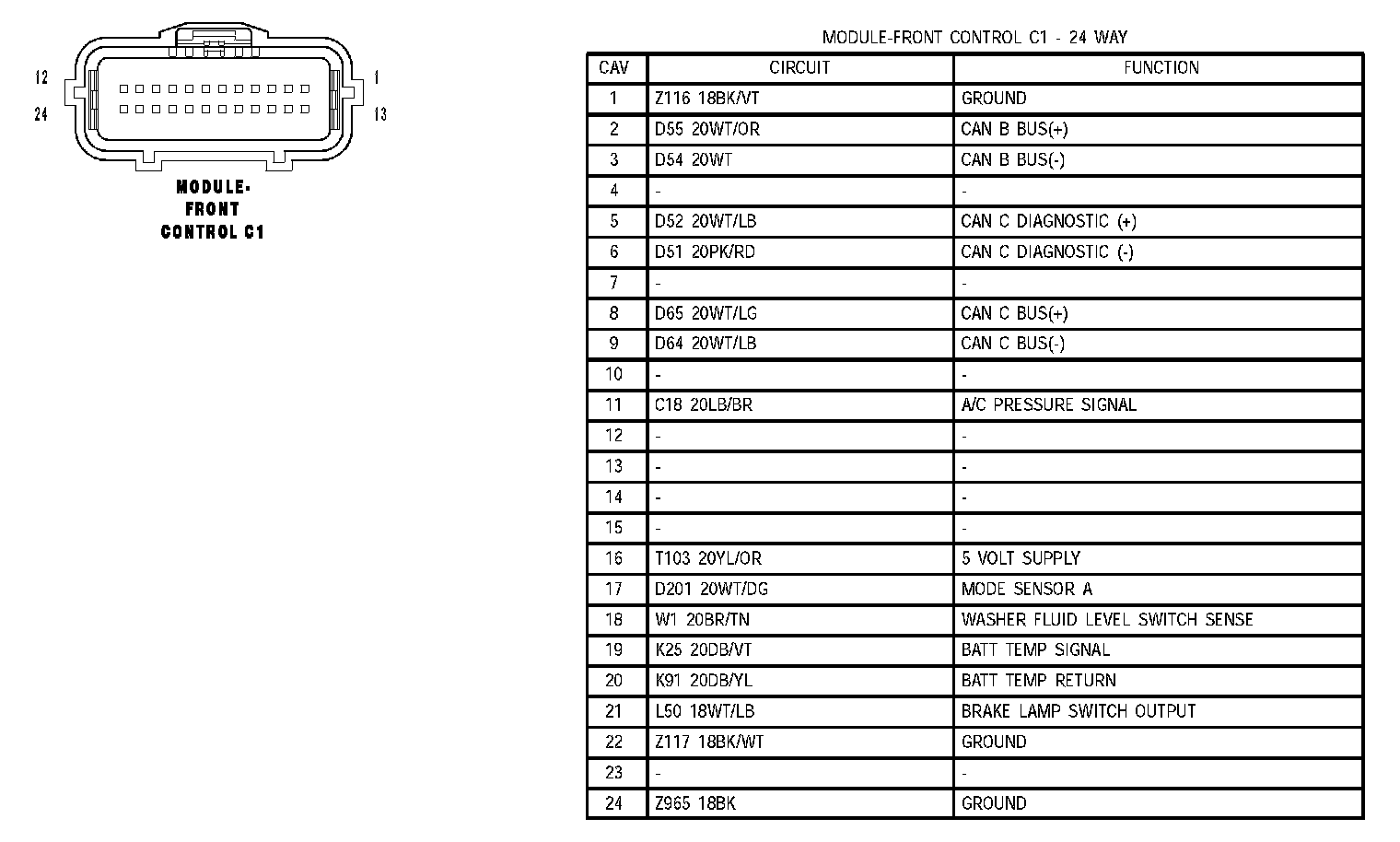

Module Front Control C1:

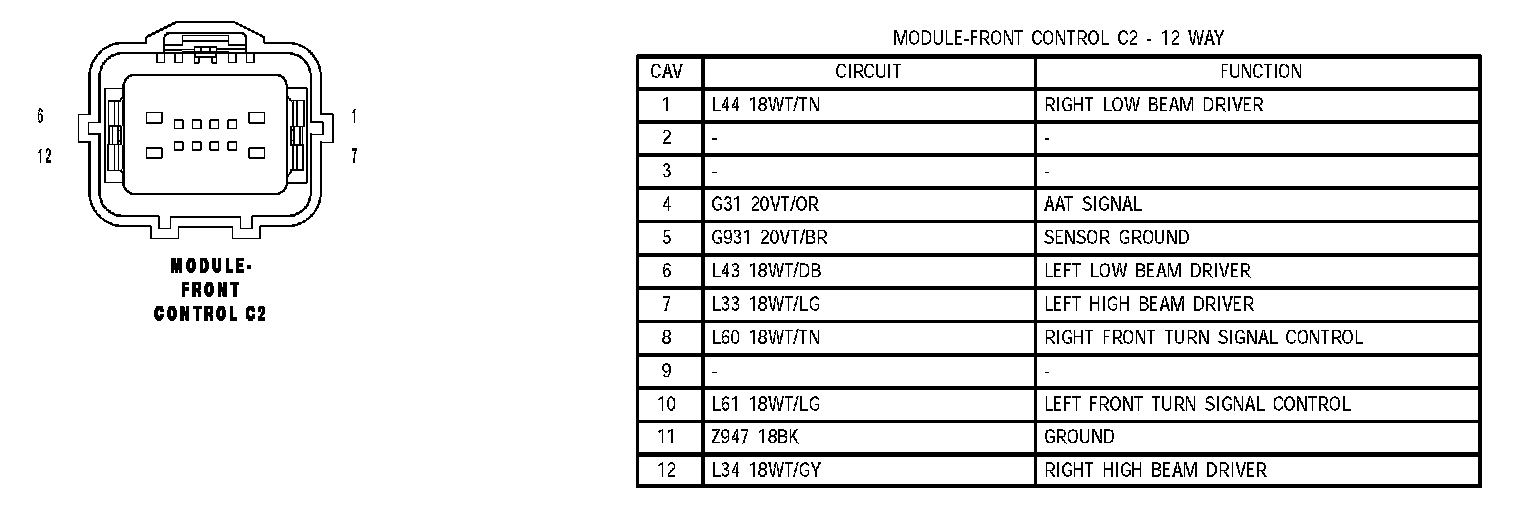

Module Front Control C2:
