Water Pump

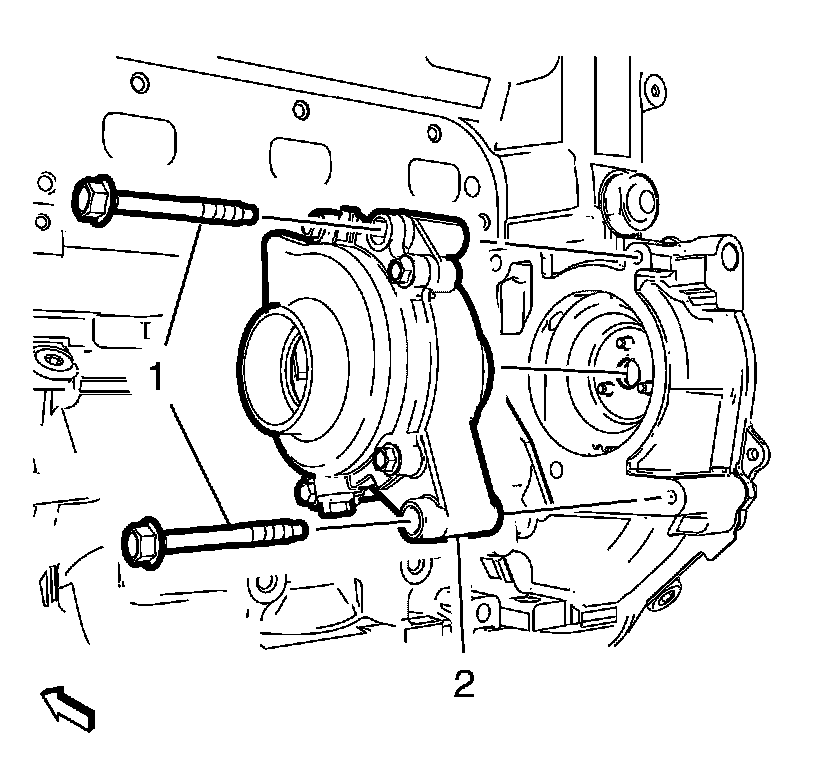

Install the water pump (2) and install the 2 water pump bolts (1) and tighten to 23 Nm (17 lb ft).

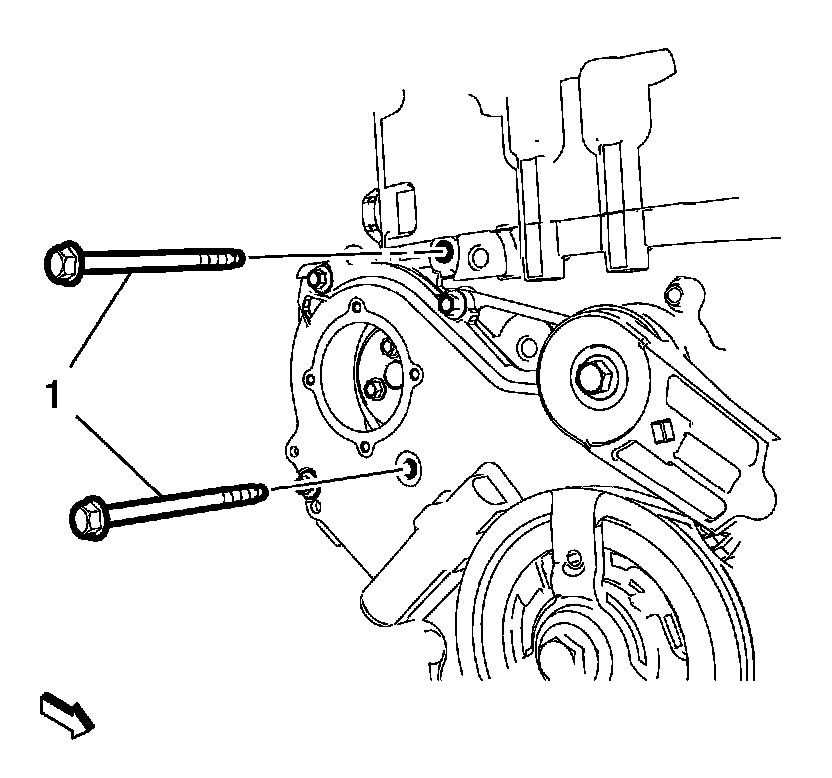

Install the 2 water pump bolts (1) to the engine front cover and tighten to 23 Nm (17 lb ft).

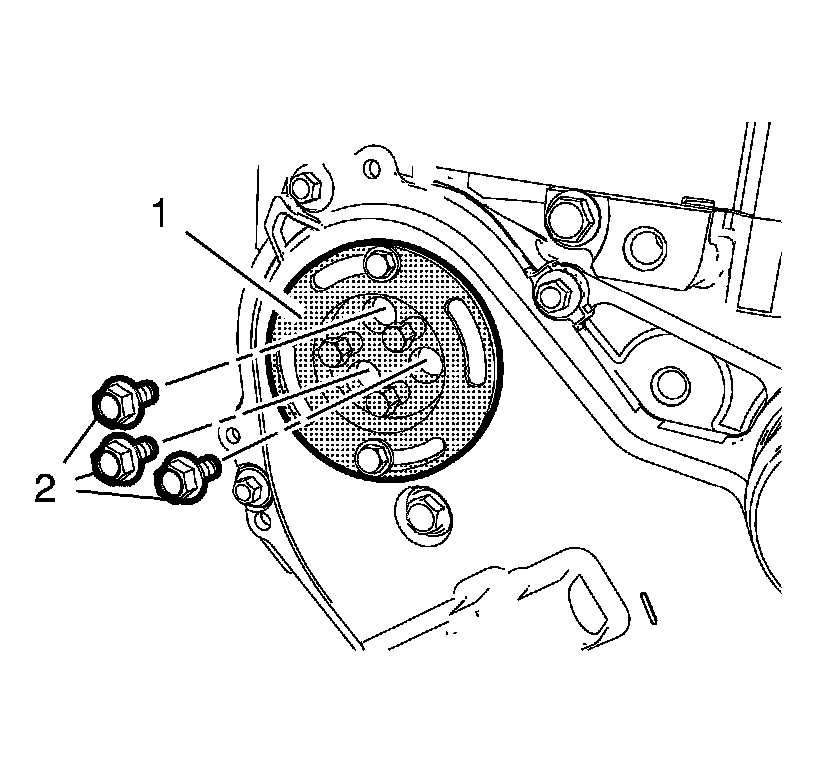

Install the 3 water pump sprocket bolts (2) through the EN-44602 - holding tool (1) and tighten the bolts to 8 Nm (71 lb in).
