Power Door Lock Switch
Power Door Lock Switch

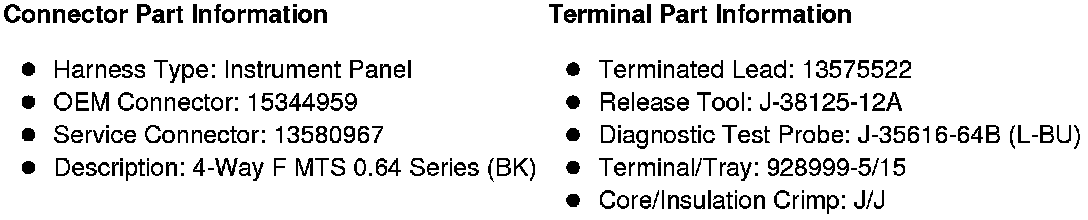

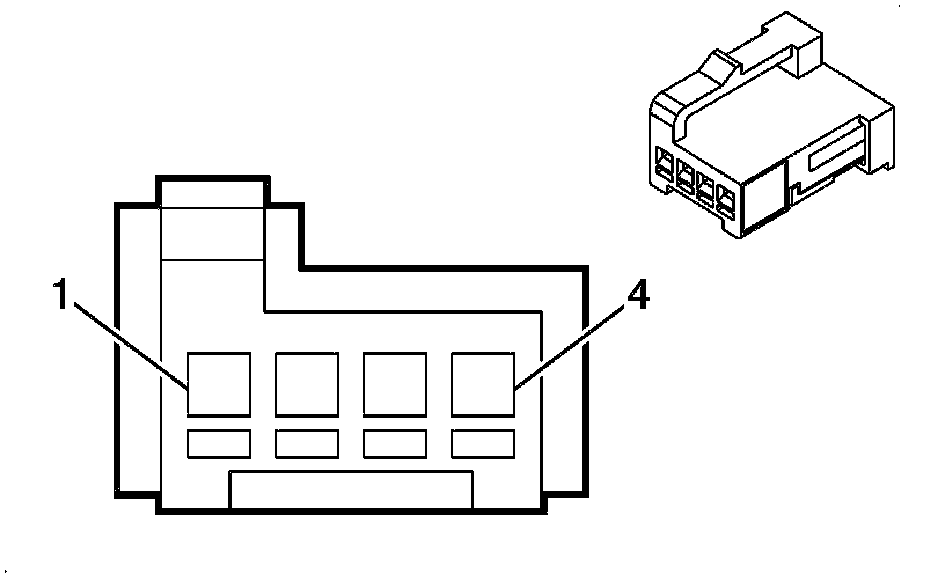

Component Connector End Views

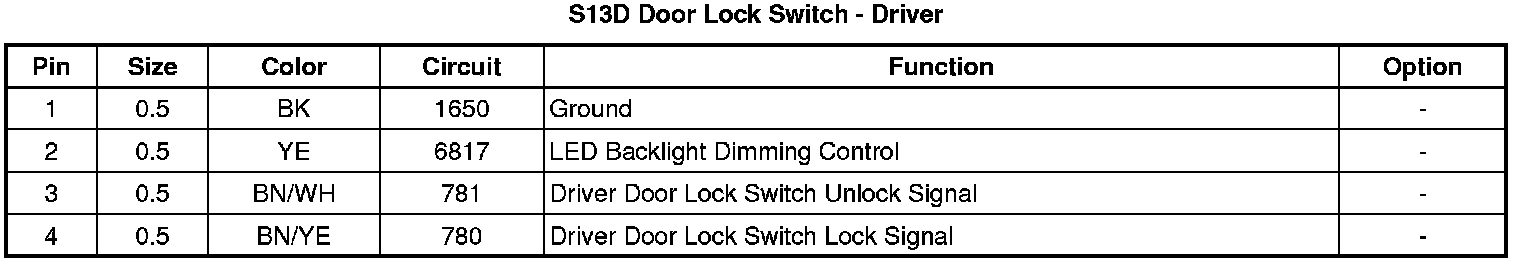

S13D Door Lock Switch - Driver
