Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2013
>>
Orlando (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Radio Controls
Radio Controls
Component Connector End Views

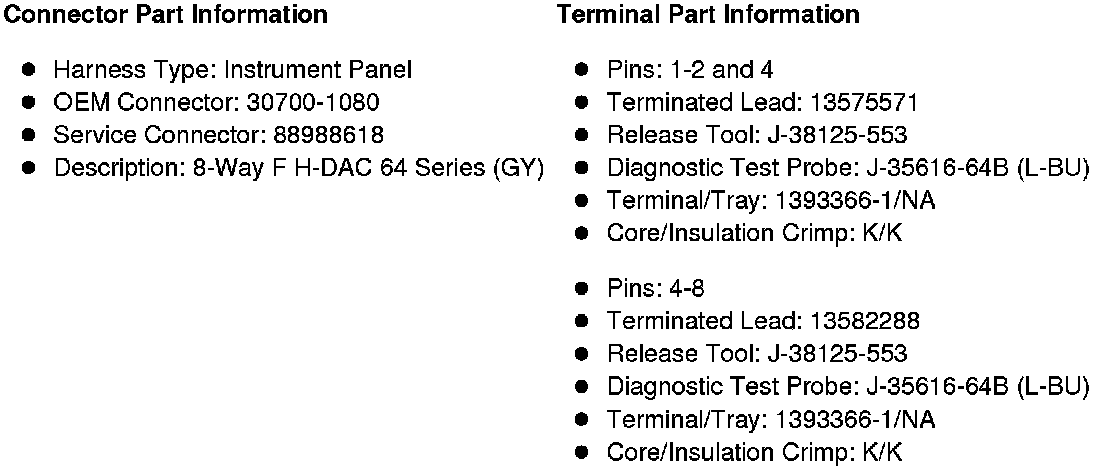

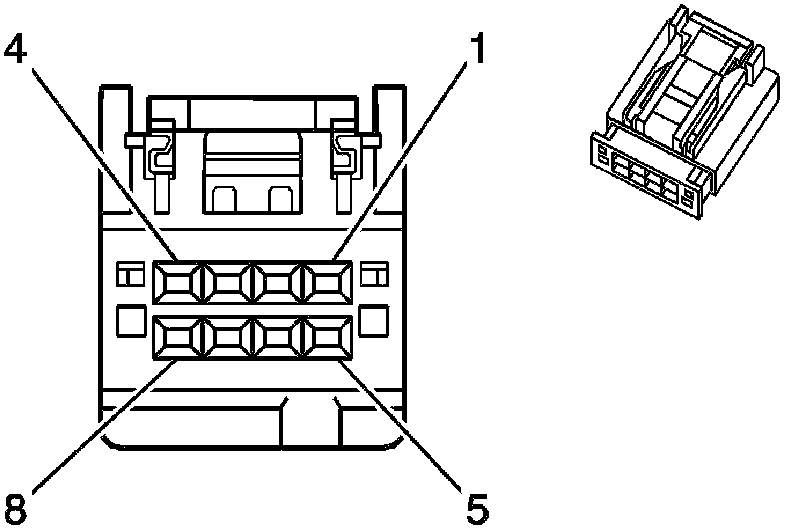

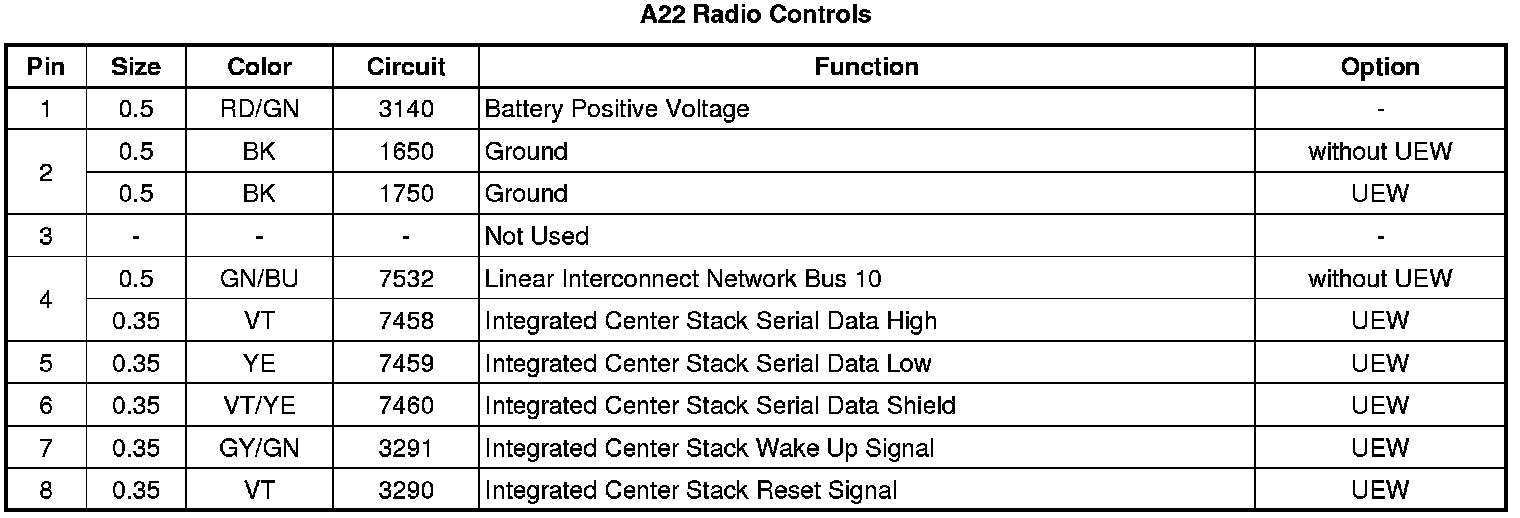

A22 Radio Controls
