Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2013
>>
Orlando (CANADA) L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Passenger Presence Detection Sensor
Passenger Presence Detection Sensor
Component Connector End Views

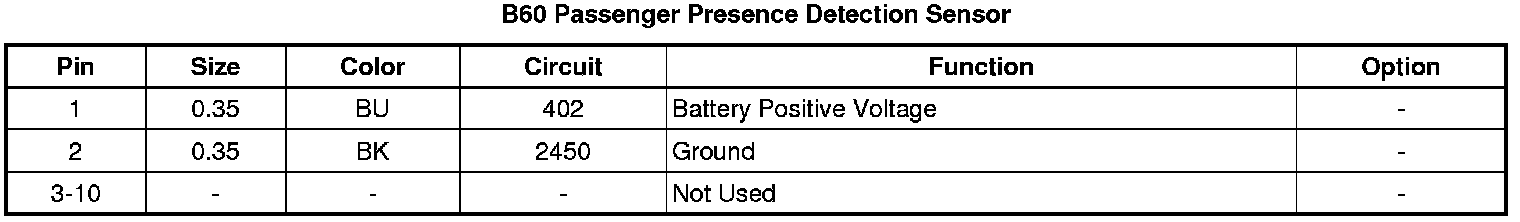

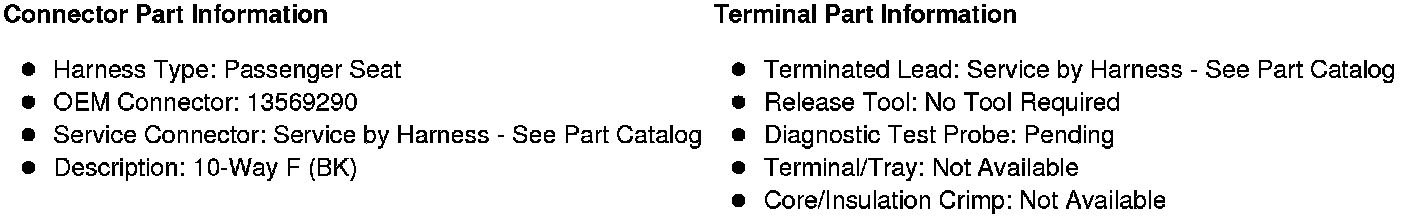

B60 Passenger Presence Detection Sensor
