Brake Warning Indicator: Testing and Inspection

Brake Warning System Check

Test Description

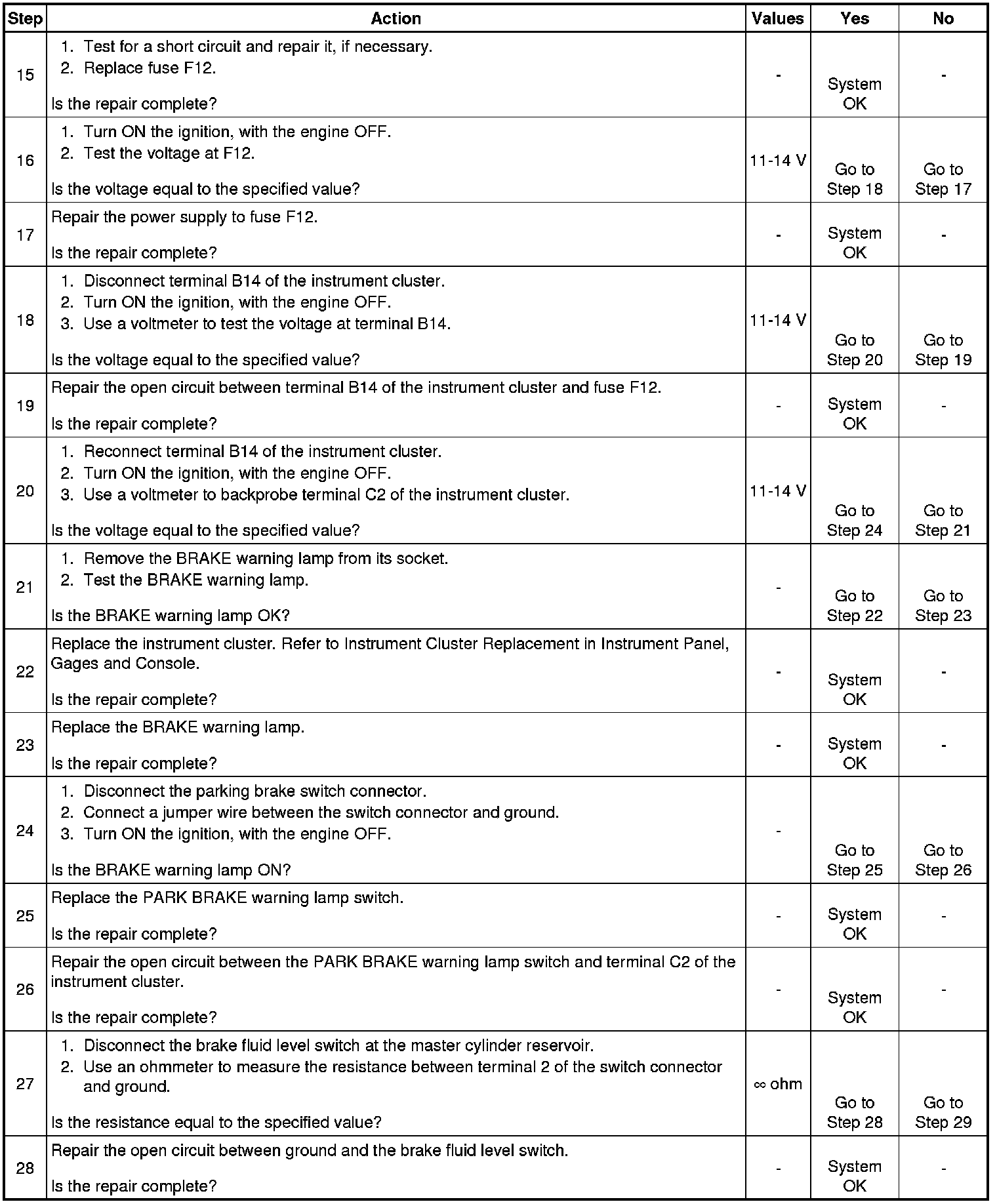

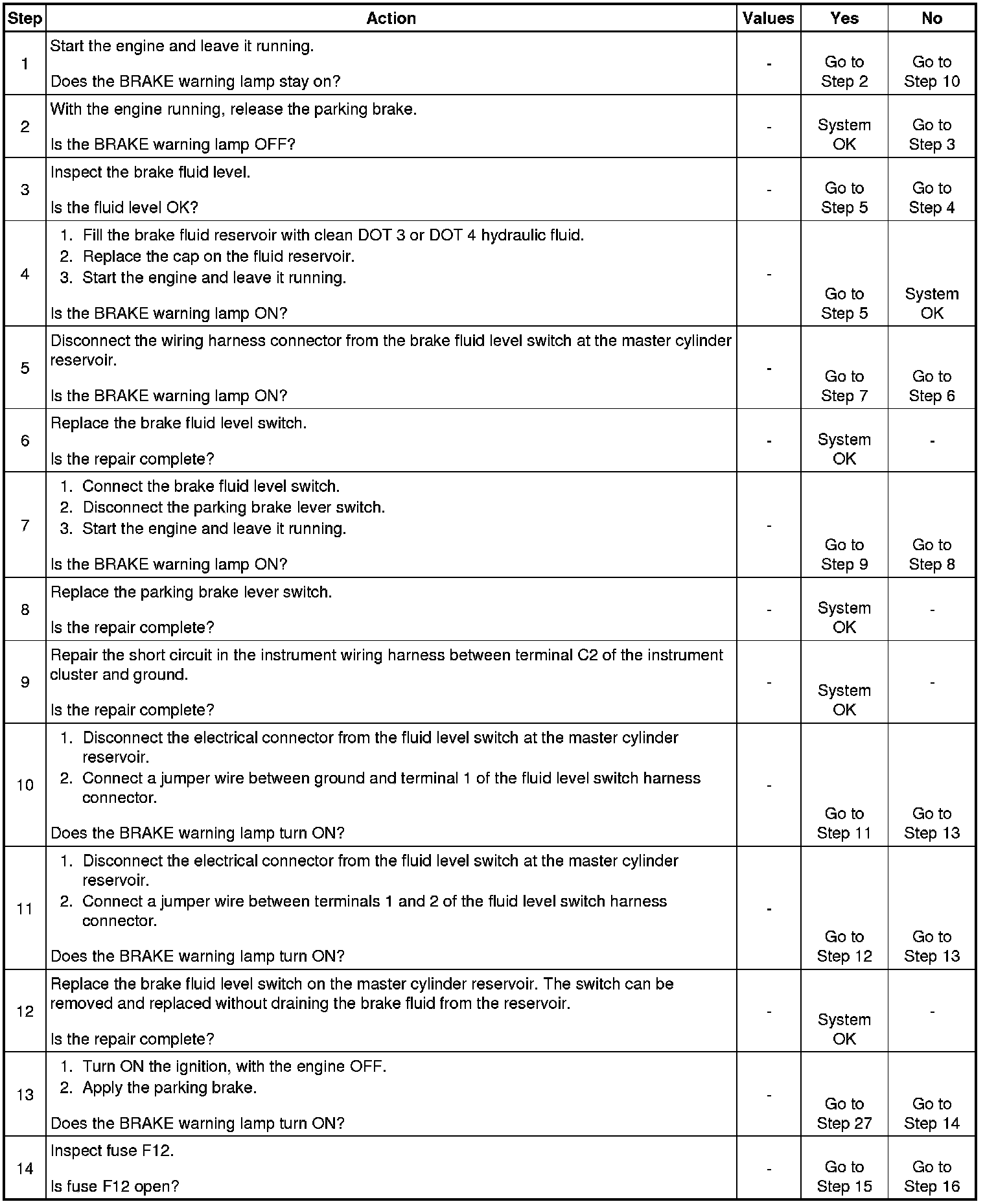

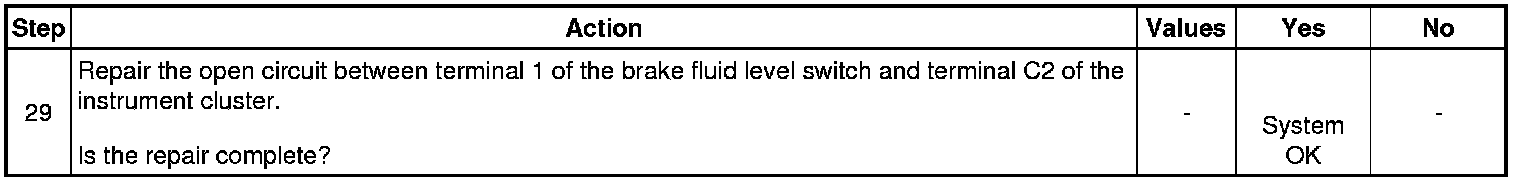

The numbers below refer to the step numbers on the diagnostic table.
1. This step begins the test sequence for a BRAKE warning lamp that stays on when the engine is running.
2. This step begins the test sequence for a BRAKE warning lamp that never turns on.
