EGR Control Module: Service and Repair

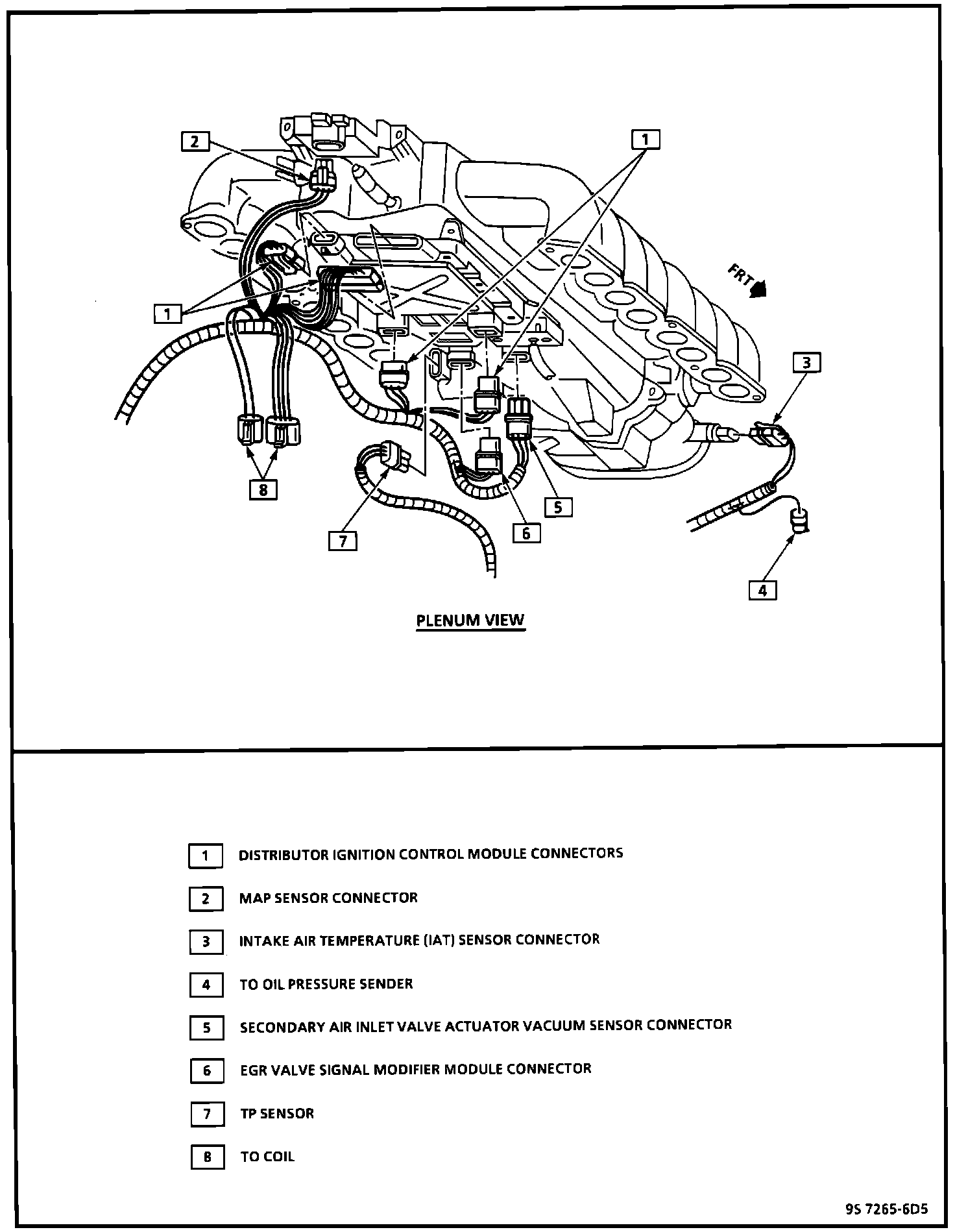

Under Plenum Components:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Intake plenum.
3. Electrical connector.
4. Attaching bolts.
5. EGR valve signal modifier module.

INSTALL OR CONNECT
1. EGR valve signal modifier module.

Tighten
Bolts to 2.0 Nm (18 lb. in.).

2. Electrical connector.
3. Intake plenum.
4. Negative battery cable.
