Home >> Chevrolet >> 1991 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Manual Air Conditioning >> Compressor Controls

Compressor Controls

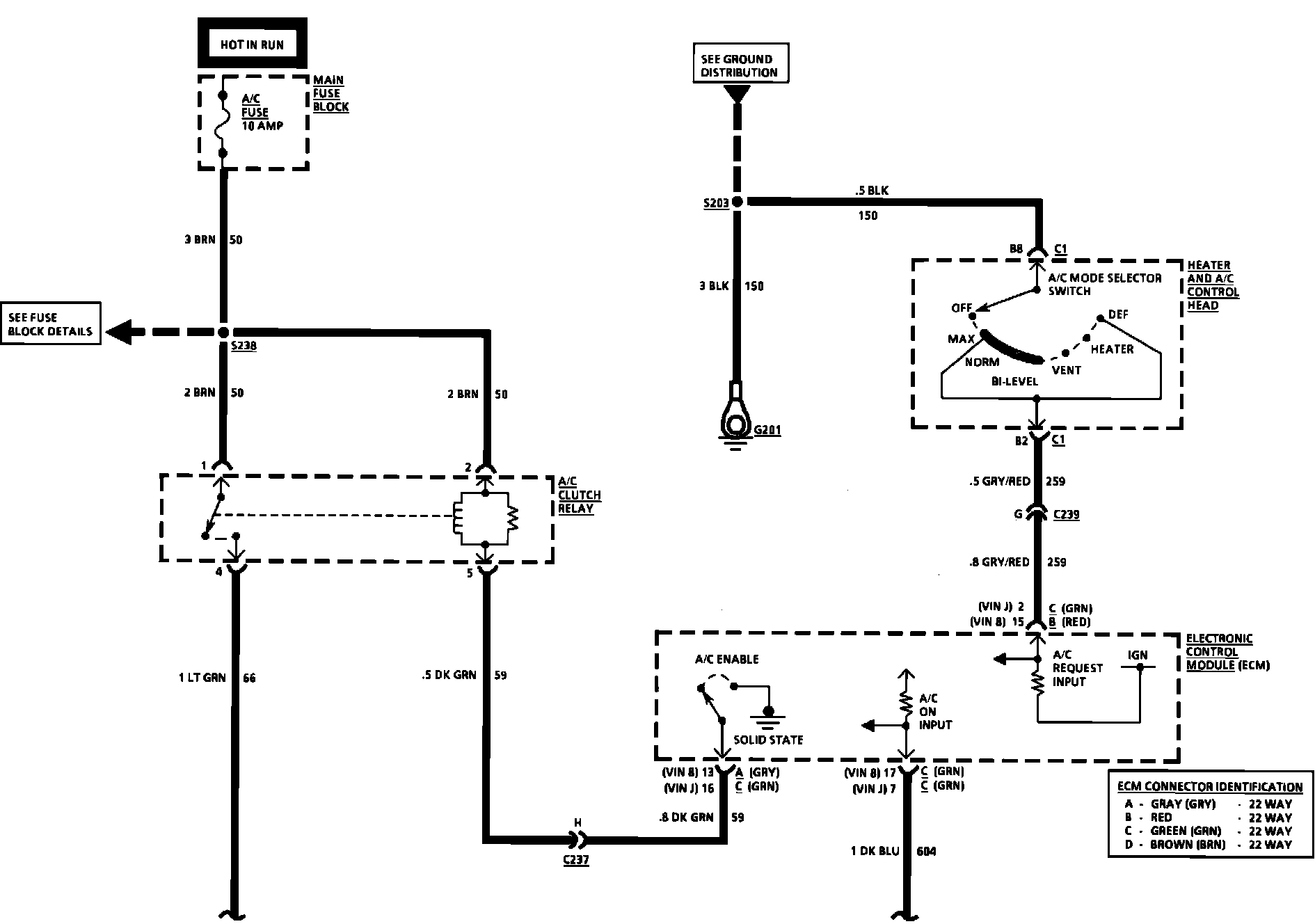

Compressor Controls - C60, Manual:

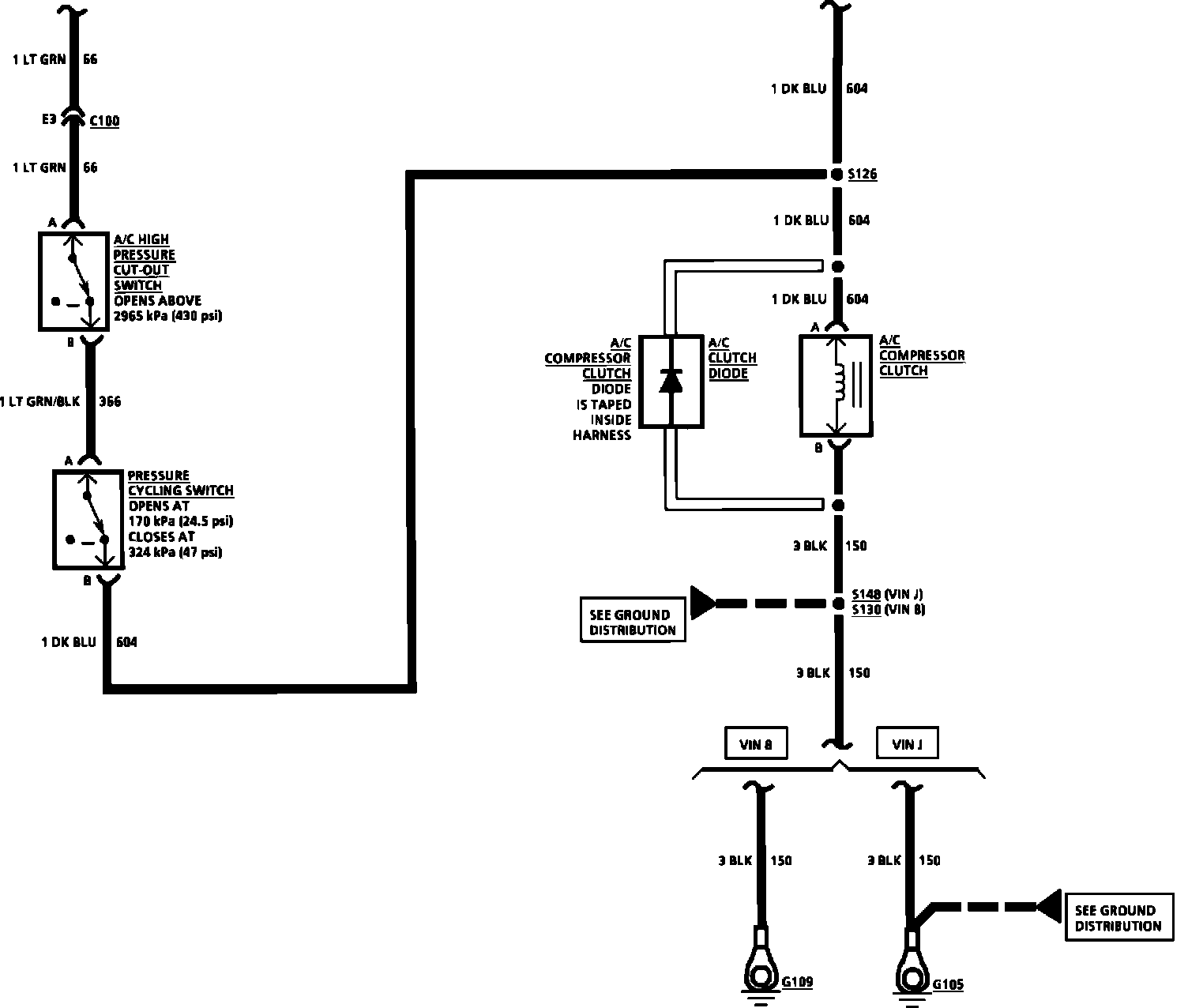

Compressor Controls - C60, Manual:
