Relay Box: Locations
Resistor Module:
Behind RH Side Of I/P, Near Shroud

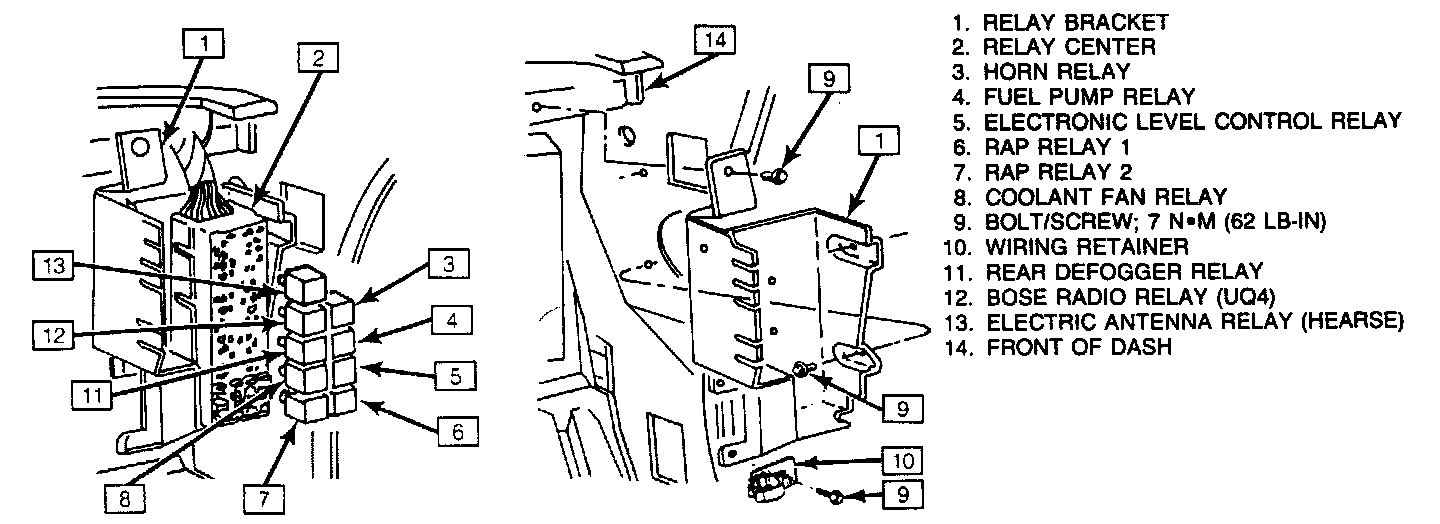

Relay Center:
Relay Center:

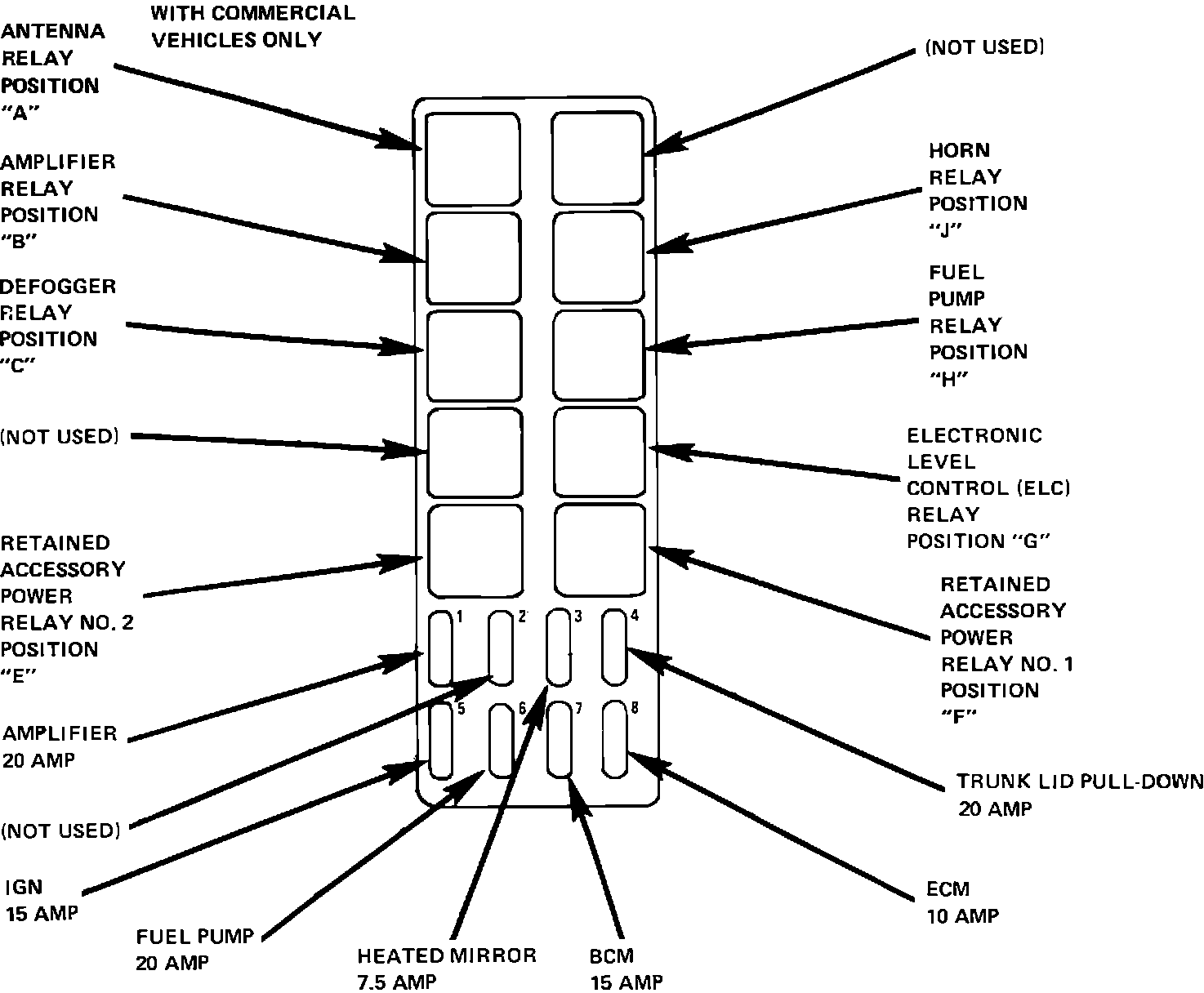

Relay Center Details
