Sequential Fuel Injection Wiring Circuit

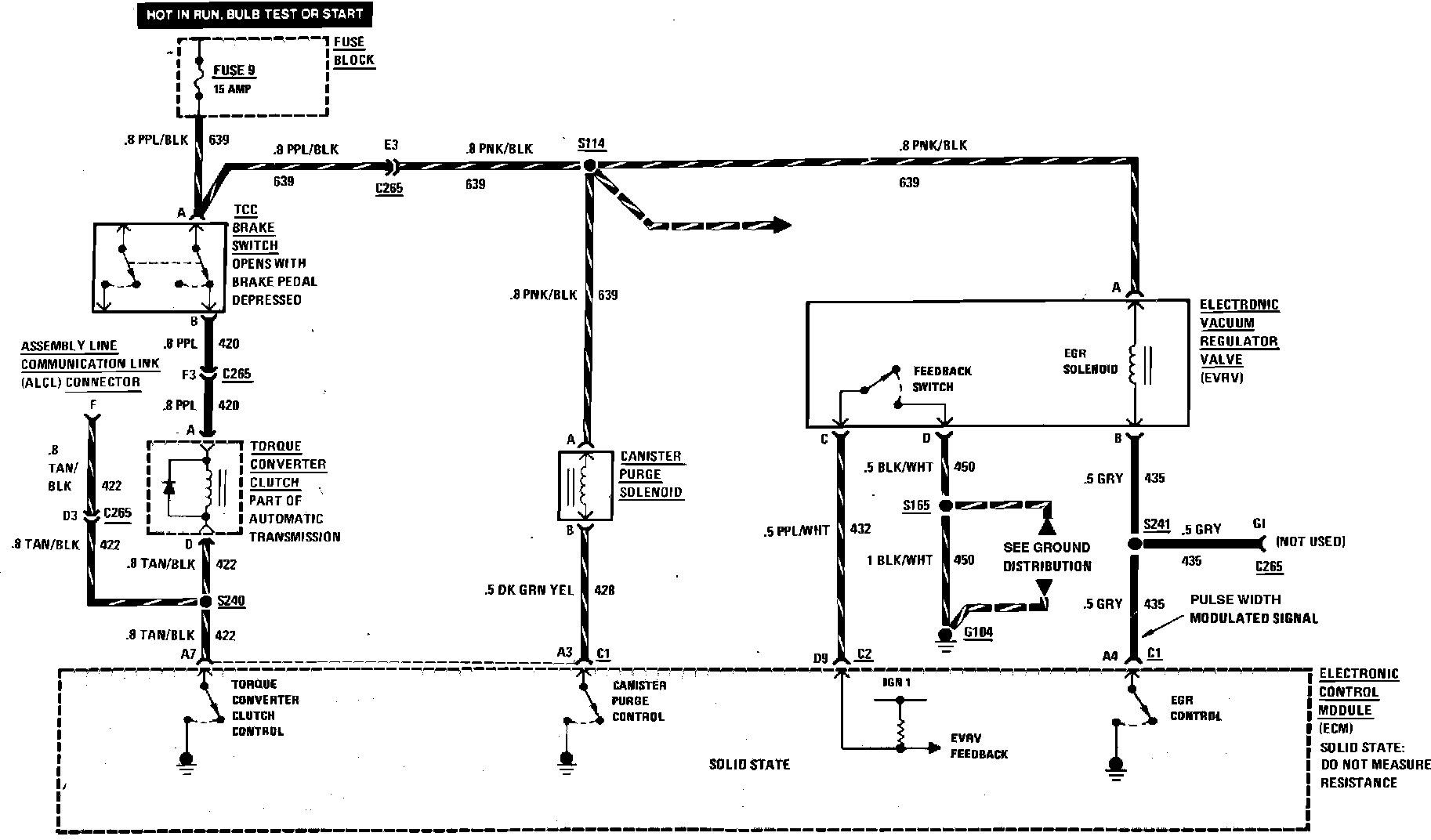

Sequential Fuel Injection A/C Controls, Emission Controls & Torque Converter Clutch Wiring Circuit:
