Electronic Throttle Control (EML)
>>
Control Module Terminal Designation
Control Module Terminal Designation

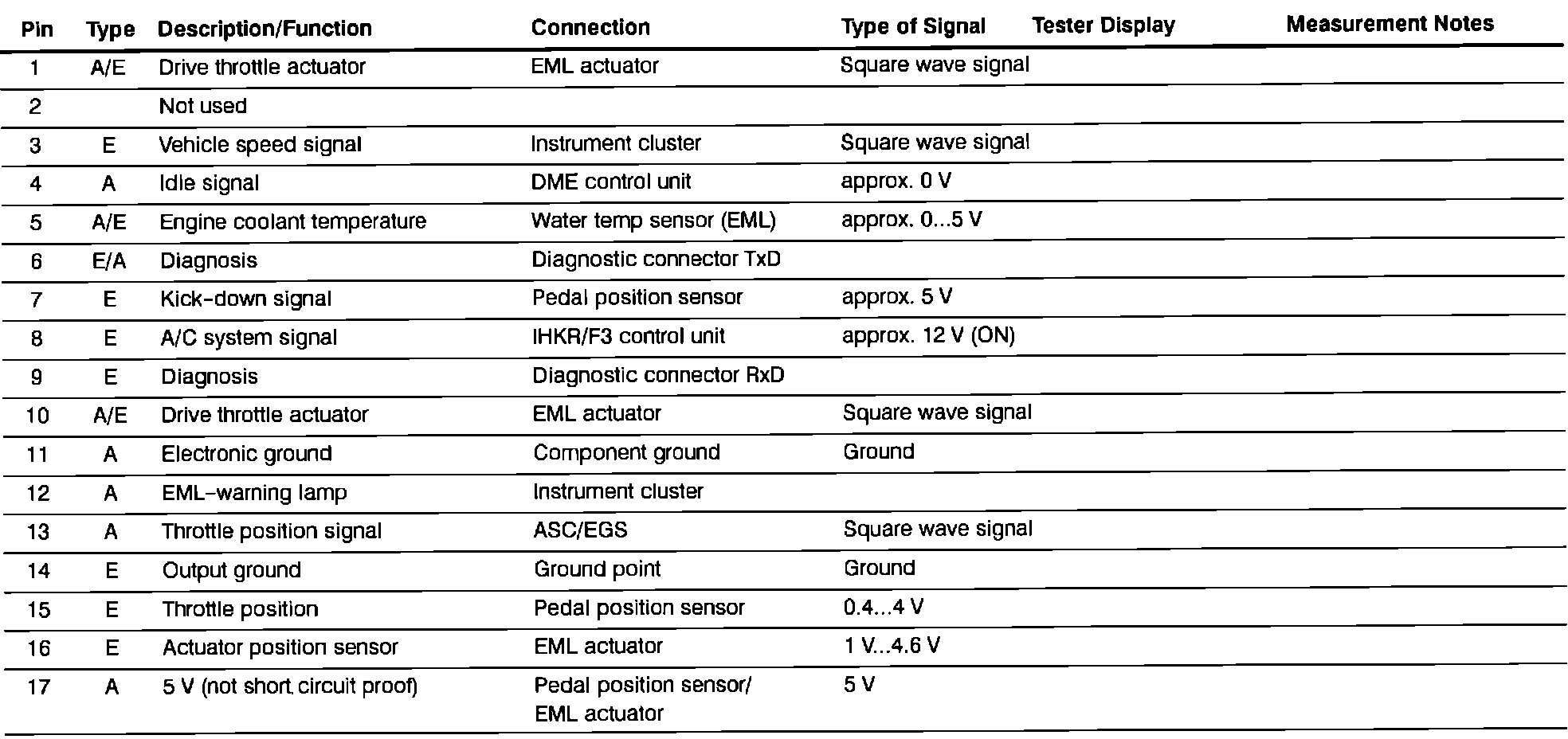

Electronic Throttle Control (EML) Pin Assignments (X6004): Pins 1 Thru 17:
Electronic Throttle Control (EML) Pin Assignments (X6004): Pins 18 Thru 35:
