Control Module Terminal Designations

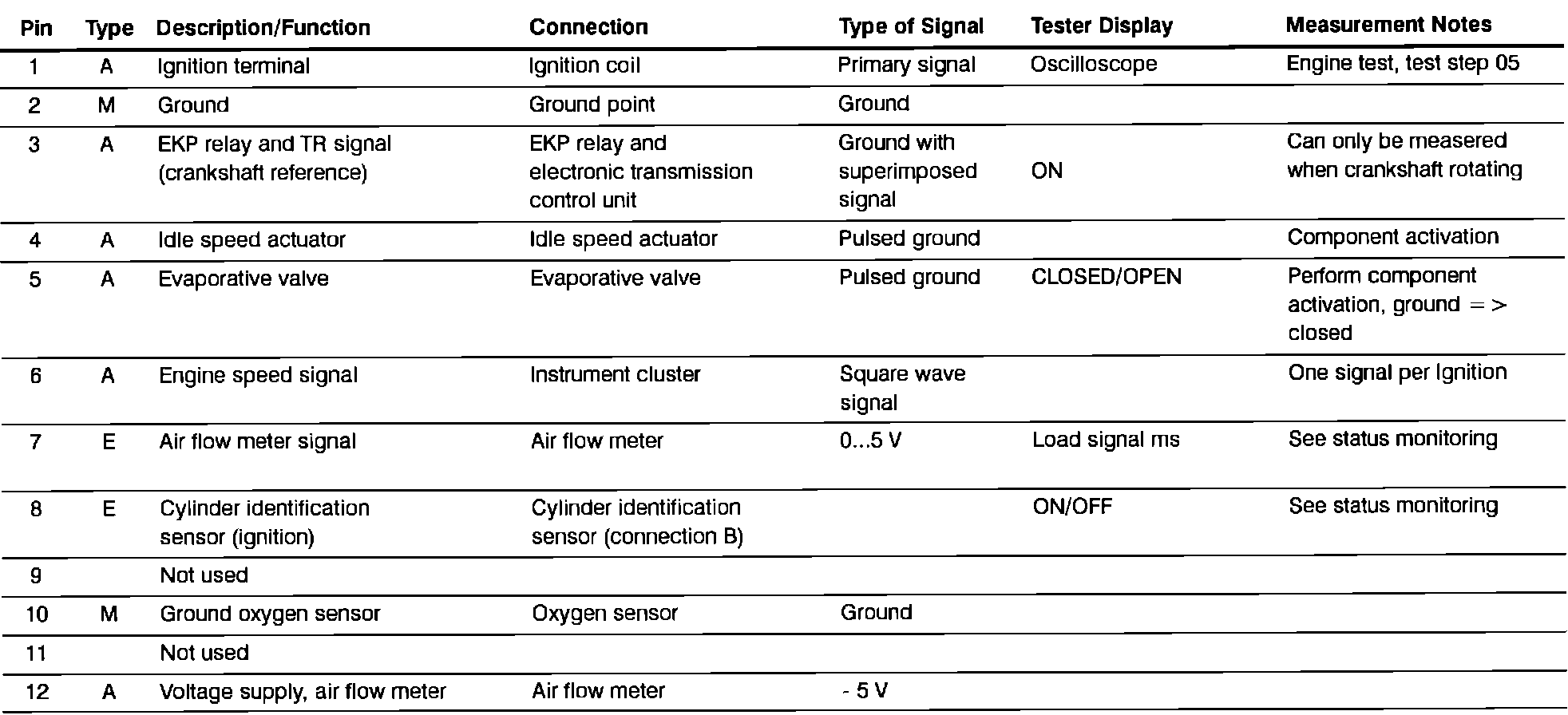

Engine Management (DME M1.3) Pin Assignments (X6000): Pins 1 Thru 12:

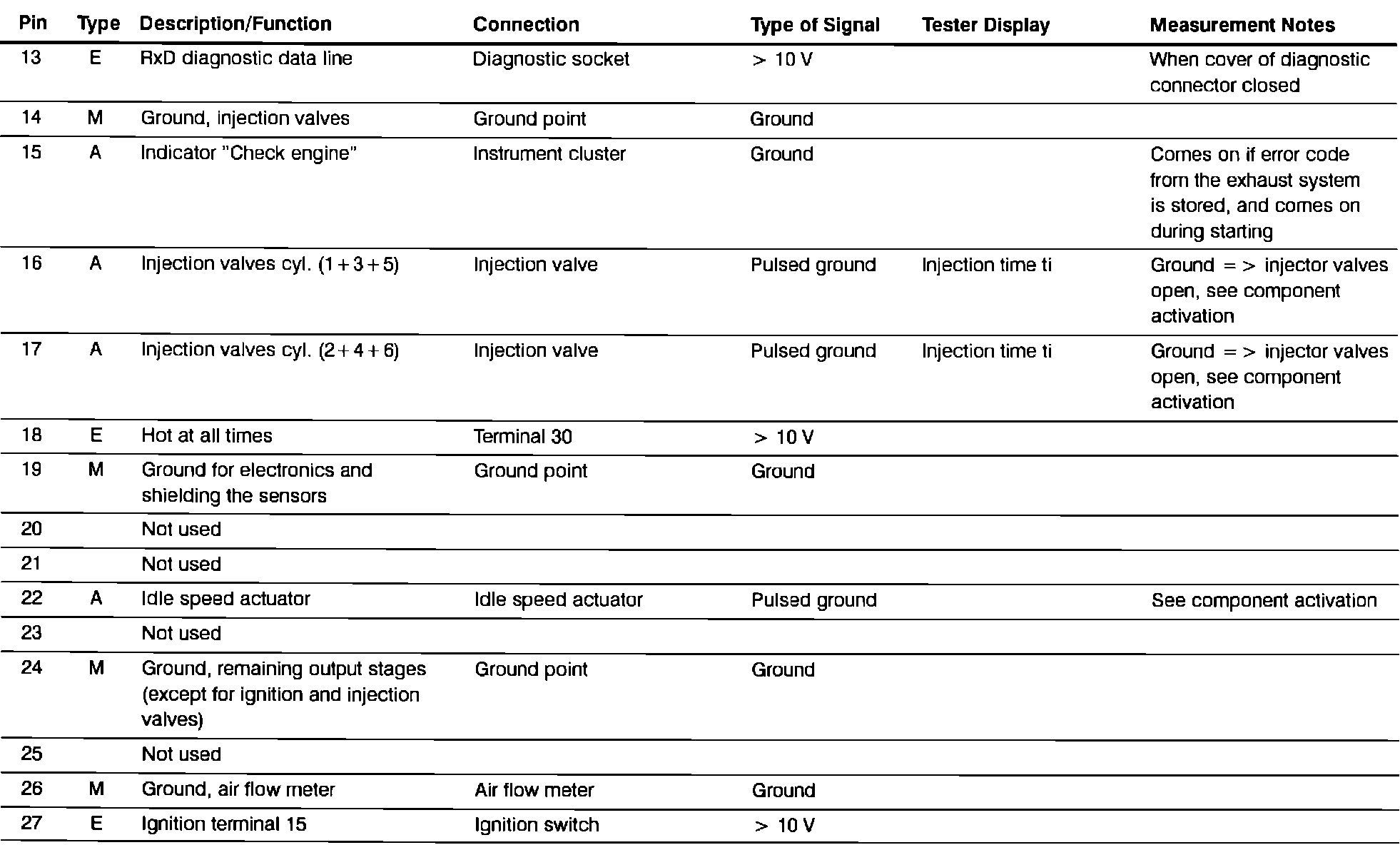

Engine Management (DME M1.3) Pin Assignments (X6000): Pins 13 Thru 27:

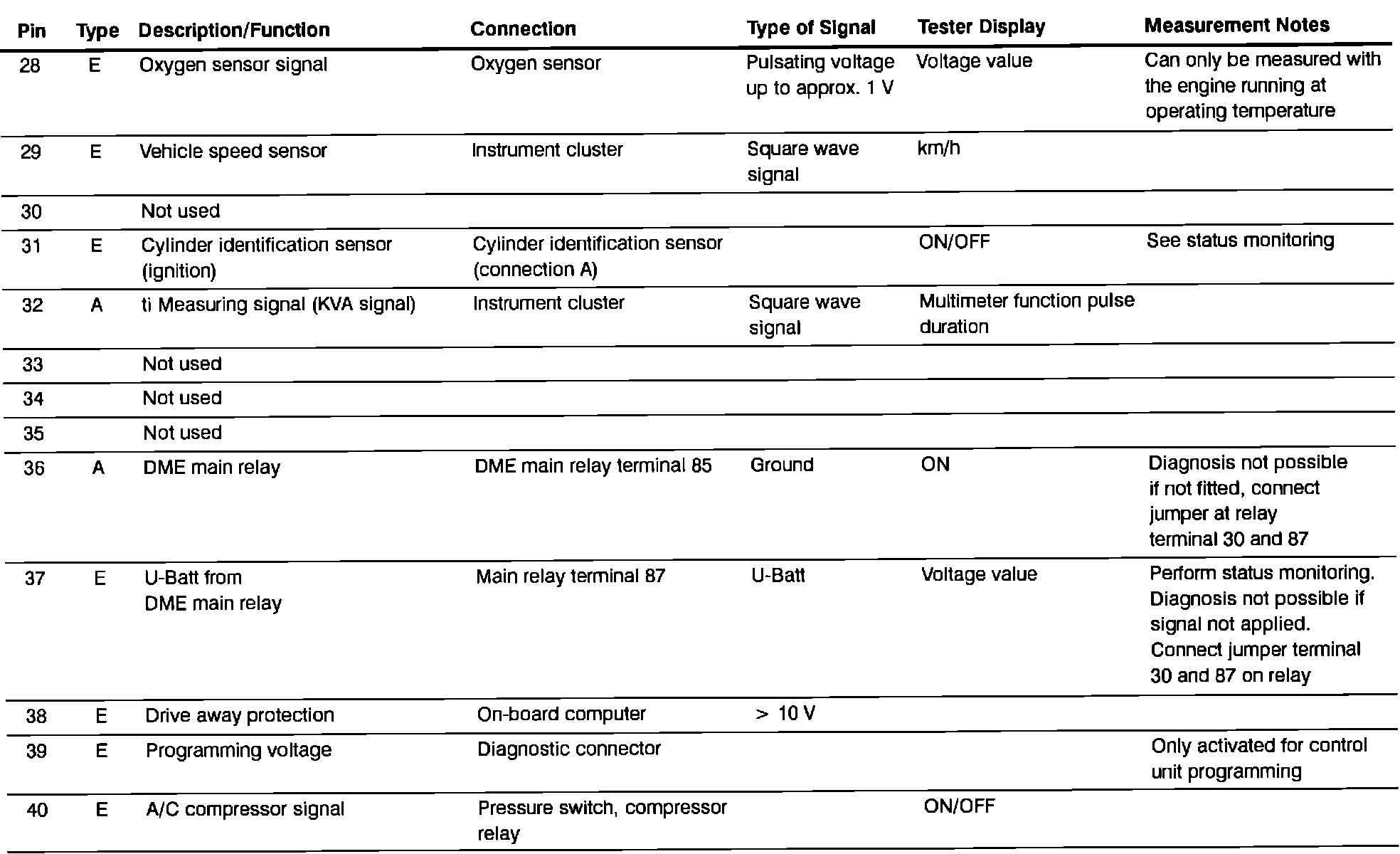

Engine Management (DME M1.3) Pin Assignments (X6000): Pins 28 Thru 40:

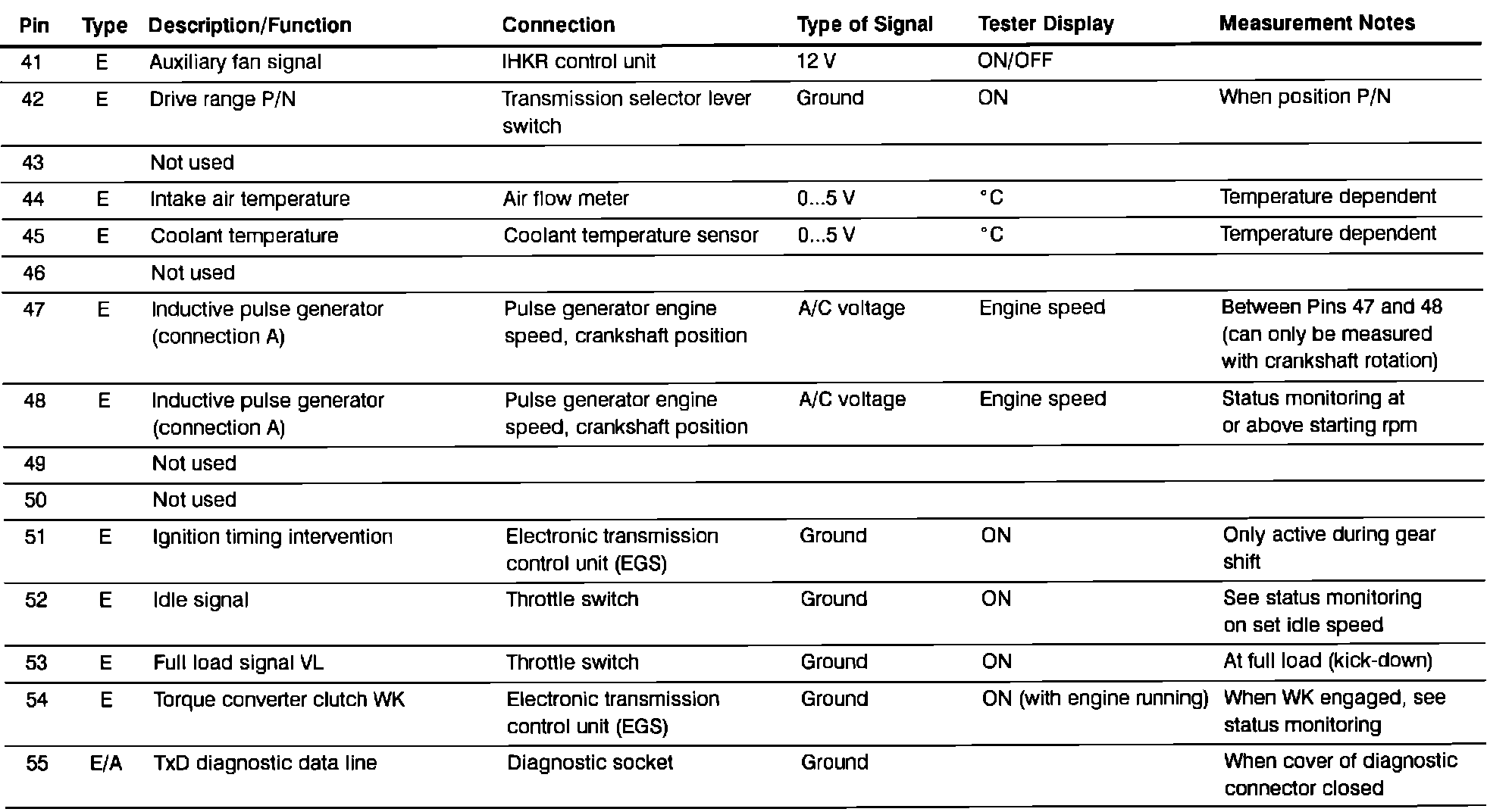

Engine Management (DME M1.3) Pin Assignments (X6000): Pins 41 Thru 55:
