Control Module Terminal Designations

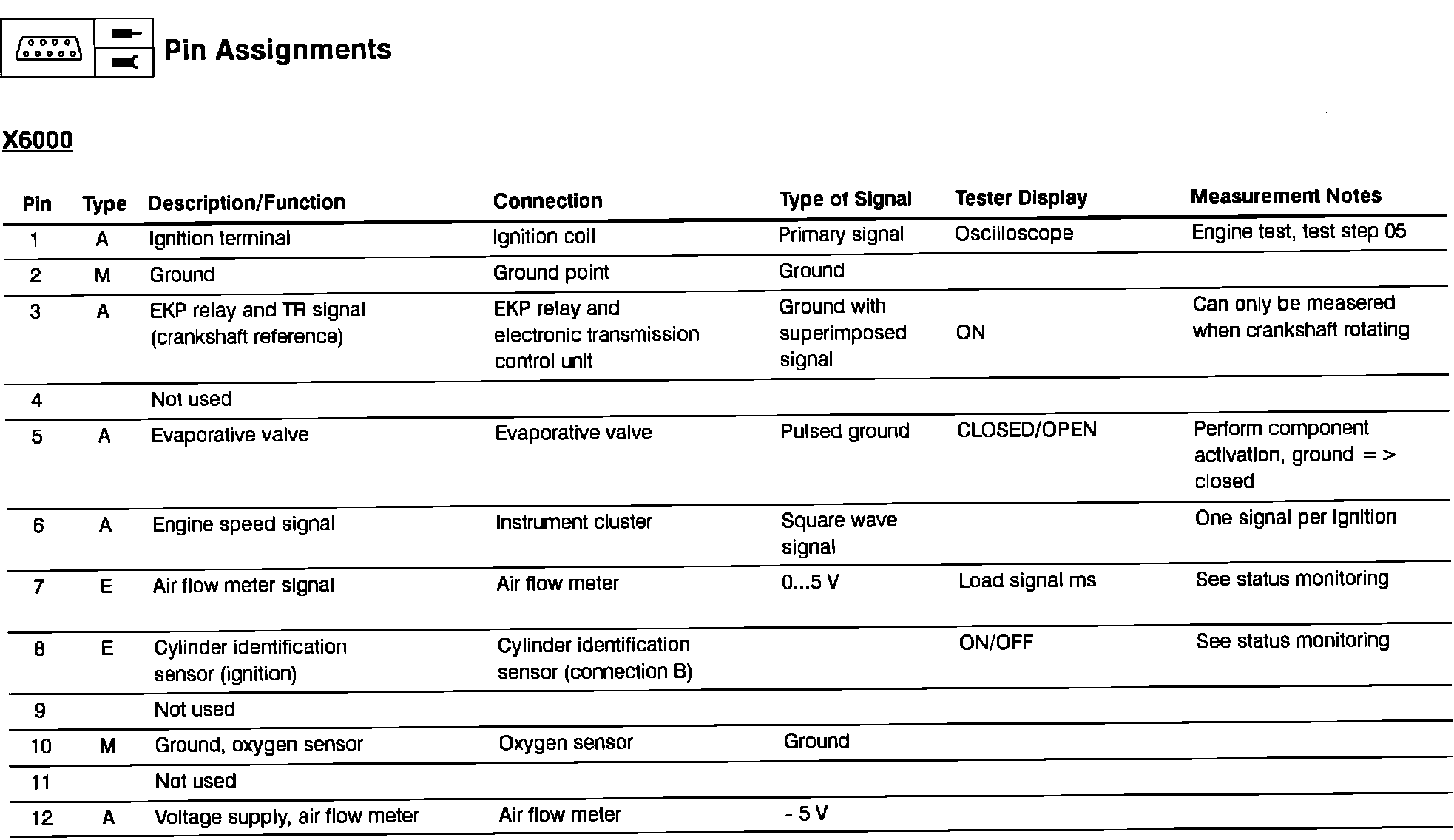

Engine Management (DME 1.3, With EML): Pin Assignments (X6000). Pins 1 Thru 12:

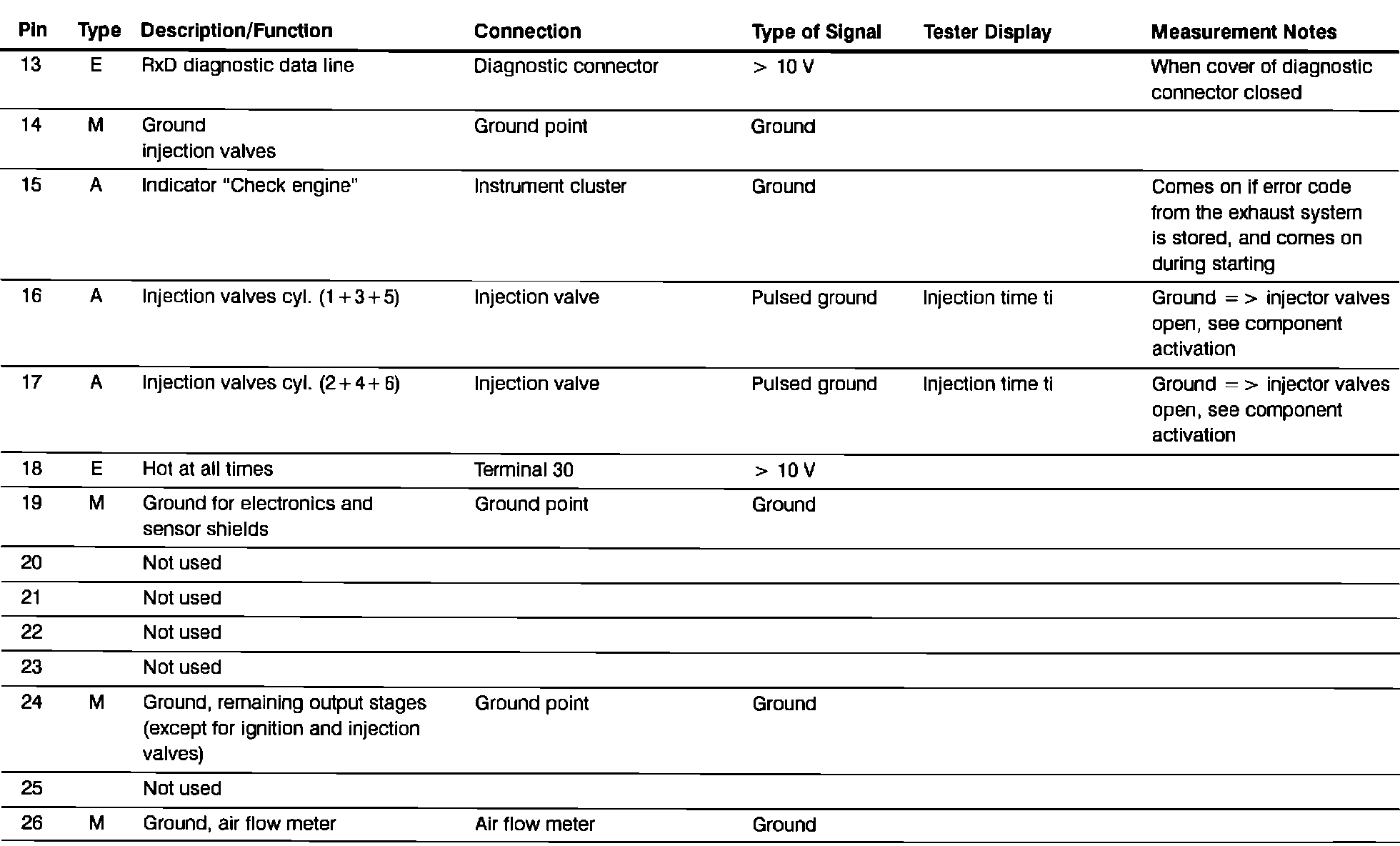

Engine Management (DME 1.3, With EML): Pin Assignments (X6000). Pins 13 Thru 26:

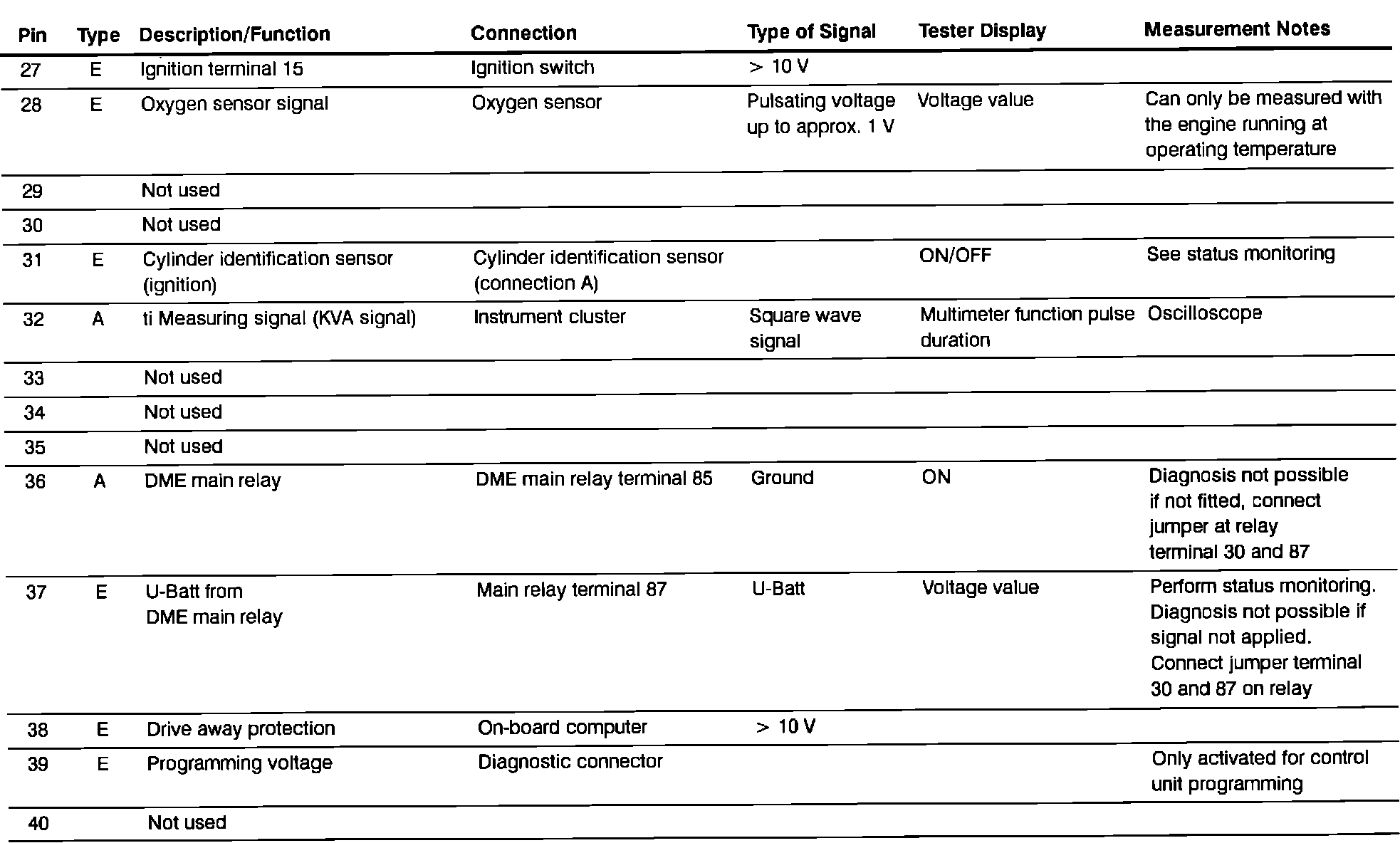

Engine Management (DME 1.3, With EML): Pin Assignments (X6000). Pins 27 Thru 40:

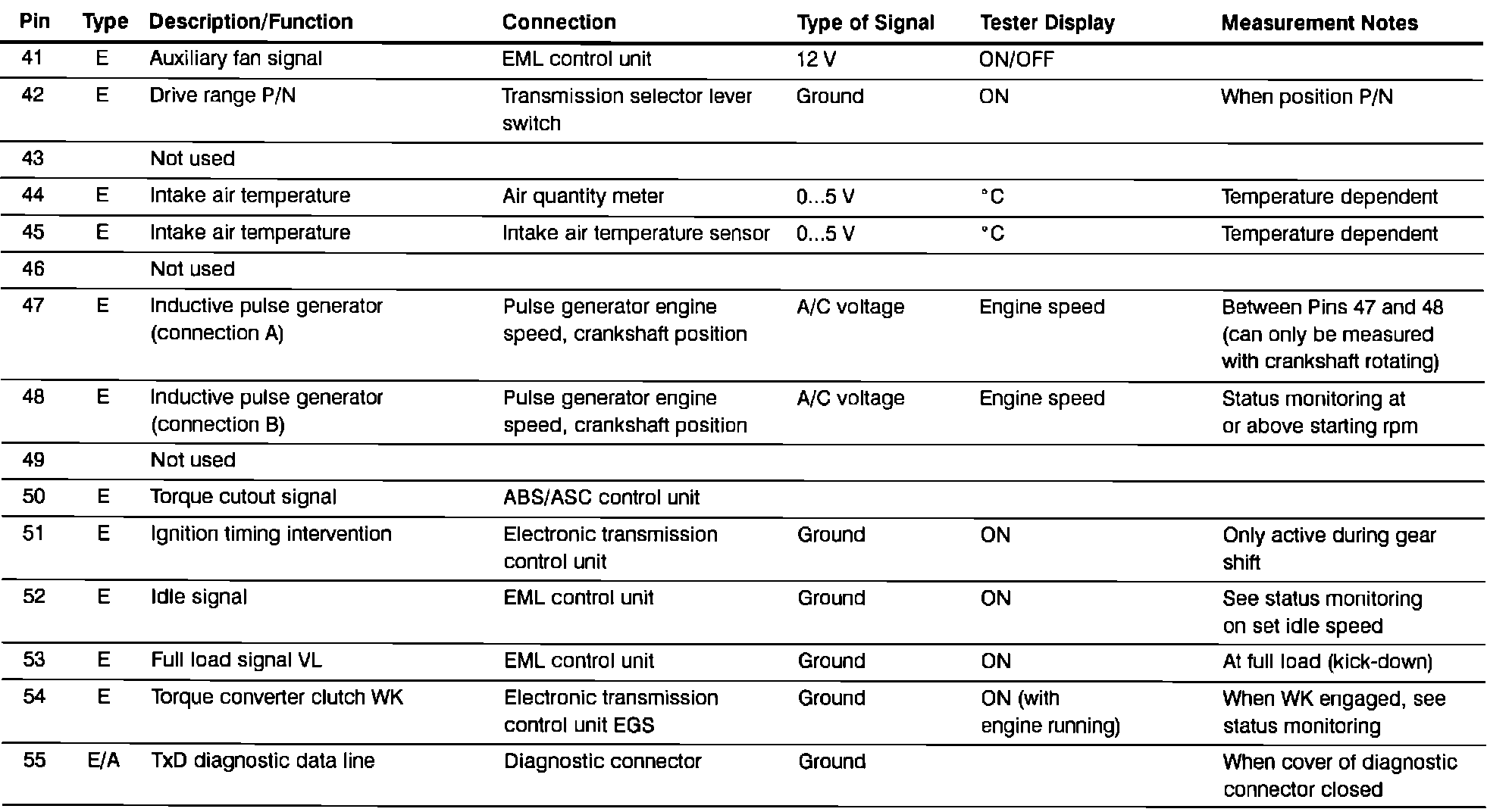

Engine Management (DME 1.3, With EML): Pin Assignments (X6000). Pins 41 Thru 55:
