Main Relay (Computer/Fuel System): Locations

Forward Of LH Front Shock Tower:

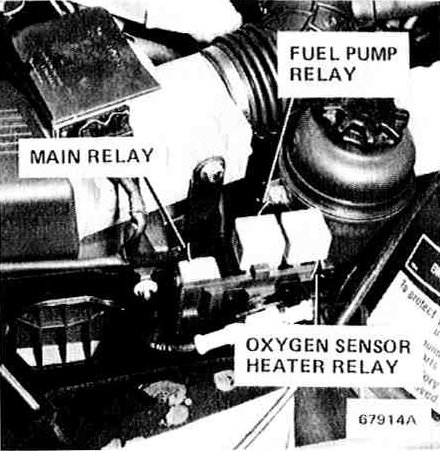

Component Location View:[1]:
Component ID: Main Relay
Location: On bracket in front of LH front shock tower
__________________________________
[1]: The position of the relays may be interchanged. Check relay wire colors for positive identification.
