Mass Air Flow Sensor 2 and Intake Air Temperature Sensor 2, Checking

Mass Air Flow Sensor 2 and Intake Air Temperature Sensor 2, Checking

The following procedure is used to diagnose the Mass Air Flow (MAF) Sensor 2 (G246) and Intake Air Temperature (IAT) Sensor 2 (G299) which is controlled by Engine Control Module (ECM) 2 (J624).

• The Intake Air Temperature (IAT) Sensor 2 (G299) is part of the Mass Air Flow (MAF) Sensor 2 (G246) and cannot be replaced separately

• Use only gold-plated terminals when servicing terminals in harness connector of Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299).

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• The Fuse (SC3) fuse OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position " P" or "N".

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Coolant Temperature at least 80° C.

• Ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

- Connect the scan tool.

- Start engine and let it run at idle.

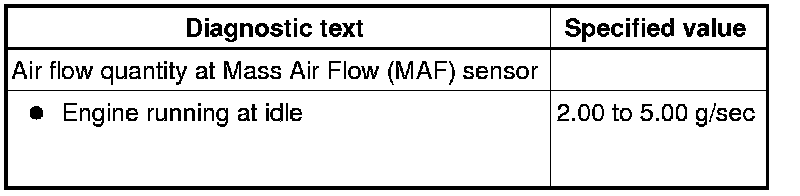

- Using the scan tool, Check the air flow quantity of the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299) at idle:





- End diagnosis and switch ignition off.

If the specified value was obtained, but the DTC memory has a DTC indicating a Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299) fault:

- Check the voltage supply of the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299).

If specified value was not obtained:

- Check the wiring of the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299).

Checking voltage supply

- Remove the engine compartment trim - 1 - and - 3 -.

- Remove the engine cover - 2 -.





- Disconnect the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299) electrical harness connector - 2 -.





- Crank the engine.

- Using a multimeter, check the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299)/Intake Air Temperature (IAT) Sensor (G42) electrical harness connector terminal 2 to engine Ground (GND) for voltage.





Specified value: battery voltage.

- Switch the ignition off.

If specified value was not obtained:

- Check the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299) electrical harness connector terminal 2 to the Engine Component Power Supply Relay (J757) socket 2/87 for an open circuit or a short circuit to Ground (GND).

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

If no malfunction is detected in the wiring and the voltage supply was OK:

Checking electrical circuit

If the manufacturers test box is being used. Perform the following step.

- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Engine Control Module (ECM) 2 (J624). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

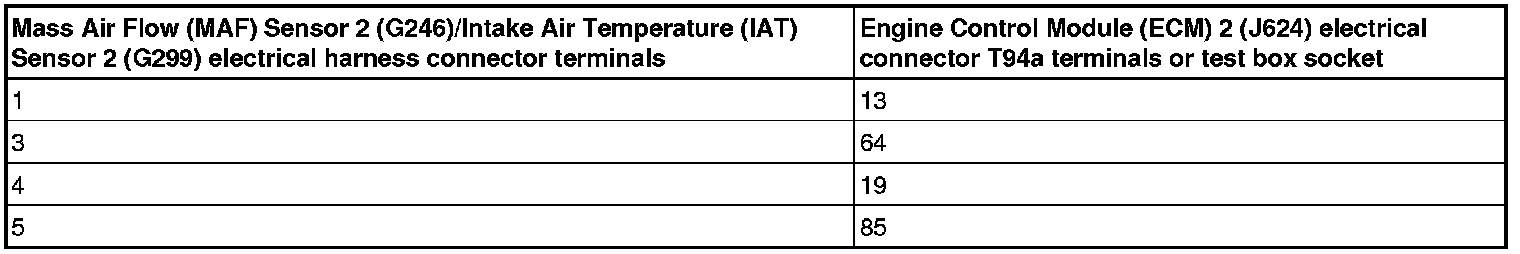

- Using a multimeter, check the Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299) electrical harness connector terminals to the Engine Control Module (ECM) 2 (J624) electrical harness connector T94a terminals for resistance.









Specified value: 1.5 ohms max.

If any of the specified values were not obtained:

- Check the wiring for an open circuit, a short circuit to each other, Battery (+), or Ground (GND).

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and if the voltage supply was OK:

- Replace Mass Air Flow (MAF) Sensor 2 (G246)/Intake Air Temperature (IAT) Sensor 2 (G299).

- Erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

- Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

- End diagnosis.

If the DTC returns and no malfunction is found in the wiring and voltage supply was OK:

- Replace the Engine Control Module (ECM) 2 (J624). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

Assembly is performed in the reverse order of the removal, note the following:

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Mode 03 - Read DTC Memory.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.

End of Diagnosis
